84FM Engine Wiring Harness (042777 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE549647	1	Wiring Harness	-
2	57M10825	4	Clamp	-
3	57M10230	1	Elec. Connector Accessory	-
3	57M9786	1	Elec. Connector Housing	-
4	57M9782	1	Elec. Connector Housing	-
4	57M10156	1	Elec. Connector Accessory	-
5	57M11335	1	Elec. Connector Accessory	-
5	57M9817	1	Elec. Connector Housing	-
5	57M9840	1	Elec. Connector Accessory	-
6	57M11334	1	Elec. Connector Accessory	-
6	57M9780	1	Elec. Connector Housing	-
6	57M9838	1	Elec. Connector Accessory	-
7	57M9780	1	Elec. Connector Housing	-
7	57M10156	1	Elec. Connector Accessory	-
8	57M9774	1	Elec. Connector Housing	-
8	57M10155	1	Elec. Connector Accessory	-
9	57M10840	3	Clamp	-
10	57M9773	1	Elec. Connector Housing	-
10	57M9837	1	Elec. Connector Accessory	-
11	57M10829	1	Clamp	-
12	57M10841	1	Clamp	-
13	57M9775	1	Elec. Connector Housing	-
13	57M9837	1	Elec. Connector Accessory	-
14	57M9817	1	Elec. Connector Housing	-
14	57M9840	1	Elec. Connector Accessory	-
15	57M9144	1	Elec. Connector Housing	-
16	57M10837	1	Clamp	-
17	57M10826	1	Clamp	-
18	57M8407	1	Elec. Connector Housing	-
19	57M9792	1	Elec. Connector Housing	-
19	57M9843	1	Elec. Connector Accessory	-
20	57M9781	2	Elec. Connector Housing	-
21	RE258807	7	Tie Band	-
22	57M9783	1	Elec. Connector Housing	-
22	57M10156	1	Elec. Connector Accessory	-
23	57M10947	3	Clamp	-
24	57M9838	1	Elec. Connector Accessory	-
25	57M9773	1	Elec. Connector Housing	-
25	57M9773	1	Elec. Connector Housing	-
26	57M10839	1	Clamp	-
27	RE557644	1	Wiring Harness	-
28	57M9773	1	Elec. Connector Housing	-
29	R522041	5	Block Clamp	-
30	57M10948	2	Clamp	-
31	57M9775	2	Elec. Connector Housing	-
32	57M9837	1	Elec. Connector Accessory	-
32	57M9775	1	Elec. Connector Housing	-
33	57M9940	1	Elec. Connector Accessory	-
34	57M9842	1	Elec. Connector Accessory	-
35	19M7774	3	Screw	M6 X 12
36	14M7298	3	Flange Nut	M8
37	R529642	1	Bracket	-
38	19M7866	7	Screw	M8 X 20
39	RE548052	1	Bracket	-
40	R531865	1	Bracket	-
41	19M10036	1	Screw	M14 X 80
42	19M7784	1	Screw	M10 X 20
43	RE548660	1	Bracket	ORDER RE567611
43	RE567611	1	Bracket	-
44	R531602	1	Bushing	-
45	RE546720	1	Bracket	-
46	R529641	1	Bracket	-
47	R530376	1	Bracket	-
48	19M7861	1	Screw	M6 X 10
49	R531867	1	Bracket	-
50	R531632	1	Bracket	-
51	RE524730	18	Cap Screw	-
52	R531854	1	Bracket	-
53	M84971	5	Nut	-
54	19M8425	1	Cap Screw	M6 X 16
55	28H3385	2	Bushing	(Not Illustrated) 0.423" X 0.675" X 1/2"
56	19M7868	2	Screw	(Not Illustrated) M8 X 30

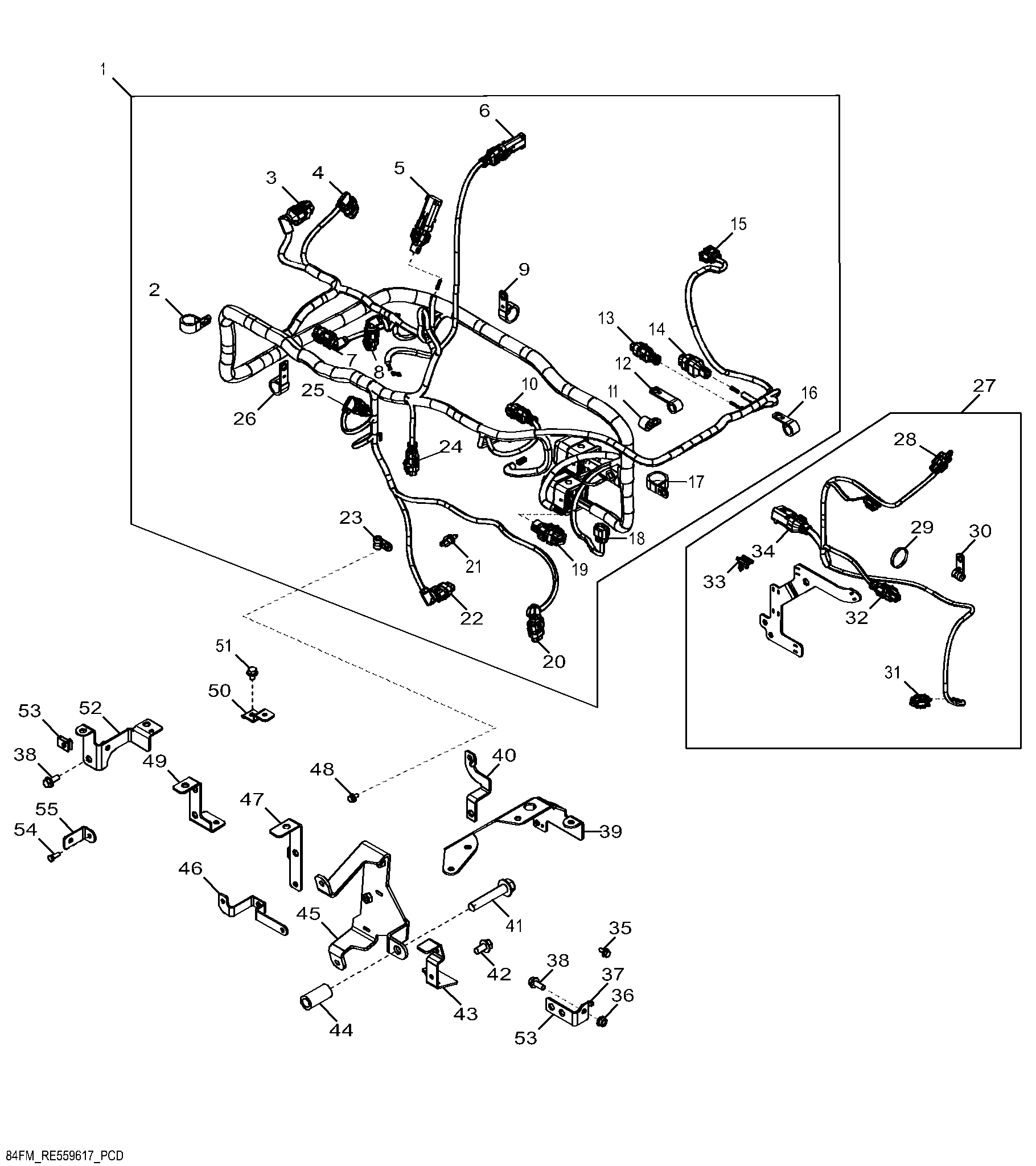

84FM Engine Wiring Harness (042777 - )

Нет текстового описания
