Открытый узел

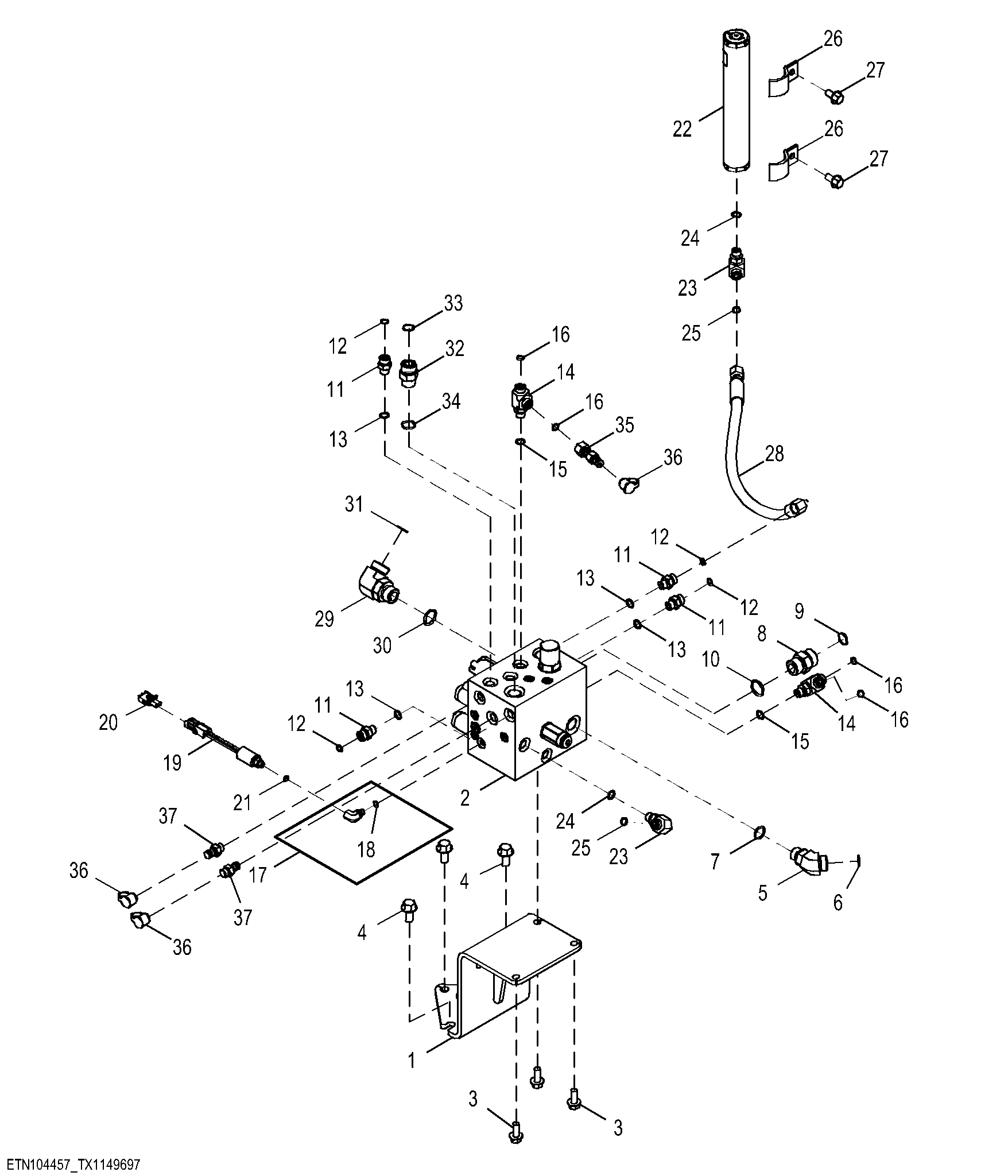

Main Hydraulic Pump Manifold, Rear Differential

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT448876	1	Bracket	-
2	AT451451	1	Manifold	Pressure Regulator Valve (PRV) Components Listed On Seperate Page, SUB FOR AT352551
3	19M7785	3	Screw	M10 X 25
4	19M7788	3	Screw	M12 X 25
5	38H1047	1	Elbow Fitting	-
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
8	38H1163	1	Adapter Fitting	-
9	T77858	1	O-Ring	-
10	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	38H1160	4	Adapter Fitting	-
12	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	38H1023	2	Tee Fitting	-
15	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	AT358775	1	Fitting	-
18	R26287	1	O-Ring	7.645 X 1.626 mm (0.301" X 0.064")
19	AT223538	1	Pressure Switch	Park Brake Pressure Switch, INCLUDES R78053
19	R78053	1	Electrical Connector Assy	-
19	RE12363	1	Electrical Connector Assy	-
20	RE12363	1	Electrical Connector Assy	-
21	R26287	1	O-Ring	7.645 X 1.626 mm (0.301" X 0.064")
22	AT225574	1	Hydraulic Accumulator	INCLUDES AT376347
22	T26209	1	Ring	-
22	T290050	1	Label	Accumulator Label Russian
22	T215217	1	Label	Accumulator Label Spanish
22	T180944	1	Label	Accumulator Label English
22	AT196760	1	Valve Kit	Gas Valve
22	AT376347	1	Accumulator Kit	INCLUDES AT196760, T180944, T26209, T215216, T215217, AND T290050
22	T215216	1	Label	Accumulator Label French
23	38H1004	2	Elbow Fitting	-
24	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	R68904	2	Clamp	-
27	19M7784	2	Screw	M10 X 20
28	AT341166	1	Hydraulic Hose	Fabricate
29	38H1007	1	Elbow Fitting	-
30	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
31	T77858	1	O-Ring	-
32	38H1162	1	Adapter Fitting	-
33	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
34	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
35	RE60701	1	Diagnostic Coupling	-
36	R77175	1	Cover	-
37	AH125760	2	Hyd. Quick-Connect Coupler	-

Main Hydraulic Pump Manifold, Rear Differential

Нет текстового описания
