Main Hydraulic Pump Manifold (Engine 6068HDW74 -RE556457)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT448876	1	Bracket	-
2	AT451450	1	Manifold	Pressure Regulator Valve (PRV) Components Listed On Seperate Page, SUB FOR AT441183
3	19M7785	3	Screw	M10 X 25
4	19M7788	3	Screw	M12 X 25
5	38H1047	1	Elbow Fitting	-
6	T77932	1	O-Ring	-
7	R26906	1	O-Ring	-
8	38H1163	1	Adapter Fitting	-
9	T77858	1	O-Ring	-
10	U12547	1	O-Ring	-
11	38H1160	4	Adapter Fitting	-
12	T77613	4	O-Ring	-
13	R26448	4	O-Ring	-
14	38H1023	2	Tee Fitting	-
15	R26448	2	O-Ring	-
16	T77613	4	O-Ring	-
17	AT358775	1	Fitting	-
18	R26287	1	O-Ring	7.645 X 1.626 mm (0.301" X 0.064")
19	AT223538	1	Pressure Switch	Park Brake Pressure Switch
19	R78053	1	Electrical Connector Assy	-
19	RE12363	1	Electrical Connector Assy	-
20	R26287	1	O-Ring	7.645 X 1.626 mm (0.301" X 0.064")
21	AT225574	1	Hydraulic Accumulator	INCLUDES AT376347
21	T26209	1	Ring	-
21	T290050	1	Label	Accumulator Label Russian
21	T215217	1	Label	Accumulator Label Spanish
21	T180944	1	Label	Accumulator Label English
21	AT196760	1	Valve Kit	Gas Valve
21	AT376347	1	Accumulator Kit	INCLUDES AT196760, T180944, T26209, T215216, T215217AND T290050
21	T215216	1	Label	Accumulator Label French
22	38H1004	2	Elbow Fitting	-
23	R26448	2	O-Ring	-
24	T77613	2	O-Ring	-
25	R68904	2	Clamp	-
26	19M7784	2	Screw	M10 X 20
27	AT341166	1	Hydraulic Hose	Fabricate
28	38H1007	1	Elbow Fitting	-
29	U12547	1	O-Ring	-
30	T77858	1	O-Ring	-
31	38H1162	1	Adapter Fitting	-
32	T77932	1	O-Ring	-
33	R26906	1	O-Ring	-
34	RE60701	1	Diagnostic Coupling	-
35	R77175	3	Cover	-
36	AH125760	2	Hyd. Quick-Connect Coupler	-

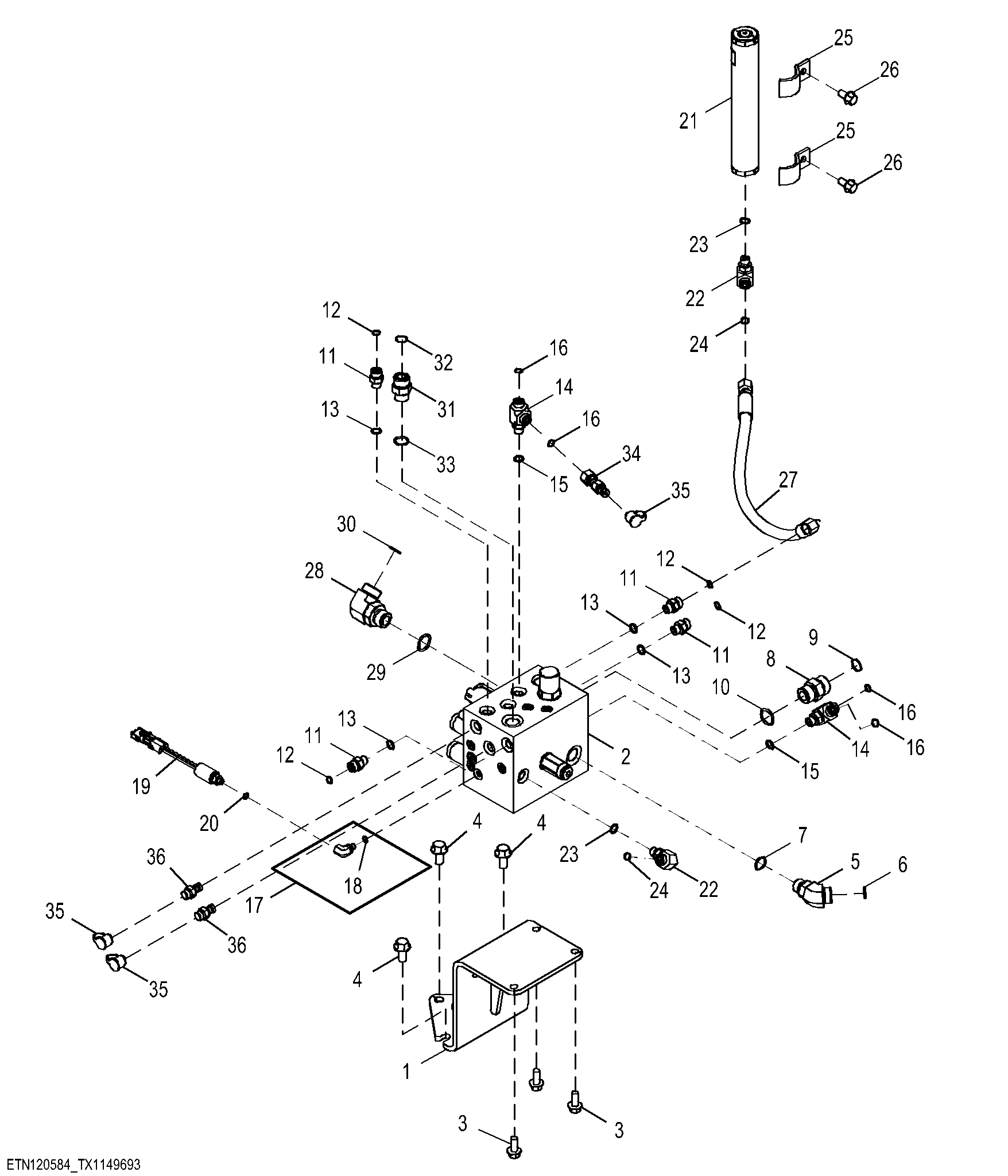

Main Hydraulic Pump Manifold (Engine 6068HDW74 -RE556457)
