Main Hydraulic Pump Manifold (Engine 6068HBZ06 -DZ109561)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT448876	1	Bracket	-
2	AT409931	1	Manifold	Main Hydraulic Pump Manifold Components on Seperate Page
3	AT358775	1	Fitting	-
4	R26287	1	O-Ring	-
5	AT223538	1	Pressure Switch	Park Brake Pressure Switch
5	R78053	1	Electrical Connector Assy	-
5	RE12363	1	Electrical Connector Assy	-
6	R26287	1	O-Ring	-
7	R68904	2	Clamp	-
8	T26209	2	Ring	-
8	T290050	1	Label	Russian
8	T215217	1	Label	Spanish
8	T215216	1	Label	French
8	T180944	1	Label	Accumulator - English
8	AT196760	1	Valve Kit	INCLUDES (2) T26209
8	AT376347	1	Accumulator Kit	INCLUDES AT196760, T180944, T215216, T215217 AND T290050
8	AT225574	1	Hydraulic Accumulator	INCLUDES AT376347
9	AT341166	1	Hydraulic Hose	Fabricate
10	19M7784	2	Screw	M10 X 20
11	19M7785	3	Screw	M10 X 25
12	19M7788	3	Screw	M12 X 25
13	38H1004	2	Elbow Fitting	-
14	R26448	2	O-Ring	-
15	T77613	2	O-Ring	-
16	38H1007	1	Elbow Fitting	-
17	U12547	1	O-Ring	-
18	T77858	1	O-Ring	-
19	38H1160	4	Adapter Fitting	-
20	T77613	4	O-Ring	-
21	R26448	4	O-Ring	-
22	38H1162	1	Adapter Fitting	-
23	T77932	1	O-Ring	-
24	R26906	1	O-Ring	-
25	38H1163	1	Adapter Fitting	-
26	T77858	1	O-Ring	-
27	U12547	1	O-Ring	-
28	38H1047	1	Elbow Fitting	-
29	T77932	1	O-Ring	-
30	R26906	1	O-Ring	-
31	38H1023	2	Tee Fitting	-
32	R26448	2	O-Ring	-
33	T77613	4	O-Ring	-
34	AT442924	2	Pressure Sensor	Hydraulic System Pressure Sensor
35	RE60701	1	Diagnostic Coupling	-
36	R77175	1	Cover	-

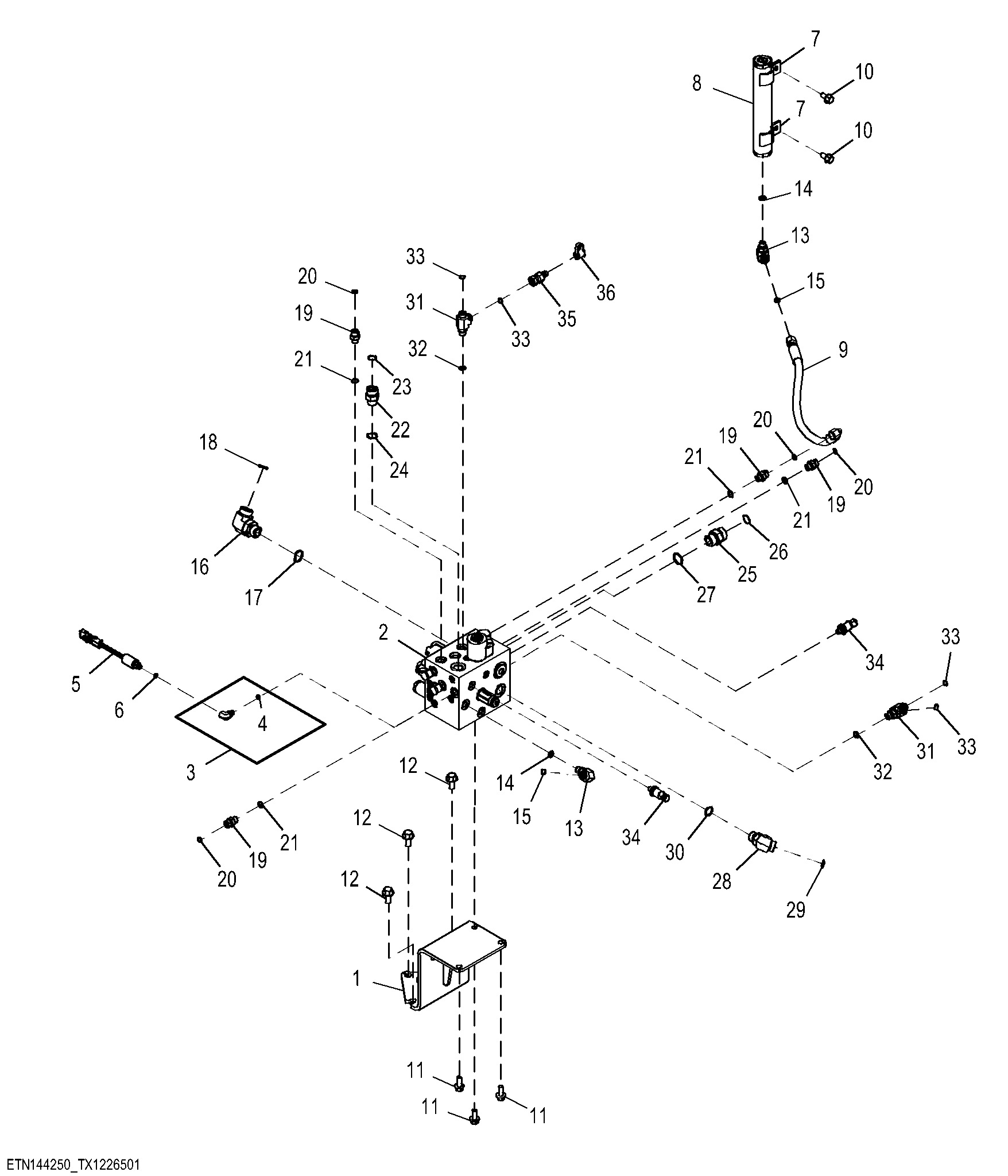

Main Hydraulic Pump Manifold (Engine 6068HBZ06 -DZ109561)
