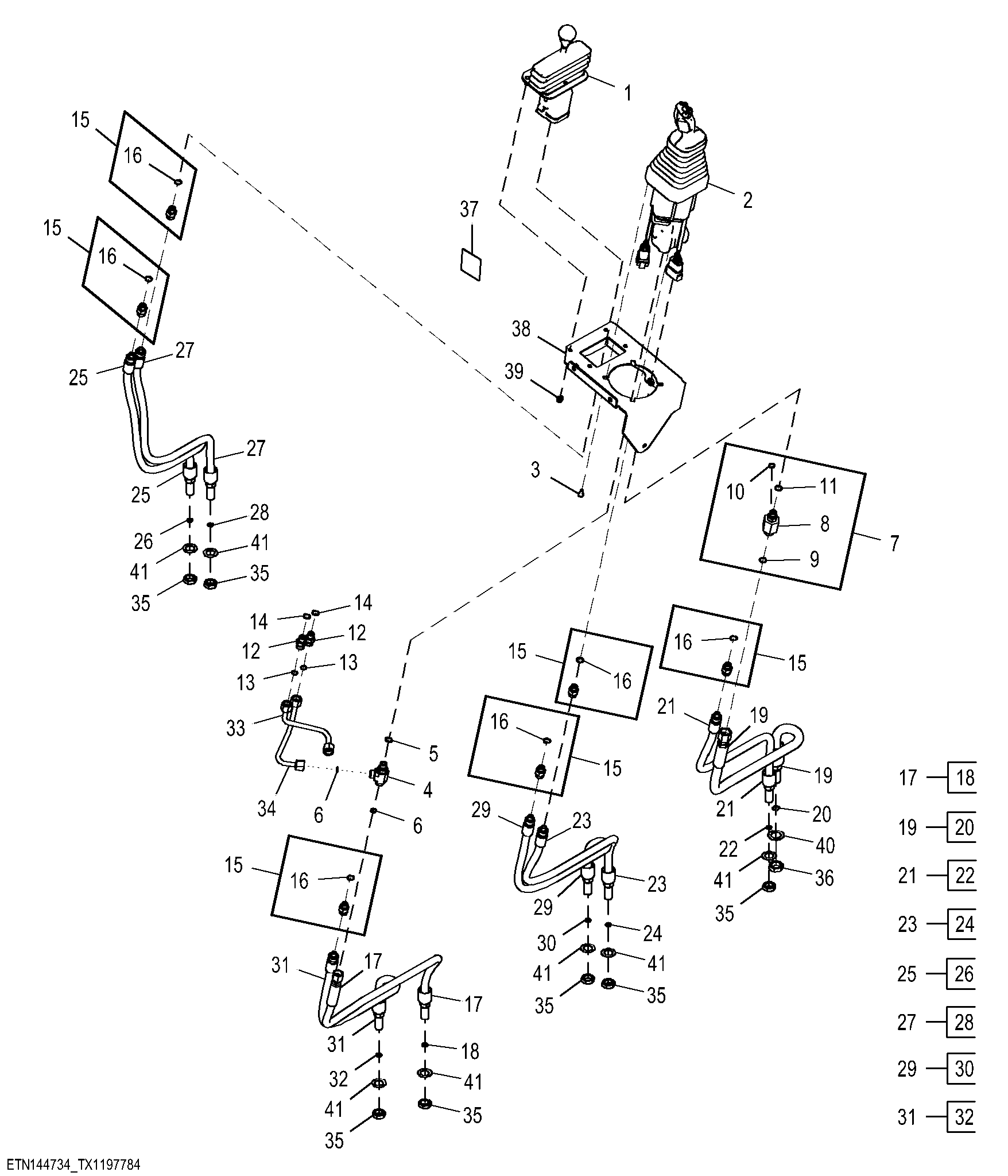

Joystick Pilot Controller with FNR Switch and Auxiliary Control Lever

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Control Lever Components Listed On Separate Page
2	AT362746	1	Hydr./Pilot Control Valve	Joystick Controller With Forward Neutral Reverse (FNR) Components Listed On Separate Page, ORDER AT488662
2	AT488662	1	Hydr./Pilot Control Valve	-
3	19M9831	4	Screw	M6 X 16
4	38H1023	1	Tee Fitting	-
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	61H1642	1	Adapter Fitting	NLA, ORDER 38H1642, T77857, AND R26448
8	38H1642	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	38H1160	2	Adapter Fitting	-
13	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	62H1001	6	Adapter Fitting	SUB FOR 63H1001
16	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	AT344124	1	Hydraulic Hose	Fabricate
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	AT363800	1	Hydraulic Hose	Fabricate
20	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
21	AT336507	1	Hydraulic Hose	Fabricate
22	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	AT336507	1	Hydraulic Hose	Fabricate
24	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	AT336507	1	Hydraulic Hose	Fabricate
26	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	AT336507	1	Hydraulic Hose	Fabricate
28	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
29	AT336507	1	Hydraulic Hose	Fabricate
30	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
31	AT336507	1	Hydraulic Hose	Fabricate
32	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
33	AT342616	1	Oil Line	-
33	38H1353	2	Tube Nut	-
34	AT342617	1	Oil Line	-
34	38H1353	2	Tube Nut	-
35	T81029	7	Nut	-
36	T78716	1	Nut	-
37	T197182	1	Label	Joystick Controls With Forward Neutral Reverse (FNR)
38	AT341527	1	Plate	-
39	14M7397	4	Lock Nut	M6
40	12H328	1	Lock Washer	7/8"
41	12H327	7	Lock Washer	3/4"

Joystick Pilot Controller with FNR Switch and Auxiliary Control Lever

Нет текстового описания
