Открытый узел

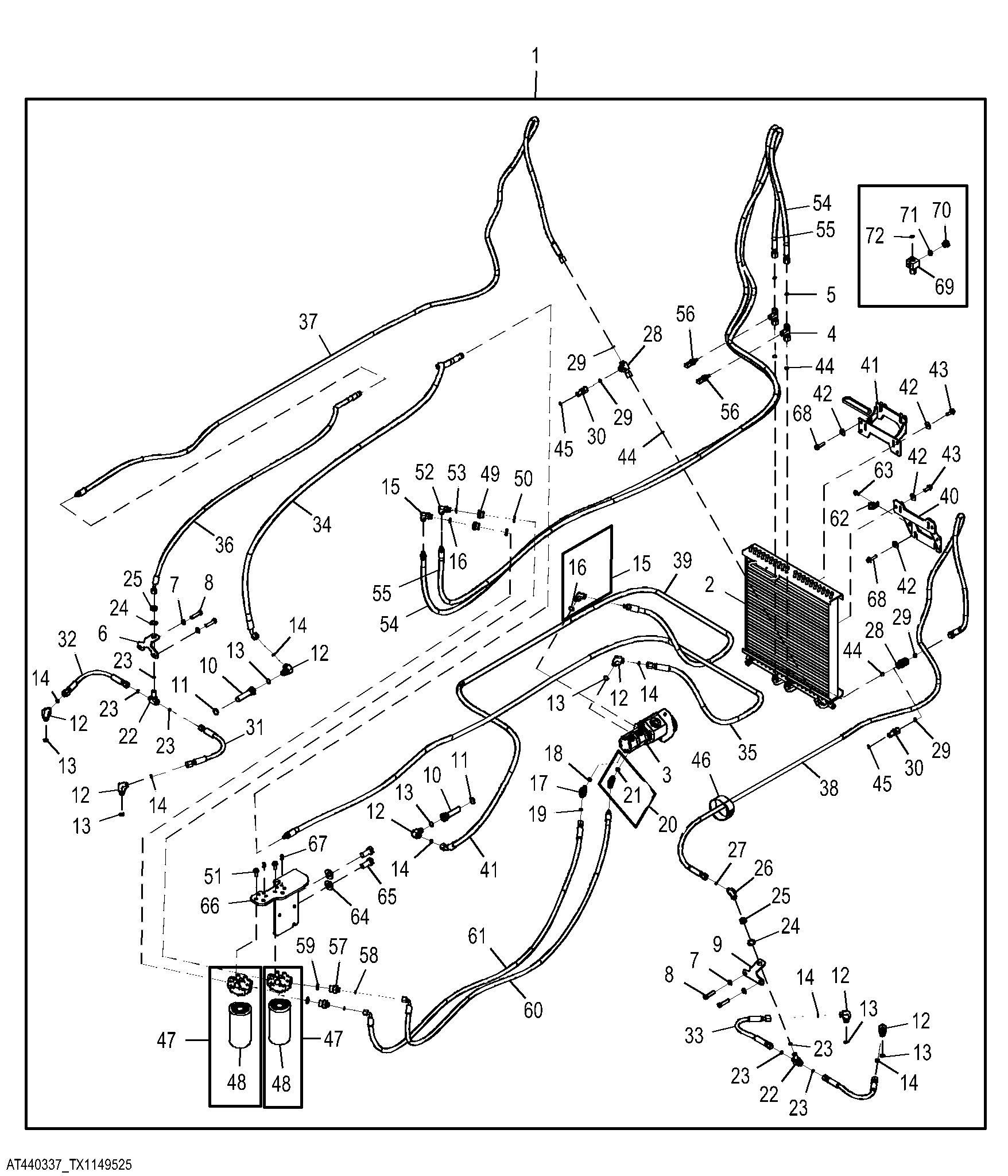

Axle Cooling and Filtration System Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT440337	1	Field Installation Kit	Whole Goods
2	AT330592	1	Oil Cooler	-
3	AT324289	1	Oil Pump	Fan Drive with Axle Pump
3	AT316467	1	Oil Pump	NLA, ORDER AT324289, AT346051 AND AT318789
3	AT318789	1	Seal Kit	-
3	AT346051	1	Oil Pump	Axle Circulation Pump
4	T354929	2	Tee Fitting	-
5	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
6	T213827	1	Plate	-
7	R47172	4	Washer	-
8	19M7361	4	Cap Screw	M12 X 50
9	T234564	1	Plate	-
10	AT386450	2	Oil Filter	-
11	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
12	38H1005	7	Elbow Fitting	-
13	R26375	7	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
14	T77857	7	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
15	62H1012	2	Adapter Fitting	-
16	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
17	38H1004	1	Elbow Fitting	-
18	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	62H1011	1	Adapter Fitting	-
21	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
22	38H1291	2	Tee Fitting	-
23	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
25	T81029	2	Nut	-
26	38H1094	1	Elbow Fitting	-
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	38H1031	2	Tee Fitting	-
29	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
30	AT312932	2	Fitting	-
31	AT335179	1	Hydraulic Hose	Fabricate
32	AT335179	1	Hydraulic Hose	Fabricate
33	AT335179	1	Hydraulic Hose	Fabricate
34	AT332605	1	Hydraulic Hose	-
35	AT333062	1	Hydraulic Hose	Fabricate
36	AT333055	1	Hydraulic Hose	Fabricate
37	AT333057	1	Hydraulic Hose	Fabricate
38	AT334170	1	Hydraulic Hose	Fabricate
39	AT371083	1	Hydraulic Hose	Fabricate
40	AT330606	1	Bracket	-
41	AT330678	1	Bracket	-
42	24M7296	5	Washer	10.500 X 30 X 2.500 mm
43	19M7786	2	Screw	M10 X 30
44	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
45	T218003	2	Label	Axle/Gearbox Oil
46	T238029	1	Adjusting Strap	-
47	AT371099	2	Filter	-
48	AT367635	1	Filter Element	-
49	R70921	2	Adapter Fitting	-
50	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
51	19M7785	8	Screw	M10 X 25
52	62H1019	1	Adapter Fitting	-
53	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
54	AT409630	1	Hydraulic Hose	Front Cooler to Filter Fabricate
55	AT409631	1	Hydraulic Hose	Rear Cooler to Filter Fabricate
56	RE537637	2	Coolant Temperature Sensor	-
57	38H1338	2	Adapter Fitting	-
58	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
59	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
60	AT409828	1	Hydraulic Hose	Rear Pump to Filter Fabricate
61	AT409827	1	Hydraulic Hose	Front Pump to Filter Fabricate
62	T76252	1	Clamp	-
63	19M7865	1	Screw	M8 X 16
64	24M7242	2	Washer	21.400 X 42 X 5 mm
65	19M7950	2	Cap Screw	M20 X 45
66	T304367	1	Plate	-
67	34M7250	2	Spring Pin	10 X 20 mm
68	19M7804	2	Screw	M10 X 40
69	AT400471	2	Tee Fitting	ORDER T354929
70	R27474	2	Drain Plug	USE WITH AT400471
71	R26906	2	O-Ring	USE WITH AT400471
72	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), USE WITH AT400471

Axle Cooling and Filtration System Conversion Kit

Нет текстового описания
