Открытый узел

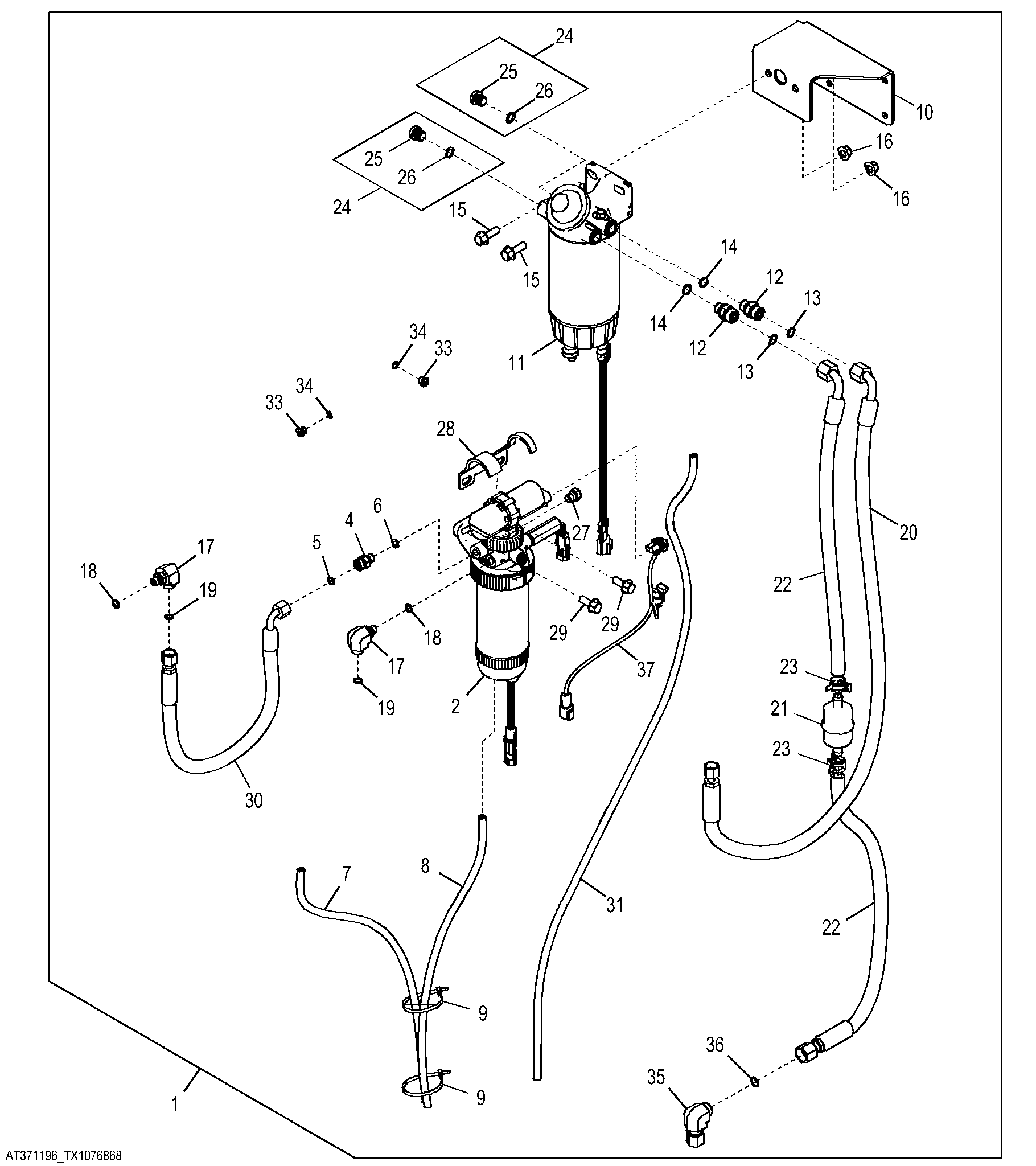

Severe Duty Fuel Filter and Water Separator Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT371196	1	Filter Kit	Severe Duty Whole Goods
2	RE569927	1	Fuel Filter	Water Separator with Electric Fuel Pump
2	RE541922	1	Filter Element	-
2	RE526834	1	Filter Kit	Mechanical Components Fuel Filter
2	RE51650	1	Sediment Bowl	Water Separator
2	RE519696	1	Sensor	Water In Fuel
2	RE516553	1	Seal Kit	Fuel Filter Seal
4	38H5008	1	Adapter Fitting	-
5	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
6	51M7040	1	O-Ring	9.300 X 2.200 mm
7	-	1	Part 11	MAKE FROM T79477, CTL 60.96 cm (2 ft)
8	-	1	Part 12	MAKE FROM T79477, CTL 60.96 cm (2 ft)
9	R44302	2	Tie Band	-
10	T257670	1	Bracket	-
11	AT387536	1	Filter	Severe Duty Fuel Filter, (SUB FOR AT374694)
11	AT365870	1	Filter Element	-
11	AT374689	1	Wiring Harness	Fuel Filter Heater
11	AT387539	1	Sediment Bowl	(SUB FOR AT374691)
11	AT387540	1	Chemical Sensor	Water In Fuel, (SUB FOR AT366928)
12	38H5135	2	Fitting	-
13	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
14	51M7042	2	O-Ring	13.300 X 2.200 mm
15	19M7786	2	Screw	M10 X 30
16	14M7296	2	Flange Nut	M10
17	38H5022	2	Elbow Fitting	-
18	51M7040	2	O-Ring	9.300 X 2.200 mm
19	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	AT367038	1	Hydraulic Hose	17.4752" X 1350 mm (53-1/4") X 13/16"
21	AT223493	1	Fuel Filter	-
22	AT367039	2	Hydraulic Hose	13/16" X 1205 mm (47-1/2") X 13/16"
23	R184863	2	Hose Clamp	-
24	RE225377	2	Fitting Plug	-
25	T122803	1	Fitting Plug	-
26	51M7042	1	O-Ring	13.300 X 2.200 mm
27	RE46686	1	Fitting Plug	-
27	51M7040	1	O-Ring	9.300 X 2.200 mm
28	R525528	1	Bracket	-
29	19M7785	2	Screw	M10 X 25
30	AT367645	1	Hydraulic Hose	17.4752" X 575 mm (22-3/4") X 17.4752"
31	-	1	Part 40	MAKE FROM T79477, CTL 105 cm (3.45 ft)
33	15M7087	2	Drain Plug	For Mechanical Fuel Pump
34	51M7039	2	O-Ring	8.100 X 1.600 mm
35	38H1095	1	Elbow Fitting	-
36	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
37	AT445400	1	Wiring Harness	Severe Duty Filter Harness, SUB FOR AT441534
