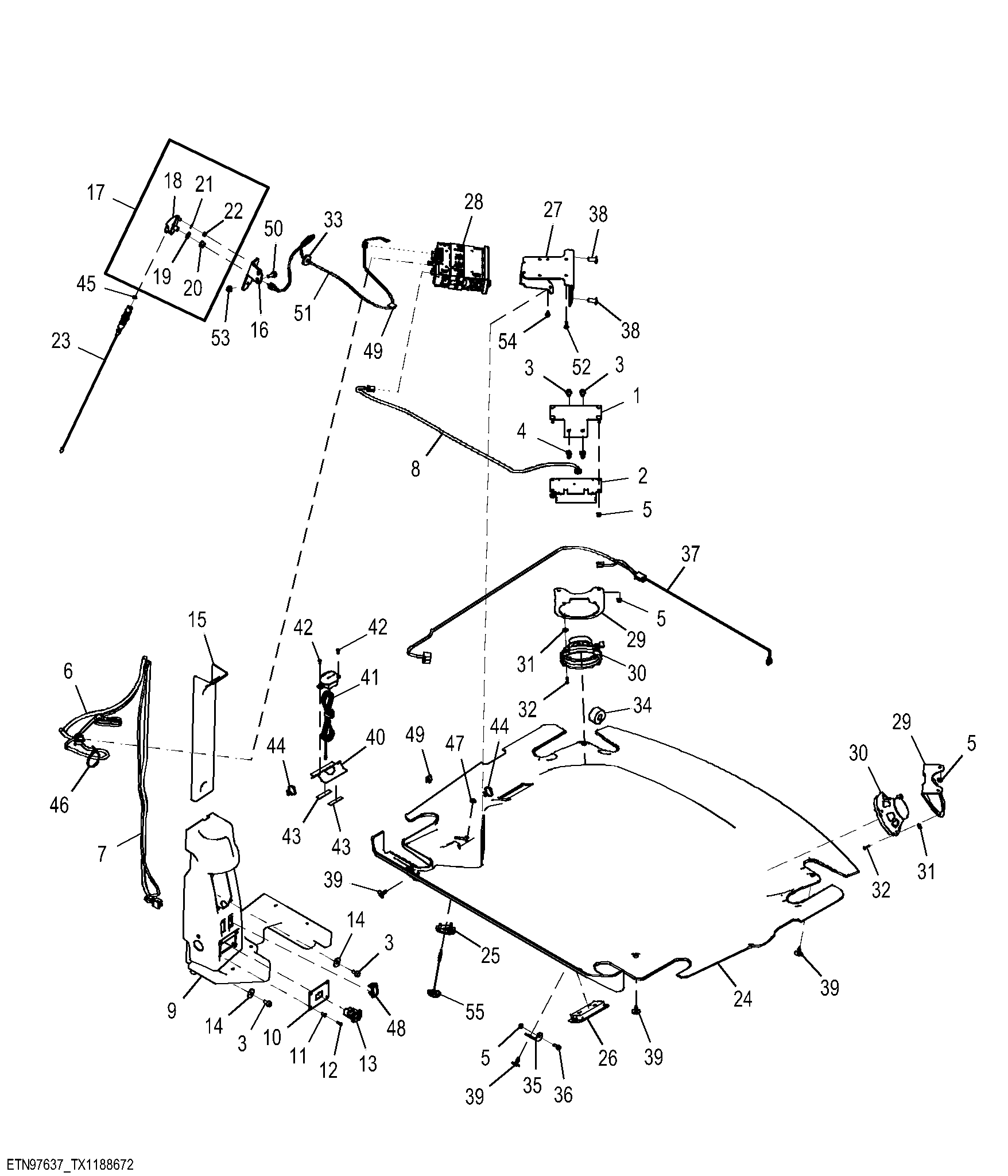

Открытый узел

Premium Radio and Headliner

Premium Radio and Headliner

Premium Radio and Headliner

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Premium Radio and Headliner

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT428286	1	Bracket	USE WITH AT439279
2	AL205194	1	Receiver	USE WITH AT439279
3	19M7865	3	Screw	M8 X 16
4	T301124	2	Nut	USE WITH AT439279
5	14M7303	6	Flange Nut	M6
6	AL210790	1	Wiring Harness	Radio To USB Port
7	AT462403	1	Radio Accessory	Auxiliary, Radio Harness, SUB FOR AT441610
7	57M10442	1	Elec. Connector Housing	-
7	57M11029	1	Elec. Connector Housing	-
7	57M10439	1	Elec. Connector Housing	-
7	57M10661	1	Elec. Connector Housing	-
8	AT426298	1	Wiring Harness	Satellite Radio, USE WITH AT439279
9	T332652	1	Control Console	-
10	T331957	1	Plate	-
11	T82792	4	Nut	-
12	T82791	4	Screw	-
13	AXE11061	1	Electrical Connector Assy	-
14	24M7296	3	Washer	10.500 X 30 X 2.500 mm
15	T331956	1	Cover	-
16	T290503	1	Bracket	-
17	RE250304	1	Antenna	Base With Mounting Hardware
18	RE247775	1	Antenna	-
19	12H292	1	Lock Washer	1/2"
20	R76695	1	Nut	-
21	12H356	1	Lock Washer	1/4"
22	14H786	1	Nut	1/4"
23	AT350979	1	Antenna	Antenna Whip Assembly
24	T451077	1	Headliner	Cab W/ Radio Cutout, SUB FOR T254813
25	T348574	1	Bezel	-
26	AT337492	1	Lamp	24 V, 10 W, INCLUDES TT207136
26	TT207136	1	Bulb	-
27	T331517	1	Bracket	Radio
28	RE585066	1	Radio	AM/FM/WB/XM With USB and Auxiliary Ports With Bluetooth, SUB FOR AT439279
29	T180338	2	Bracket	Speaker
30	AT342588	2	Speaker	-
31	TT101176	8	Nut	-
32	T182888	8	Screw	-
33	T65643	1	Grommet	-
34	T182870	1	Isolator	-
35	T181050	2	Angle	-
36	19M7862	2	Screw	M6 X 20
37	AT358008	1	Radio Speaker WRG Harness	-
38	MT2485	2	Plug	SUB FOR T121467
39	T184892	6	Retainer	-
40	T306309	1	Bracket	-
41	RE296896	1	Antenna	Satellite
42	37H95	2	Screw	-
43	T274806	2	Pressure Sensitive Adhesive	-
44	R44302	2	Tie Band	-
45	12H302	1	Lock Washer	1/4"
46	R44302	1	Tie Band	-
47	H117239	3	Push Nut	-
48	M115279	1	Plug	-
49	T182909	2	Clip	-
50	19M7867	1	Screw	M8 X 25
51	SJ19327	1	Antenna Cable	INCLUDES T344552 AND RE281646
51	T344552	1	Elec. Connector Terminal	-
51	RE281646	1	Antenna Cable	-
52	19H1948	4	Cap Screw	1/4" X 3/4"
53	14M7298	1	Flange Nut	M8
54	37M7089	1	Screw	M6 X 12
55	AXE13430	1	Radio Accessory	-
