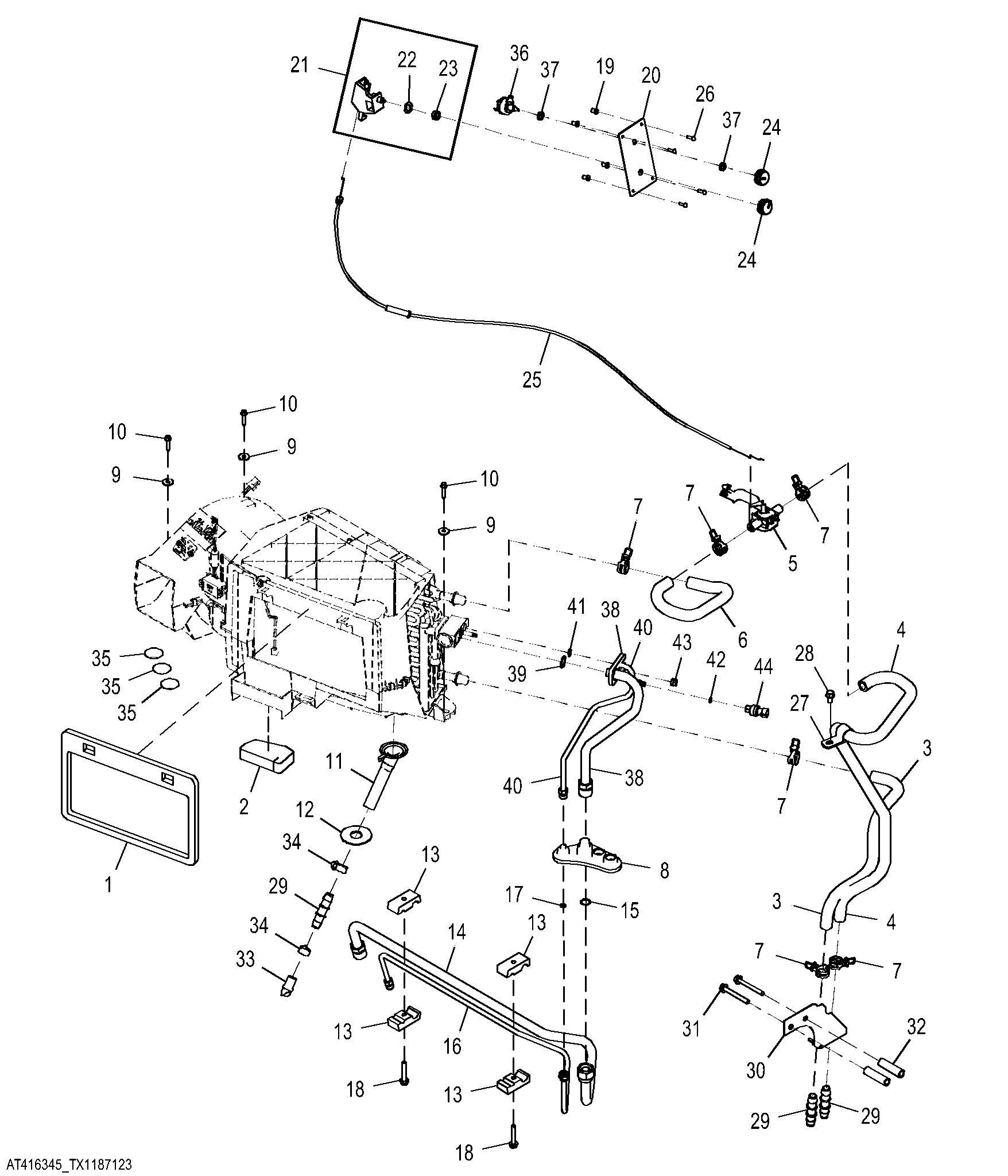

HVAC Module Lines and Control Cable (681290 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T202742	1	Seal	Recirculation
2	T204124	1	Pad	-
3	T245141	1	Hose	Heater Inlet
4	T261665	1	Hose	Heater Outlet
5	RE263090	1	Valve	Heater Valve
6	T261666	1	Hose	Heater Outlet
7	T184924	6	Hose Clamp	-
8	T166297	1	Grommet	-
9	24M7100	3	Washer	6.600 X 22 X 2 mm
10	37M7104	3	Screw	M6 X 30
11	T239763	1	Funnel	Condensation Drain
12	T265735	1	Isolator	-
13	H114865	4	Clamp	-
14	AT352302	1	Line	Refrigerant Suction
15	R183412	1	O-Ring	-
16	AT352303	1	Line	Refrigerant Liquid
17	R183409	1	O-Ring	-
18	19M8318	2	Screw	M8 X 45
19	T82792	4	Nut	-
20	T228574	1	Instrument Panel	Climate Controls
21	RE46742	1	Control	Temperature
22	12H292	1	Lock Washer	1/2"
23	14H934	1	Nut	7/16"
24	AL76568	2	Knob	-
25	AT347919	1	Push Pull Cable	Temperature Control
26	T82791	4	Screw	-
27	T140924	1	Clamp	-
28	19M7865	1	Screw	M8 X 16
29	T160492	3	Fitting	-
30	T315459	1	Bracket	-
31	19M7803	2	Screw	M8 X 70
32	28H3388	2	Bushing	0.493" X 0.675" X 2-3/8"
33	T330289	1	Check Valve	Condensation Drain
34	H224073	2	Tie Band	-
35	T186793	3	Label	Gray Circle
36	AT471493	1	Switch	Blower Speed Switch, SUB FOR RE43497
37	R44165	2	Lock Nut	-
38	AT478367	1	Line	Refrigerant Suction, SUB FOR AT341613
39	T356709	1	Sealing Washer	-
40	AT478365	1	Refrigerant Hose	Refrigerant Liquid, SUB FOR AT341630
41	T355726	1	Sealing Washer	-
42	R183409	1	O-Ring	-
43	14M7426	1	Lock Nut	M8
44	RE157329	1	Switch	High / Low Pressure Switch

HVAC Module Lines and Control Cable (681290 - )
