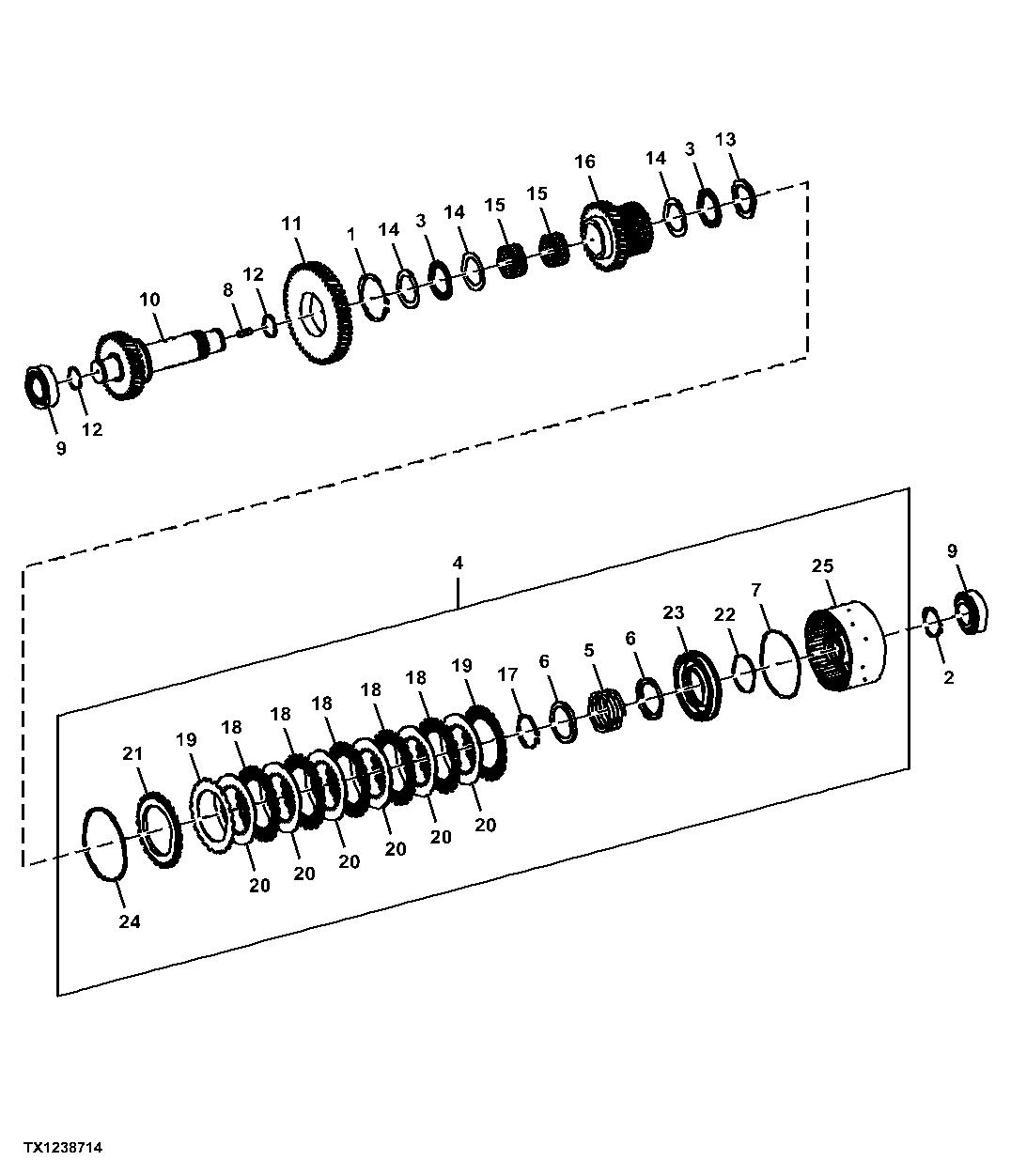

High Range Forward Clutch Assembly Without Lockup Torque Converter

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T158719	1	Snap Ring	-
2	40M7166	1	Snap Ring	-
3	AT179498	2	Needle Bearing	-
4	AT438876	1	Clutch	-
5	T116486	1	Compression Spring	-
6	T116579	2	Ring	-
7	T170712	1	O-Ring	-
8	T171153	1	Stud	-
9	T345452	2	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings.
11	T171216	1	Gear	-
12	T172115	2	Piston Ring	-
13	T172136	1	Disk	-
14	T172138	3	Thrust Washer	-
15	T172139	2	Needle Bearing	-
16	T345480	1	Idler	-
17	T172299	1	Snap Ring	-
18	T173640	5	Disk With Outer Spline	-
19	T173641	2	Disk With Outer Spline	-
20	T173642	6	Disk With Inner Spline	-
22	T173965	1	O-Ring	-
23	T178280	1	Piston	-
24	T181875	1	Snap Ring	3.00 mm (0.118 in)
24	T172251	1	Snap Ring	4.20 mm (0.165 in)
24	AT259469	1	Snap Ring	3.90 mm (0.154 in)
24	AT259468	1	Snap Ring	3.75 mm (0.148 in)
24	T172247	1	Snap Ring	3.60 mm (0.142 in)
24	AT259467	1	Snap Ring	3.45 mm (0.136 in)
24	T181876	1	Snap Ring	3.30 mm (0.130 in)
24	AT259465	1	Snap Ring	3.15 mm (0.124 in)
24	T181874	1	Snap Ring	2.70 mm (0.106 in)
24	T172240	1	Snap Ring	2.55 mm (0.100 in)
24	T181873	1	Snap Ring	2.40 mm (0.095 in)
24	T172238	1	Snap Ring	2.25 mm (0.089 in)
24	T172237	1	Snap Ring	2.10 mm (0.083 in)
25	T345482	1	Clutch	ORDER AT438876

High Range Forward Clutch Assembly Without Lockup Torque Converter
