Full Coverage Front and Rear Fenders

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T404633	2	Bracket	SUB FOR T224529
2	AT328366	1	Hinge	Left Rear
3	AT328367	1	Hinge	Right Rear
4	-	2	Part 4	MAKE FROM T58056, CTL 48.76 cm (19.2 in.)
5	T203965	2	Plate	-
6	T354140	2	Fender	Rear
7	T176357	6	Angle	-
8	T204644	4	Plate	-
9	T22381	24	Washer	-
10	AT219974	2	Bumper	-
11	14M7152	20	Nut	M10
12	14M7296	8	Flange Nut	M10
13	19M7835	13	Screw	M10 X 35
14	24M7296	47	Washer	10.500 X 30 X 2.500 mm
15	14M7400	65	Lock Nut	M10
16	19M7786	30	Screw	M10 X 30
17	24M7239	8	Washer	10.700 X 21 X 2.500 mm
18	03M7195	18	Bolt	M10 X 45
19	19M8737	2	Screw	M12 X 140
20	24M7240	2	Washer	13 X 25 X 3 mm
21	14M7401	2	Lock Nut	M12
22	T354250	2	Fender	Front
23	T279492	1	Splash Guards	SUB FOR T230879
24	T178368	6	Support	-
25	T204744	1	Plate	-
26	T203077	2	Splash Guards	-
27	19M7804	2	Screw	M10 X 40
28	T173779	2	Strap	-
29	T147891	2	Bushing	-
30	19M7812	2	Screw	M10 X 100
31	19M7789	6	Screw	M12 X 30
32	AT437856	1	Bracket	Left Rear
33	AT426830	2	Bracket	-
34	AT437871	2	Latch	-
35	19M7785	6	Screw	M10 X 25
36	19M7862	4	Screw	M6 X 20
37	24M7139	4	Washer	6.400 X 18 X 1.600 mm
38	14M7303	4	Flange Nut	M6
39	AT437864	1	Bracket	Right Rear
40	AT451506	1	Bracket	Left, SUB FOR AT437860
41	AT455402	1	Bracket	Right, SUB FOR AT437862
42	19M7784	4	Screw	M10 X 20
43	R56724	2	Spring	-
44	T346539	2	Eyebolt	-
45	24H1314	2	Washer	13/32" X 1-3/4" X 7/64"
46	14M7396	2	Lock Nut	M8

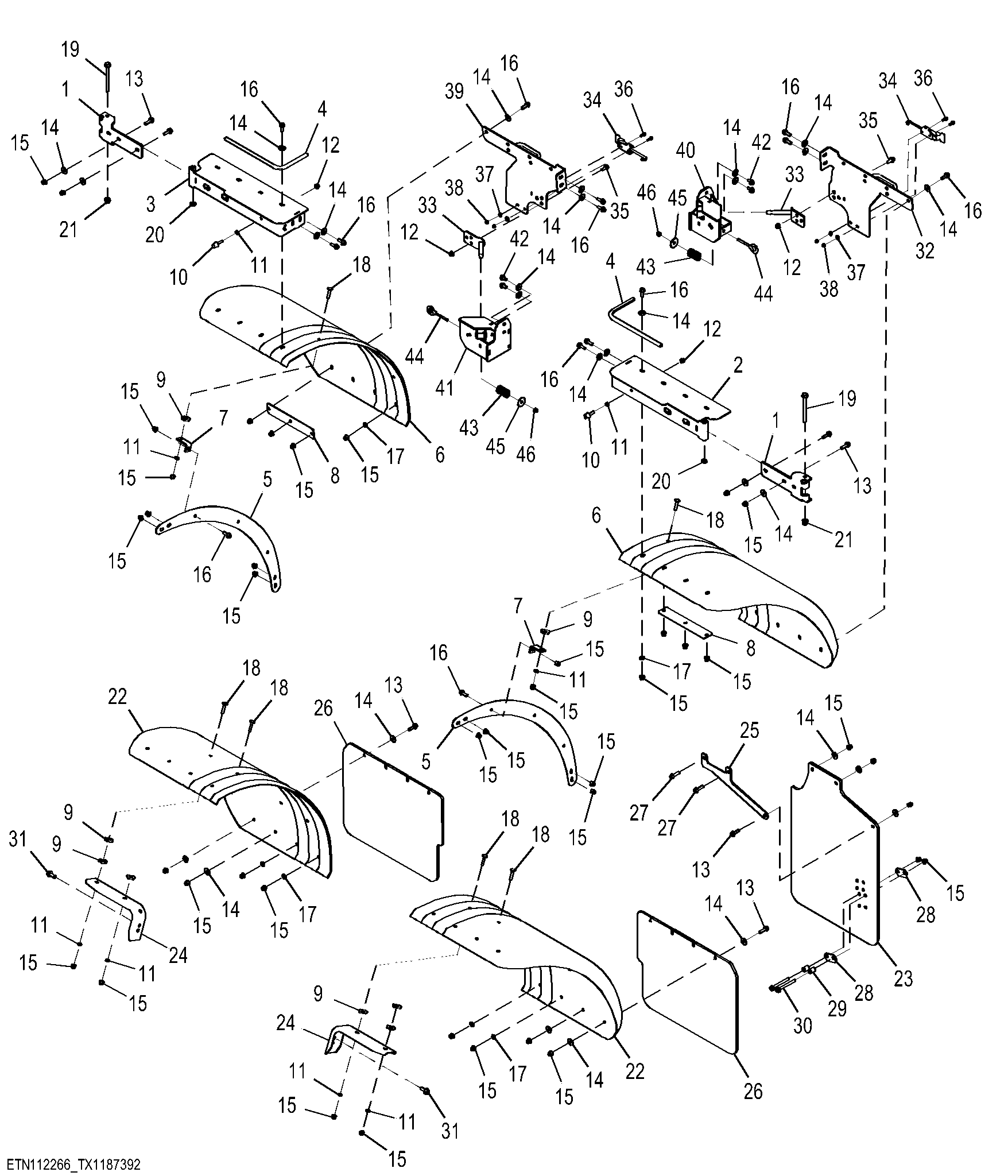

Full Coverage Front and Rear Fenders
