Front Lights, Halogen and LED (Z-Bar)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT493201	2	Support	-
1	AT210246	2	Support	ORDER AT493201
2	24M7240	2	Washer	13 X 25 X 3 mm
3	14M7299	2	Flange Nut	M12
4	14M7400	4	Lock Nut	M10
5	24M7298	2	Washer	8.400 X 25 X 2 mm
6	19M7798	2	Screw	M8 X 40
7	24M7296	4	Washer	10.500 X 30 X 2.500 mm
8	19M7804	4	Screw	M10 X 40
9	AT446759	2	Floodlamp	24 V, Halogen Drive, INCLUDES AT135758
9	AT135758	1	Bulb	24 V, Halogen
10	57M10310	2	Elec. Connector Accessory	-
11	14M7396	2	Lock Nut	M8
12	AT465217	2	Lamp	Signal Light, Front
13	T414004	2	Grommet	USE WITH AT493201
14	AT494005	1	Wiring Harness	USE WITH AT465217
15	57M9734	1	Elec. Connector Housing	Front Turn/ Marker Light
15	R78065	3	Elec. Connector Terminal	-
16	R78054	1	Electrical Connector Assy	To Loader Frame
16	R78061	3	Elec. Connector Terminal	-
16	57M9218	3	Elec. Connector Seal	-
17	AT494005	1	Wiring Harness	USE WITH AT465217
18	57M9734	1	Elec. Connector Housing	Front Turn/ Marker Light
18	R78065	3	Elec. Connector Terminal	-
19	R78054	1	Electrical Connector Assy	To Loader Frame
19	R78061	3	Elec. Connector Terminal	-
19	57M9218	3	Elec. Connector Seal	-
20	AT362406	2	Lamp	Front Turn / Marker, ORDER AT465217

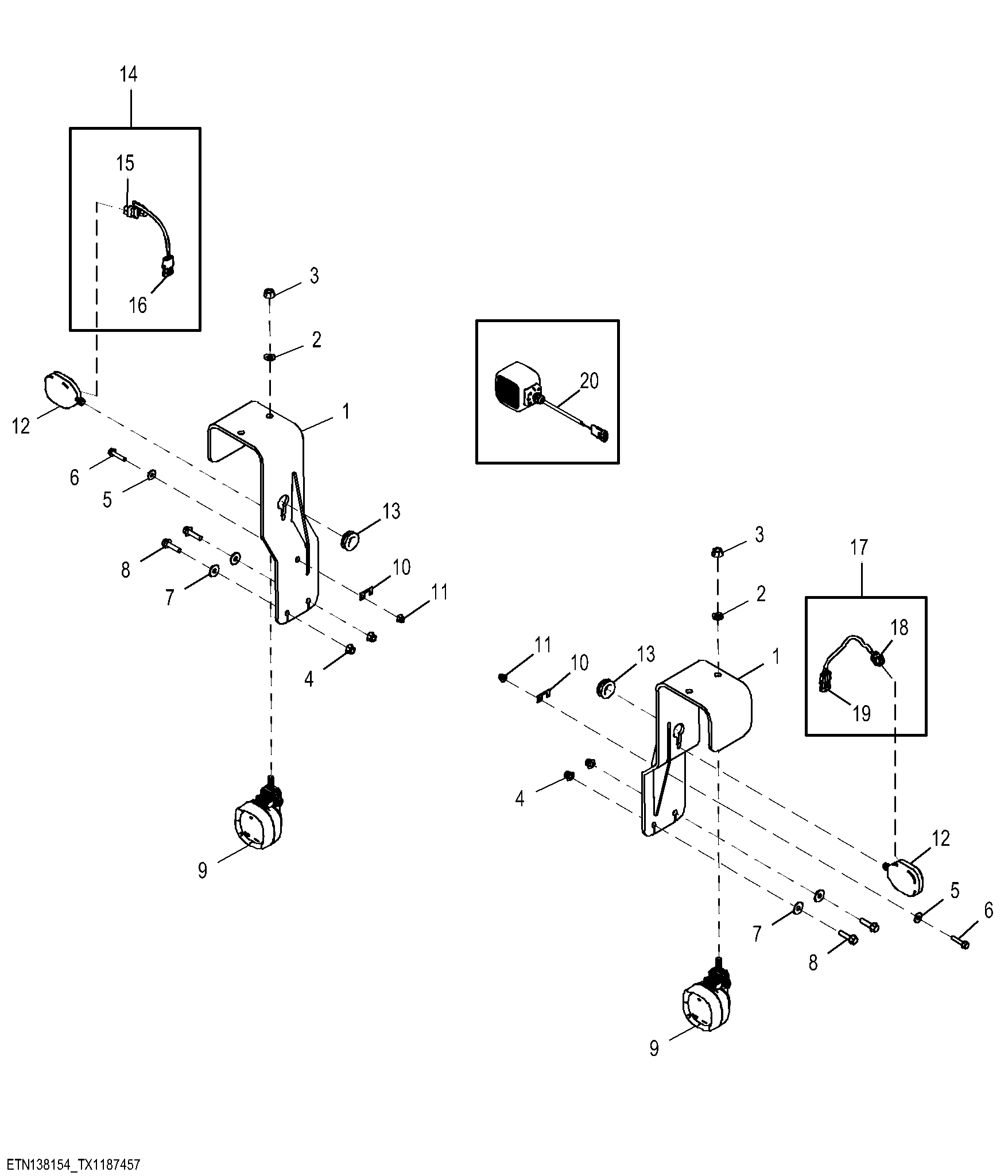

Front Lights, Halogen and LED (Z-Bar)

Нет текстового описания
