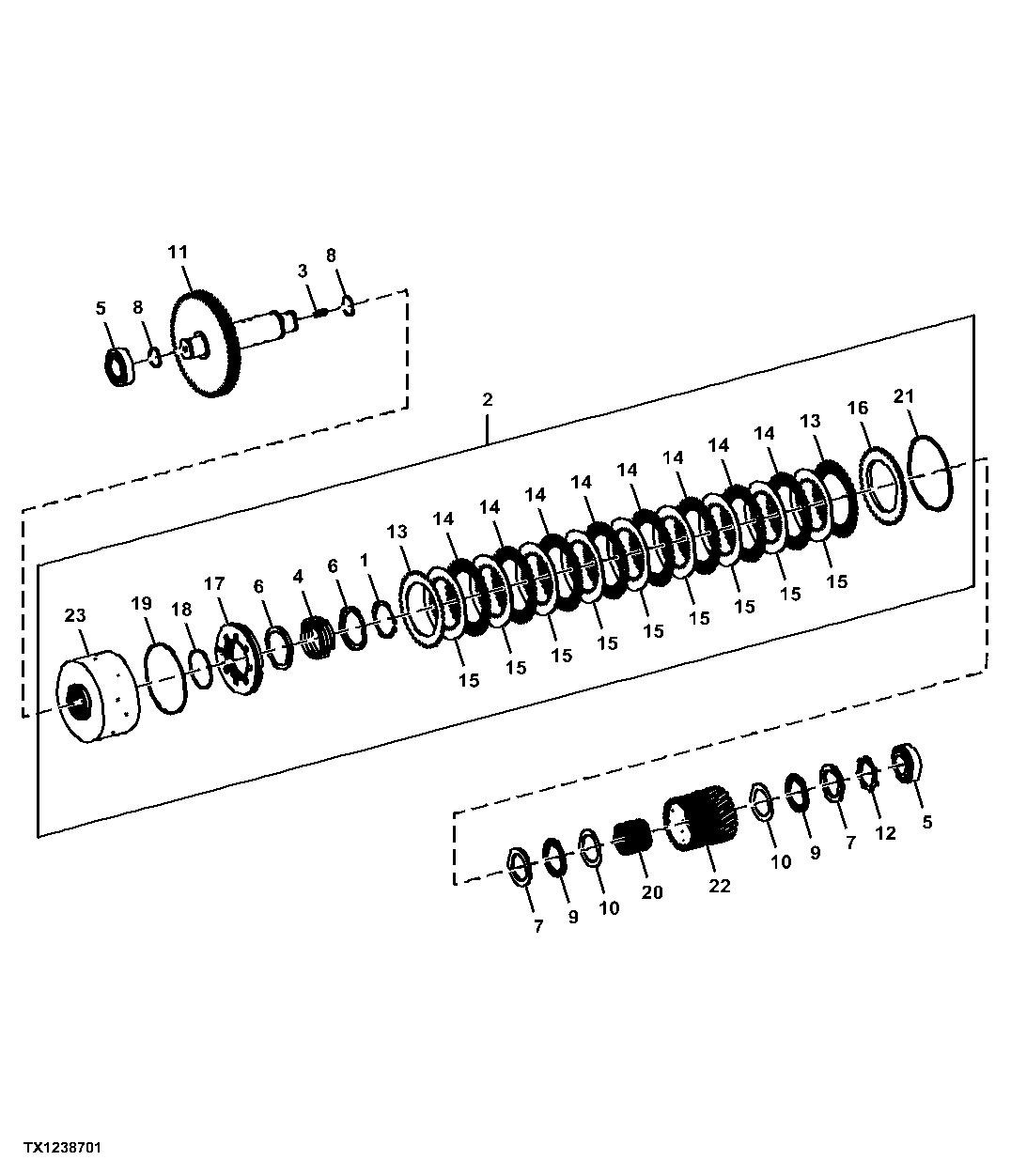

First Gear Clutch Assembly Without Lockup Torque Converter

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT259445	1	Snap Ring	-
2	AT438847	1	Clutch	-
3	T171153	1	Stud	-
4	T171155	1	Compression Spring	-
5	T345452	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings.
6	T172097	2	Ring	-
7	T172104	2	Disk	-
8	T172115	2	Piston Ring	-
9	T172129	2	Thrust Bearing	-
10	T172130	2	Thrust Washer	-
11	T363813	1	Universal Driveshaft	-
12	T173036	1	Snap Ring	-
13	T173636	2	Disk With Outer Spline	-
14	T173637	8	Disk With Outer Spline	-
15	T173638	9	Disk With Inner Spline	-
16	T172102	1	Solid Shim	-
18	T173958	1	O-Ring	-
19	T173960	1	O-Ring	-
20	T179594	1	Needle Bearing	-
21	T172237	1	Snap Ring	2.10 mm (0.083 in)
21	T172238	1	Snap Ring	2.25 mm (0.089 in)
21	T181873	1	Snap Ring	2.40 mm (0.095 in)
21	T172240	1	Snap Ring	2.55 mm (0.100 in)
21	T181874	1	Snap Ring	2.70 mm (0.106 in)
21	T181875	1	Snap Ring	3.00 mm (0.118 in)
21	AT259465	1	Snap Ring	3.15 mm (0.124 in)
21	T181876	1	Snap Ring	3.30 mm (0.130 in)
21	AT259467	1	Snap Ring	3.45 mm (0.136 in)
21	T172247	1	Snap Ring	3.60 mm (0.142 in)
21	AT259468	1	Snap Ring	3.75 mm (0.148 in)
21	AT259469	1	Snap Ring	3.90 mm (0.154 in)
21	T172251	1	Snap Ring	4.20 mm (0.165 in)
22	T345451	1	Gear	-
23	T345450	1	Clutch	ORDER AT438847

First Gear Clutch Assembly Without Lockup Torque Converter
