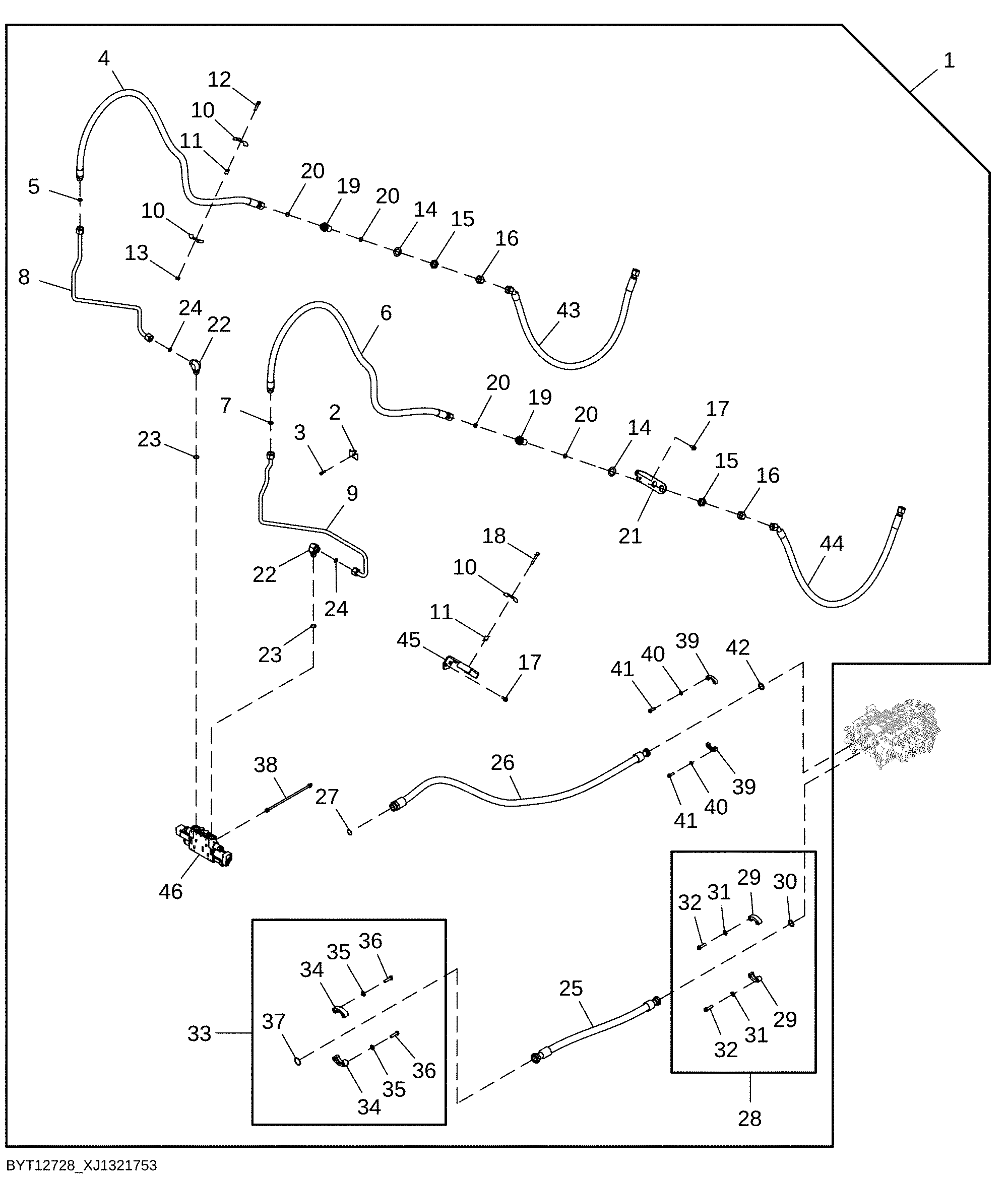

Three Function Hydraulic Lines Field Kit (15418 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT12728	1	Mounting Parts	Whole Goods
2	T160549	1	Clamp	-
3	19M7657	1	Screw	M8 X 25
4	AT486142	1	Hydraulic Hose	To Auxiliary Valve
5	T77858	1	O-Ring	-
6	AT486142	1	Hydraulic Hose	To Auxiliary Valve
7	T77858	1	O-Ring	-
8	AT492092	1	Oil Line	-
9	AT492091	1	Oil Line	-
10	U46753	3	Hose Clamp	-
11	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
12	19M9803	1	Socket Head Screw	M10 X 40
13	14M7517	1	Lock Nut	M10
14	24H1263	2	Washer	1-1/4" X 2" X 0.060"
15	38H5094	2	Nut	1-3/16"
16	38H5456	2	Fitting	-
17	19M7784	4	Screw	M10 X 20
18	19M8954	1	Screw	M10 X 60
19	38H5219	2	Union Fitting	-
20	T77858	4	O-Ring	-
21	T404895	1	Bracket	-
22	38H5019	2	Elbow Fitting	-
23	51M7047	2	O-Ring	23.600 X 2.900 mm
24	T77858	2	O-Ring	-
25	AT530625	1	Hydraulic Hose	To Control Valve
26	AT518326	1	Hydraulic Hose	To Control Valve, INCLUDES T78612
27	T78612	1	O-Ring	-
28	AT397435	1	Fitting Kit	-
29	T107068	2	Flange Fitting	-
30	T78313	1	O-Ring	-
31	24M7240	4	Washer	13 X 25 X 3 mm
32	19M7496	4	Cap Screw	M12 X 45
33	AT390184	1	Fitting Kit	-
34	AT131685	2	Flange Fitting	-
35	24M7240	4	Washer	13 X 25 X 3 mm
36	19M7496	4	Cap Screw	M12 X 45
37	T78393	1	O-Ring	-
38	AT531726	4	Tie Rod Assembly	-
39	H61354	2	Flange Fitting	-
40	24M7239	4	Washer	10.700 X 21 X 2.500 mm
41	19M7662	4	Cap Screw	M10 X 30
42	U12037	1	O-Ring	-
43	AT490619	1	Hydraulic Hose	-
44	AT490619	1	Hydraulic Hose	-
45	AT485829	1	Bracket	-
46	AT488584	1	Valve Kit	Auxiliary Section Components on Separate Page

Three Function Hydraulic Lines Field Kit (15418 - )
