Открытый узел

Single Axis Lever Controller, 3-Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

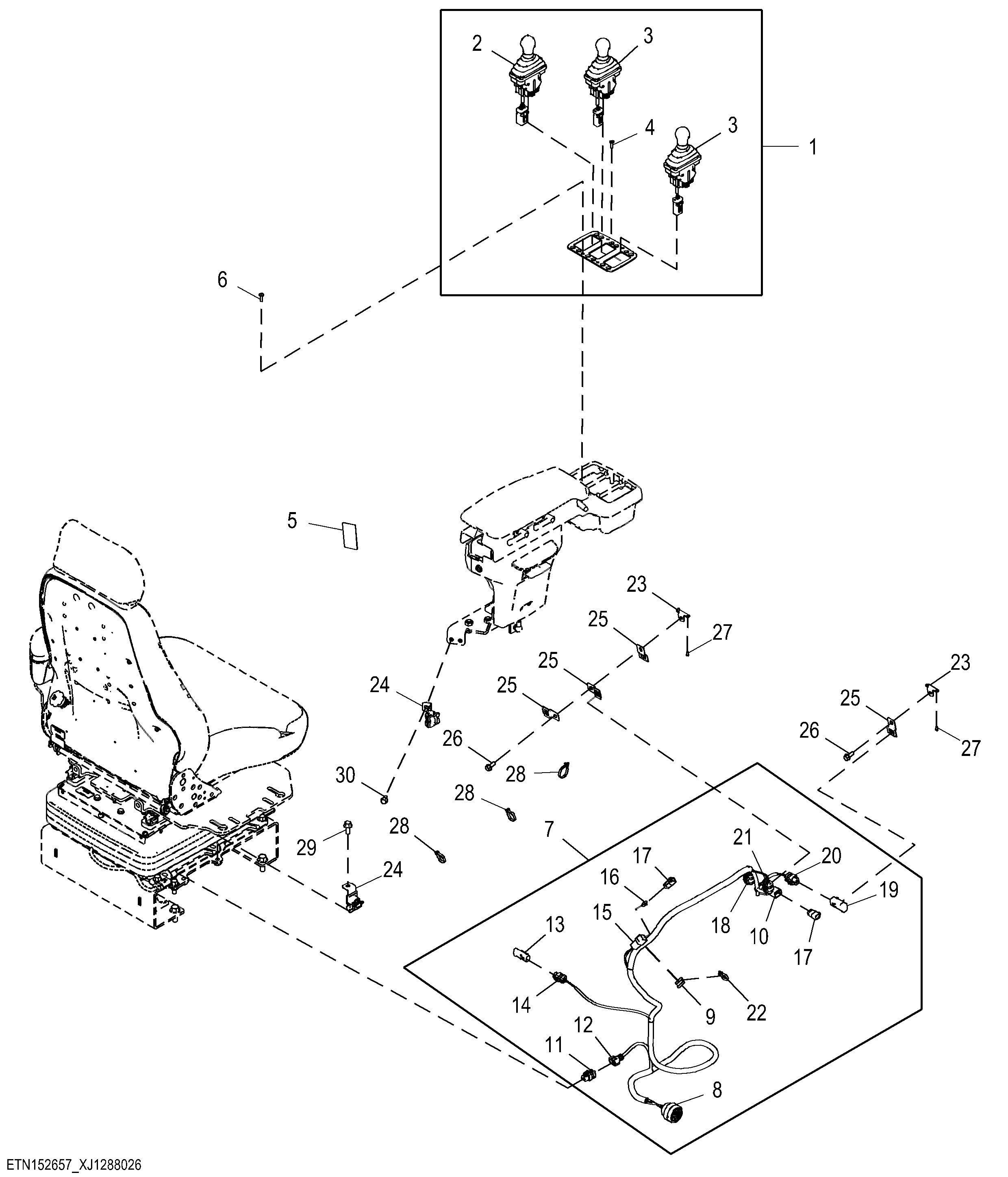

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT482046	1	Control	Three Lever Stackable with Mounting Plate
2	AT467422	1	Control	Analog Lever J7, Bucket with Kickdown
3	AT467419	2	Control	Analog Lever J7, Boom Control
4	21M7665	12	Screw	M6 X 20
5	T414962X00	1	Label	Fingertip Controls No Text
6	T406564	4	Bolt	-
7	AT484553	1	Cab Wiring Harness	RH Arm Rest, Stackable Controls Wiring Harness
8	57M7751	1	Elec. Connector Housing	Joystick/Stackable Control to Load Center Inline, X12B
8	R78065	21	Elec. Connector Terminal	-
8	57M7542	2	Elec. Connector Terminal	-
8	R78069	8	Elec. Connector Cavity Plug	-
9	T380249	1	Elec. Connector Accessory	-
10	57M10265	1	Elec.Connect Locking Device	Counter Switch, S18
10	57M10346	1	Elec. Connector Housing	-
10	57M9132	1	Elec.Connect Locking Device	-
10	57M7771	6	Elec. Connector Terminal	-
10	57M11214	6	Elec. Connector Terminal	-
11	57M9734	1	Elec. Connector Housing	Seat, A39
11	57M7542	2	Elec. Connector Terminal	-
11	R78065	1	Elec. Connector Terminal	-
12	57M9838	1	Elec. Connector Accessory	-
13	57M11333	1	Elec. Connector Accessory	-
14	R78065	2	Elec. Connector Terminal	-
14	57M9772	1	Elec. Connector Housing	Seat Belt Indicator Switch, S31
15	57M10265	1	Elec.Connect Locking Device	Turn Signal Switch, S26
15	57M11214	5	Elec. Connector Terminal	-
15	57M7771	6	Elec. Connector Terminal	-
15	57M9132	1	Elec.Connect Locking Device	-
16	57M10346	2	Elec. Connector Housing	-
17	57M9130	2	Electrical Connector Assy	-
18	57M9792	1	Elec. Connector Housing	Electrohydraulic (EH) Bucket Lever Assembly (Multiple Lever), A36
18	57M8263	8	Elec. Connector Terminal	-
19	57M11335	1	Elec. Connector Accessory	-
20	57M8263	4	Elec. Connector Terminal	-
20	57M9817	1	Elec. Connector Housing	Electrohydraulic (EH) Joystic Auxiliary Assembly (Multiple Lever), A37
21	57M9817	1	Elec. Connector Housing	Electrohydraulic (EH) Boom Lever Assembly (Multiple Lever), A35
21	57M8263	4	Elec. Connector Terminal	-
22	R44302	1	Tie Band	-
23	AT473826	2	Bracket	Armrest Connector Bracket
24	T404448	2	Clamp	-
25	57M10650	4	Clip Kit	-
26	19M9836	2	Screw	M8 X 20
27	19M8869	4	Screw	M4 X 8
28	R44302	3	Tie Band	-
29	19M7785	1	Screw	M10 X 25
30	19M7865	1	Screw	M8 X 16

Single Axis Lever Controller, 3-Function

Нет текстового описания
