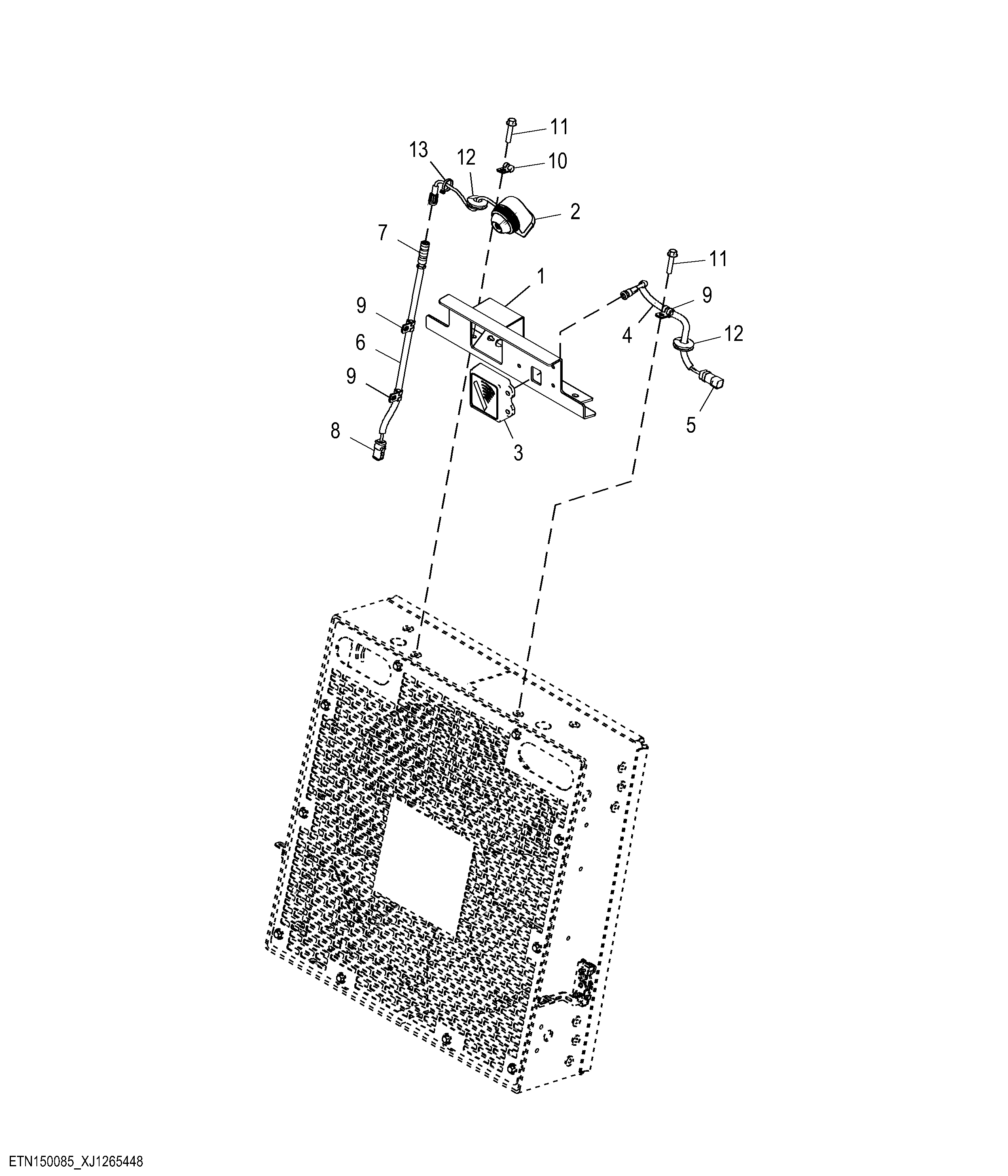

Rear Camera and Rear Object Radar Detection

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT492561	1	Bracket	SUB FOR AT466876
2	AT466877	1	Television Camera	-
2	14M7297	2	Nut	M5
2	19M8576	2	Screw	M5 X 30
2	24M7105	2	Washer	6 X 12 X 1.600 mm
3	AT506248	1	Radar Sensor	Rear Object
4	AT483542	1	Wiring Harness	Rods Jumper Harness, INCLUDES 57M14416; USE WITH AT338273
5	57M14416	1	Elec. Connector Housing	Rear Frame to Rod or Radar Jumper Inline
5	R78066	5	Elec. Connector Terminal	-
5	R78069	1	Elec. Connector Cavity Plug	-
5	57M7678	1	Elec. Connector Terminal	-
6	AT492457	1	Wiring Harness	Camera Jumper Harness, SUB FOR AT483543; INCLUDES 57M11634, 57M14415
7	57M11634	1	Elec. Connector Housing	-
8	57M14415	1	Elec. Connector Housing	Inline Rear Camera to Rear Frame
8	R78065	5	Elec. Connector Terminal	-
8	R78069	1	Elec. Connector Cavity Plug	-
8	57M8013	1	Elec.Connect Locking Device	-
9	T74412	3	Clamp	-
10	T74410	1	Clamp	-
11	19M7805	2	Screw	M10 X 45
12	R45210	2	Grommet	-
13	R44302	1	Tie Band	-

Rear Camera and Rear Object Radar Detection
