Открытый узел

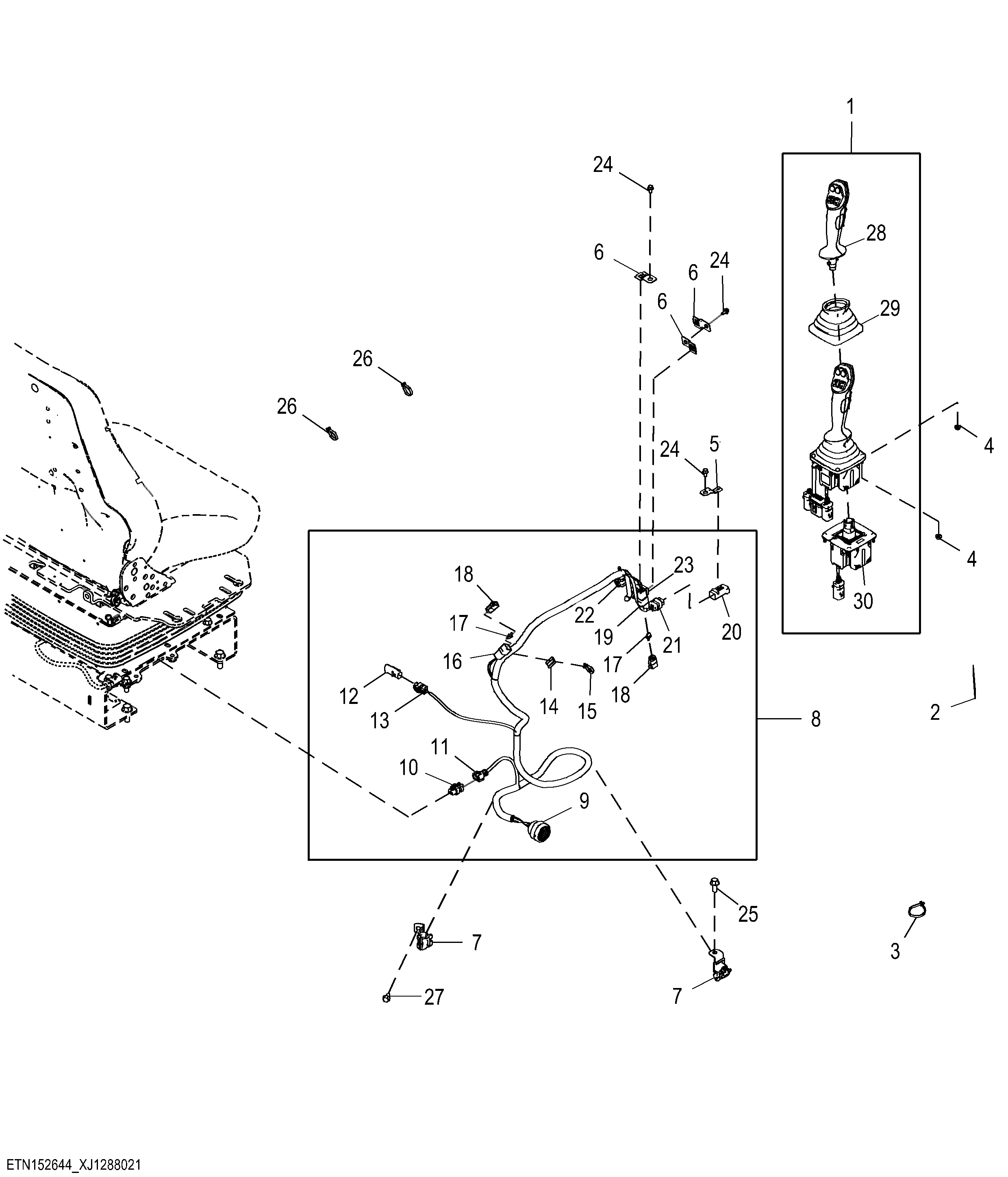

Joystick Pilot Controller with Forward Neutral Reverse (FNR) Switch, 4 Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT467423	1	Electrohydraulic Controller	EH Base Grip with Forward Neutral Reverse (FNR) Switch Forth Function
2	T414961X00	1	Label	Joystick Fourth Function No Text
3	R44302	1	Tie Band	-
4	14M7744	4	Flange Nut	M6
5	57M8736	1	Elec. Connector Accessory	-
6	57M10650	3	Clip Kit	-
7	T404448	2	Clamp	-
8	AT484552	1	Cab Wiring Harness	Joystick Boom/Bucket Controls Wiring Harness
9	R78069	1	Elec. Connector Cavity Plug	-
9	57M7542	2	Elec. Connector Terminal	-
9	R78065	28	Elec. Connector Terminal	-
9	57M7751	1	Elec. Connector Housing	Joystick/Stackable Control to Load Centre Inline, X12B
10	57M9734	1	Elec. Connector Housing	Seat, A39
10	57M7542	2	Elec. Connector Terminal	-
10	R78065	1	Elec. Connector Terminal	-
11	57M9838	1	Elec. Connector Accessory	-
12	57M11333	1	Elec. Connector Accessory	-
13	57M9772	1	Elec. Connector Housing	Seat Belt Switch, S31
13	R78065	2	Elec. Connector Terminal	-
14	T380249	1	Elec. Connector Accessory	-
15	R44302	1	Tie Band	-
16	57M10265	1	Elec.Connect Locking Device	Turn Signal Switch, S26
16	57M7771	6	Elec. Connector Terminal	-
16	57M11214	5	Elec. Connector Terminal	-
17	57M10346	2	Elec. Connector Housing	-
18	57M9130	2	Electrical Connector Assy	-
19	57M10265	1	Elec.Connect Locking Device	Counter Switch, S18
19	57M11214	6	Elec. Connector Terminal	-
19	57M7771	6	Elec. Connector Terminal	-
20	57M11335	1	Elec. Connector Accessory	-
21	57M9817	1	Elec. Connector Housing	Four Function EH Joystick Assembly 1, A34-1
21	57M8263	4	Elec. Connector Terminal	-
22	57M8263	6	Elec. Connector Terminal	-
22	57M9786	1	Elec. Connector Housing	EH Joystick Base Assembly (Single Lever), A32
23	57M9800	1	Elec. Connector Housing	Three Function EH Joystick Assembly, A33
23	57M8263	12	Elec. Connector Terminal	-
24	19M9830	3	Screw	M6 X 12
25	19M7785	1	Screw	M10 X 25
26	R44302	2	Tie Band	-
27	19M7865	1	Screw	M8 X 16
28	AT467424	1	Control	Grip with Forward Neutral Reverse (FNR) Switch Third and Forth Function
29	T379060	1	Boot	Dual Axis
30	AT467418	1	Electrohydraulic Controller	RH EH Base

Joystick Pilot Controller with Forward Neutral Reverse (FNR) Switch, 4 Function

Нет текстового описания
