Four Function Auxiliary Control Valve and Hoses Kit, Z-Bar (15418 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT12729	1	Mounting Parts	Whole Goods
2	AT485829	1	Bracket	Hose Bracket
3	U46753	3	Hose Clamp	-
4	14M7517	1	Lock Nut	M10
5	T397000	1	Bracket	-
6	T160549	1	Clamp	-
7	AT492101	1	Oil Line	-
8	AT492100	1	Oil Line	-
9	AT486142	1	Hydraulic Hose	Fabricate To Auxiliary Valve
10	T77858	1	O-Ring	-
11	AT486142	1	Hydraulic Hose	Fabricate To Auxiliary Valve
12	T77858	1	O-Ring	-
13	38H5005	2	Adapter Fitting	-
14	T77858	2	O-Ring	-
15	51M7047	2	O-Ring	23.600 X 2.900 mm
16	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
17	24H1263	2	Washer	1-1/4" X 2" X 0.060"
18	19M9803	1	Socket Head Screw	M10 X 40
19	19M8954	1	Screw	M10 X 60
20	19M7784	4	Screw	M10 X 20
21	19M7657	1	Screw	M8 X 25
22	38H5094	2	Nut	1-3/16"
23	38H5456	2	Fitting	-
24	AT488584	1	Valve Kit	Auxiliary Section Components on Separate Page
25	AT531727	4	Tie Rod Assembly	-
26	AT397435	1	Fitting Kit	-
27	T107068	2	Flange Fitting	-
28	T78313	1	O-Ring	-
29	24M7240	4	Washer	13 X 25 X 3 mm
30	19M7496	4	Cap Screw	M12 X 45
31	H61354	2	Flange Fitting	-
32	24M7239	4	Washer	10.700 X 21 X 2.500 mm
33	19M7662	4	Cap Screw	M10 X 30
34	U12037	1	O-Ring	-
35	AT530674	1	Hydraulic Hose	Control Valve Pressure
36	AT521343	1	Hydraulic Hose	Control Valve Return
37	T78612	1	O-Ring	-
38	AT390184	1	Fitting Kit	-
39	AT131685	2	Flange Fitting	-
40	24M7240	4	Washer	13 X 25 X 3 mm
41	19M7496	4	Cap Screw	M12 X 45
42	T78393	1	O-Ring	-
43	38H5219	2	Union Fitting	-
44	T77858	4	O-Ring	-

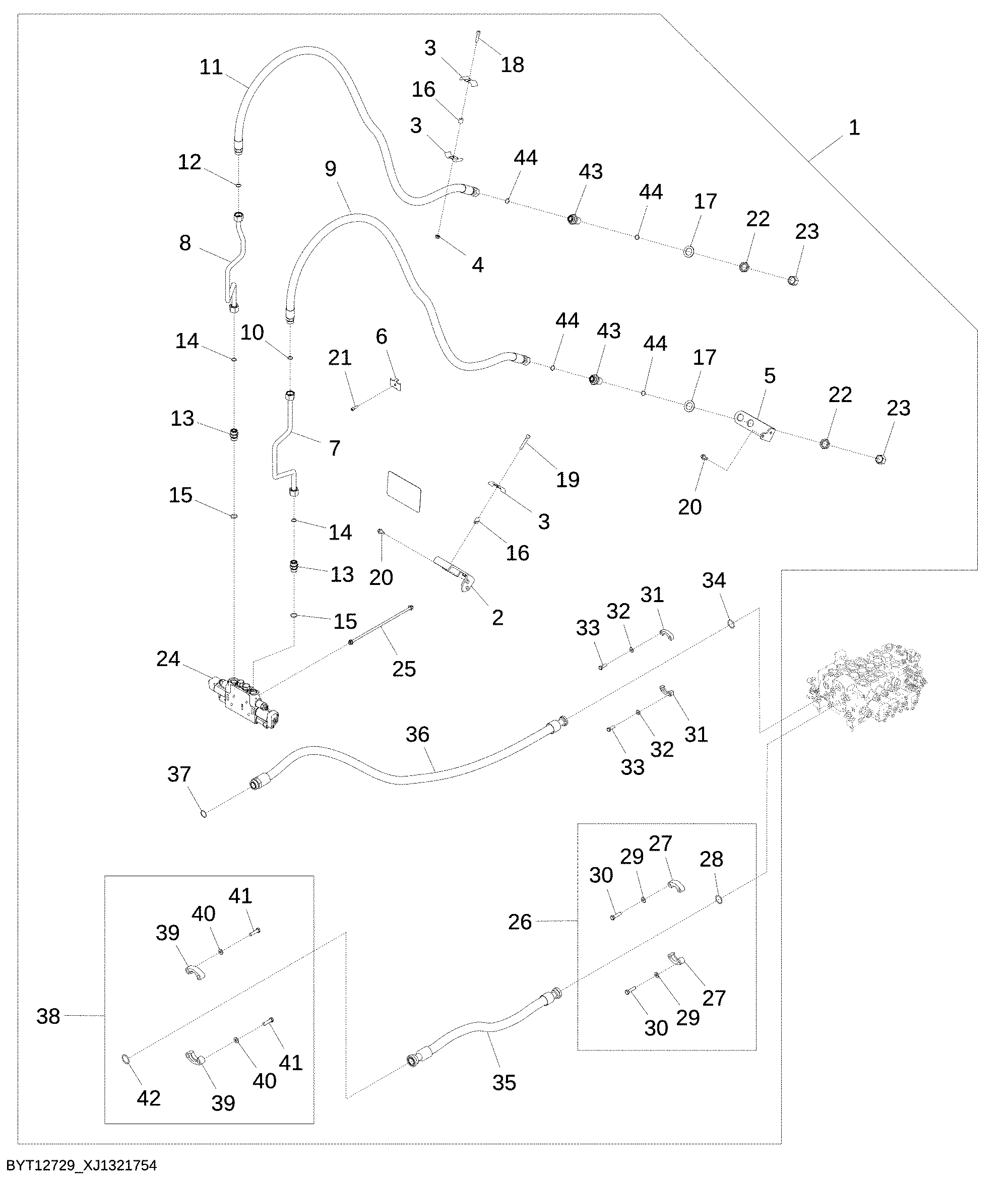

Four Function Auxiliary Control Valve and Hoses Kit, Z-Bar (15418 - )
