WIRING HARNESS (REAR) (SYNCSHUTTLE™ TRANSMISSION) (STRADDLE MOUNT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	RE262484	1	Diode	(SUB FOR RE153894)
3	AL76702	4	Relay	-
4	LVA13729	1	Relay	-
5	-	6	Part 5	LIGHT SWITCH
6	-	2	Part 6	MFWD SWITCH
7	-	1	Part 7	INSTRUMENTATION
8	-	1	Part 8	INSTRUMENTATION
9	-	1	Part 9	INSTRUMENTATION
10	-	1	Part 10	WARNING HORN
11	19M7775	2	Screw	M6 X 16, HS=10.9
12	12M7032	2	Lock Washer	8.400 mm
13	14H785	2	Nut	5/16"
14	14H631	2	Nut	0.190"
15	12M7060	2	Washer	5.300 mm
16	-	1	Part 16	KEY SWITCH
17	-	2	Part 17	HORN SWITCH
18	-	1	Part 18	TURN SIGNAL SWITCH
19	37M7061	2	Screw	M5 X 20
20	-	1	Part 20	STARTER RELAY
21	R138078	1	Grommet	-
22	-	1	Part 22	(TO FRONT HARNESS)
23	-	2	Part 23	(TO POWER CABLES)
24	-	1	Part 24	(TO REAR HARNESS)
25	-	1	Part 25	(TO HEADLAMP HARNESS)
26	-	1	Part 26	RIGHT HEADLAMP
27	-	1	Part 27	LEFT HEADLAMP
28	RE198440	1	Headlamp Wiring Harness	-
29	-	1	Part 29	GROUND SPEED SENSOR
30	-	1	Part 30	PTO SWITCH
31	-	1	Part 31	MFWD SOLENOID
32	-	3	Part 32	LEFT TAIL/TURN LAMP
33	-	2	Part 33	LEFT WARNING LAMP
34	-	2	Part 34	REAR WORK LAMP
35	-	1	Part 35	7-PIN TRAILER CONNECTOR
36	-	1	Part 36	7-PIN TRAILER CONNECTOR
37	-	3	Part 37	RIGHT TAIL/TURN LAMP
38	-	2	Part 38	RIGHT WARNING LAMP
39	RE164448	1	Starter Relay	-
40	-	1	Part 40	NEUTRAL START SWITCH / PARK SENSOR SWITCH
41	-	1	Part 41	SEAT SWITCH
42	-	2	Part 42	FUEL LEVEL SENDER
43	14M7194	2	Nut	M6
44	14M7297	2	Nut	M5
45	-	1	Part 45	(TO VEC) (GREEN)
46	-	1	Part 46	(TO VEC) (BLUE)
47	-	1	Part 47	(TO VEC) (GRAY)
48	-	1	Part 48	(TO VEC) (BLACK)
49	RE226316	1	Wiring Harness	-
..	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
..	19M7783	2	Screw	M10 X 16, HS=10.9

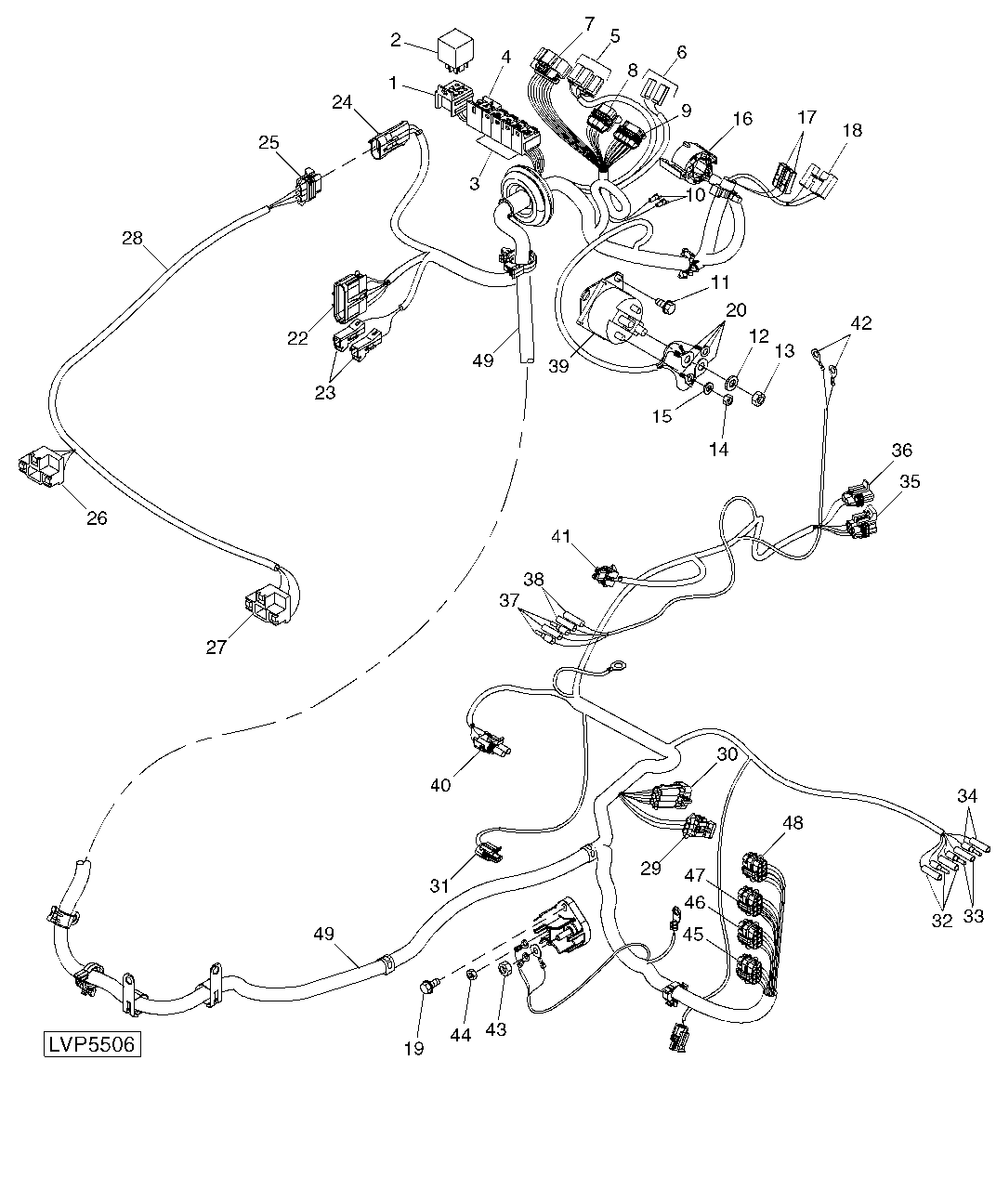

WIRING HARNESS (REAR) (SYNCSHUTTLE™ TRANSMISSION) (STRADDLE MOUNT)
