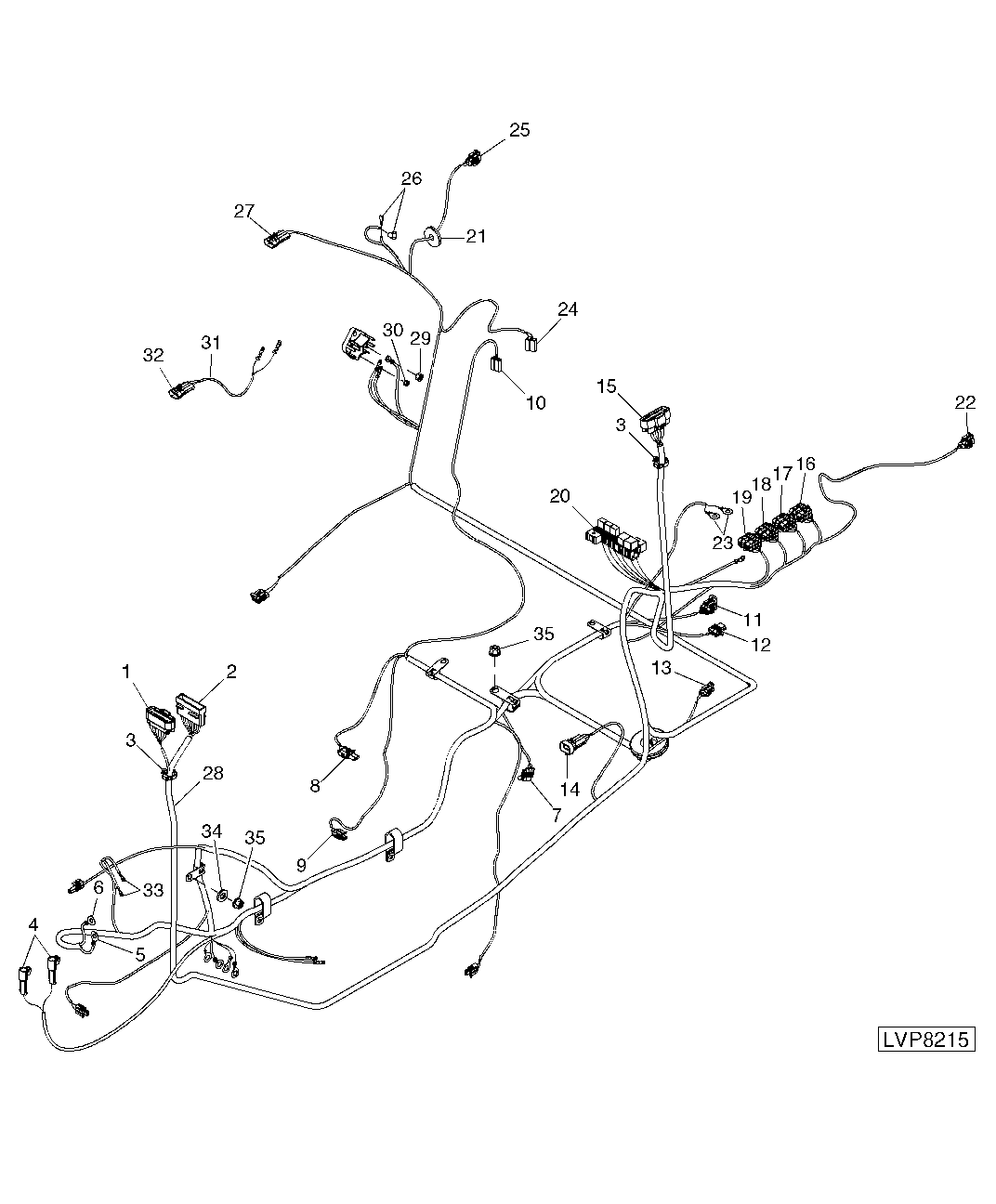

WIRING HARNESS (REAR) (SYNCSHUTTLE™ TRANSMISSION) (CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(TO CONSOLE HARNESS)
2	-	1	Part 2	(TO CONSOLE HARNESS)
3	H145832	2	Clip	-
4	-	2	Part 4	(TO POWER CABLES)
5	-	1	Part 5	(GROUND TO TRANSMISSION)
6	-	1	Part 6	CAB GROUND
7	-	1	Part 7	GROUND SPEED SENSOR
8	-	1	Part 8	NEUTRAL START SWITCH / PARK SENSOR SWITCH
9	-	1	Part 9	MFWD SOLENOID
10	-	1	Part 10	FRONT WASHER PUMP
11	-	1	Part 11	7-PIN TRAILER CONNECTOR
12	-	1	Part 12	7-PIN TRAILER CONNECTOR
13	-	1	Part 13	SEAT SWITCH
14	-	1	Part 14	PTO SWITCH
15	-	1	Part 15	(TO ROOF HARNESS)
16	-	1	Part 16	(TO VEC) (BLACK)
17	-	1	Part 17	(TO VEC) (GRAY)
18	-	1	Part 18	(TO VEC) (BLUE)
19	-	1	Part 19	(TO VEC) (GREEN)
20	-	1	Part 20	-
21	Z53033	2	Grommet	-
22	-	1	Part 22	LEFT TAIL/TURN LAMP
23	-	2	Part 23	VEC POWER
24	-	1	Part 24	REAR WASHER PUMP
25	-	1	Part 25	RIGHT TAIL/TURN LAMP
26	-	2	Part 26	CIGAR LIGHTER
27	-	1	Part 27	REAR WIPER OPTION
28	RE206238	1	Wiring Harness	-
29	14M7194	2	Nut	M6
30	14M7294	2	Nut	M10
31	RE178526	1	Wiring Harness	(TO AIR SEAT COMPRESSOR)
32	-	1	Part 32	(USE WITH MSG93)
33	-	2	Part 33	(TO FUEL SENDER)
34	12M7032	1	Lock Washer	8.400 mm
35	14M7298	8	Flange Nut	M8

WIRING HARNESS (REAR) (SYNCSHUTTLE™ TRANSMISSION) (CAB)
