Wiring Harness (Rear) (PowrReverser™ Transmission With Mechanical Hitch) (Isolated Open Operator Station)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(TO CONSOLE HARNESS)
2	-	1	Part 2	(TO CONSOLE HARNESS)
3	-	1	Part 3	(TO CONSOLE HARNESS)
4	-	2	Part 4	(TO POWER CABLES)
5	-	1	Part 5	HI SOLENOID
6	-	1	Part 6	COUNTERSHAFT SPEED SENSOR
7	-	1	Part 7	(GROUND TO TRANSMISSION)
8	-	1	Part 8	PLATFORM GROUND
9	-	2	Part 9	FUEL LEVEL SENDER
10	-	1	Part 10	FORWARD SOLENOID
11	-	1	Part 11	PRESSURE TRANSDUCER
12	-	1	Part 12	REVERSE SOLENOID
13	-	1	Part 13	CLUTCH ENABLE VALVE
14	14M7298	5	Flange Nut	M8
15	12M7032	1	Lock Washer	8.400 mm
16	-	1	Part 16	MFWD SOLENOID
17	-	1	Part 17	GROUND SPEED SENSOR
18	-	1	Part 18	PARK SENSOR SWITCH / NEUTRAL START SWITCH
19	-	1	Part 19	HYDRAULIC OIL PUMP
20	-	2	Part 20	REAR WORK LAMP
21	-	2	Part 21	LEFT WARNING LAMP
22	-	1	Part 22	ELECTRO-HYDRAULIC PTO SPEED SENSOR
23	-	1	Part 23	BACK-UP ALARM
24	-	1	Part 24	7-PIN TRAILER CONNECTOR
25	-	1	Part 25	7-PIN TRAILER CONNECTOR
26	-	1	Part 26	ELECTRO-HYDRAULIC PTO SOLENOID
27	-	1	Part 27	RIGHT WARNING LAMP
28	-	1	Part 28	HI/LO JOYSTICK
29	14M7194	2	Nut	M6
30	14M7297	2	Nut	M5
31	-	1	Part 31	RIGHT TAIL/TURN LAMP
32	-	1	Part 32	RIGHT FENDER FLOOD LAMP
33	-	1	Part 33	REAR PTO SWITCH
34	-	1	Part 34	LEFT TAIL/TURN LAMP
35	-	1	Part 35	VEC POWER
36	-	1	Part 36	(TO VEC) (BLACK)
37	-	1	Part 37	(TO VEC) (GRAY)
38	-	1	Part 38	(TO VEC) (BLUE)
39	-	1	Part 39	(TO VEC) (GREEN)
40	-	1	Part 40	SERVICE ADVISOR
41	-	1	Part 41	LEFT FENDER FLOOD LAMP
42	-	1	Part 42	PTO SWITCH
43	-	1	Part 43	SEAT SWITCH
44	-	2	Part 44	(TO TRACTOR CONTROLLER)
45	RE206239	1	Wiring Harness	-
46	R44302	1	Tie Band	-

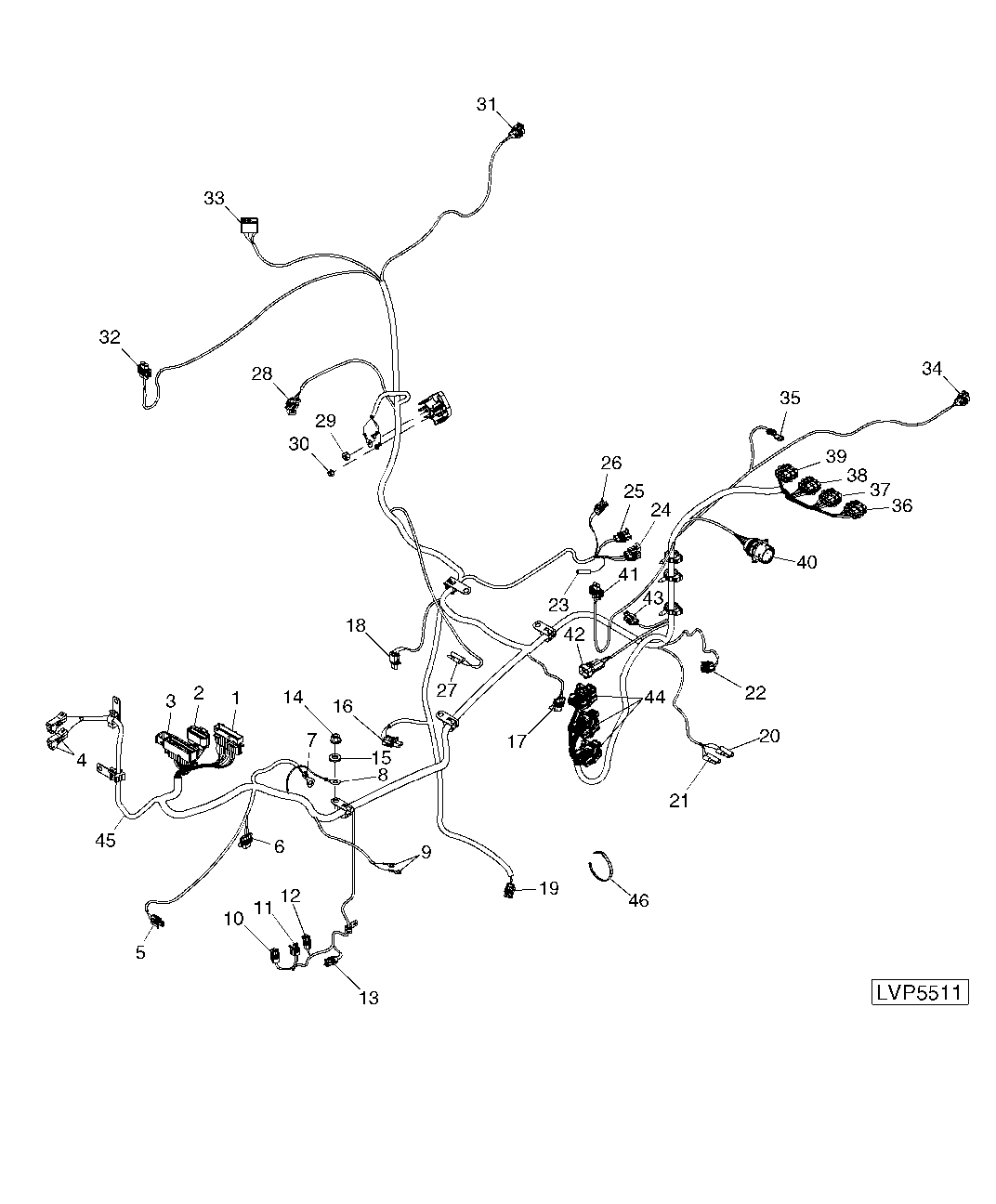

Wiring Harness (Rear) (PowrReverser™ Transmission With Mechanical Hitch) (Isolated Open Operator Station)
