Открытый узел

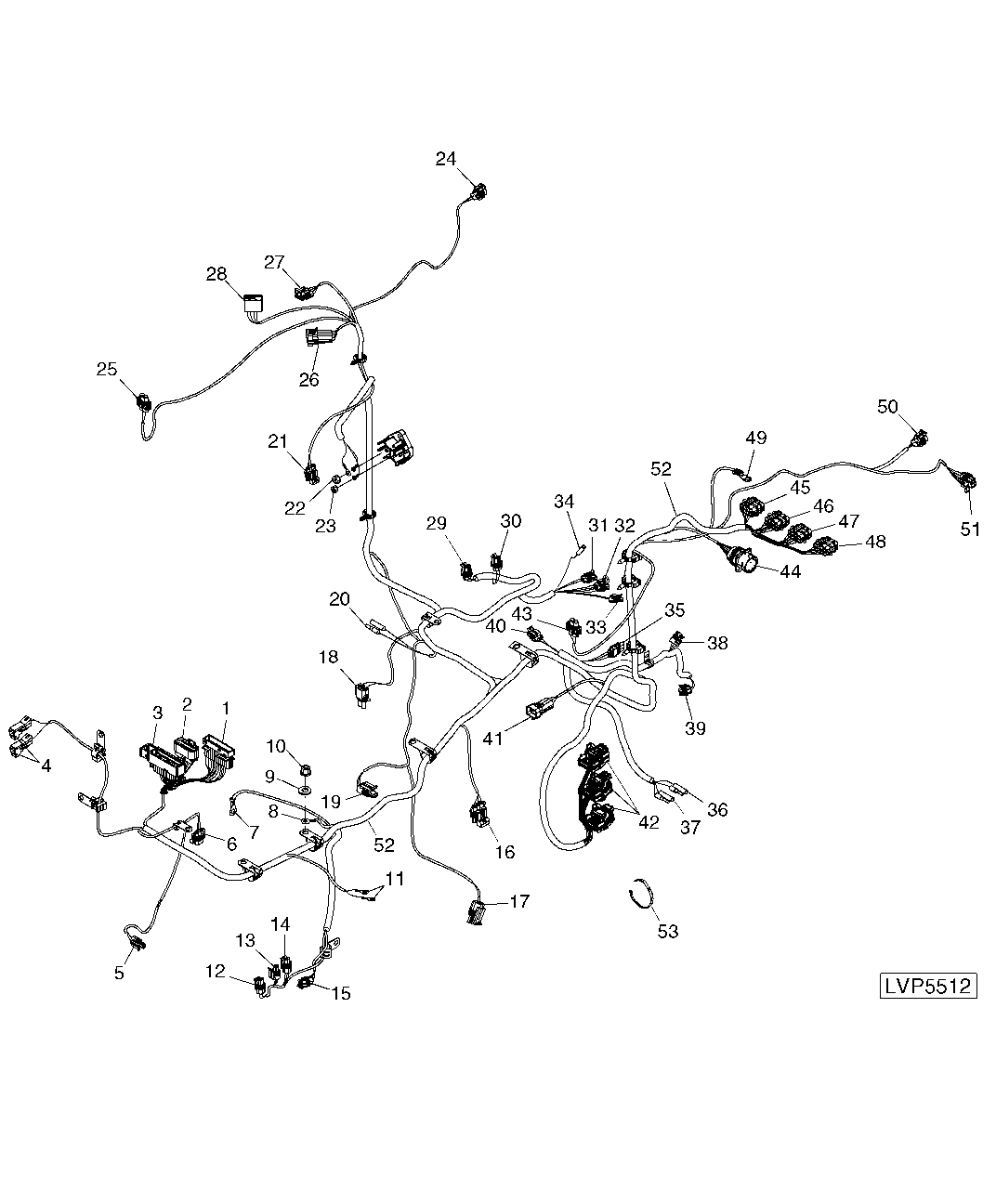

Wiring Harness (Rear) (PowrReverser™ Transmission With EH Hitch) (Isolated Open Operator Station)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(TO CONSOLE HARNESS)
2	-	1	Part 2	(TO CONSOLE HARNESS)
3	-	1	Part 3	(TO CONSOLE HARNESS)
4	-	2	Part 4	(TO POWER CABLES)
5	-	1	Part 5	HI SOLENOID
6	-	1	Part 6	COUNTERSHAFT SPEED SENSOR
7	-	1	Part 7	(GROUND TO TRANSMISSION)
8	-	1	Part 8	PLATFORM GROUND
9	12M7032	1	Lock Washer	8.400 mm
10	14M7298	5	Flange Nut	M8
11	-	2	Part 11	FUEL LEVEL SENDER
12	-	1	Part 12	FORWARD SOLENOID
13	-	1	Part 13	PRESSURE TRANSDUCER
14	-	1	Part 14	REVERSE SOLENOID
15	-	1	Part 15	CLUTCH ENABLE VALVE
16	-	1	Part 16	GROUND SPEED SENSOR
17	-	1	Part 17	MFWD SOLENOID
18	-	1	Part 18	PARK SENSOR SWITCH / NEUTRAL START SWITCH
19	-	1	Part 19	HYDRAULIC OIL PUMP
20	-	2	Part 20	RIGHT WARNING LAMP
21	-	1	Part 21	HI/LO JOYSTICK
22	14M7194	2	Nut	M6
23	14M7297	2	Nut	M5
24	-	1	Part 24	RIGHT TAIL/TURN LAMP
25	-	1	Part 25	RIGHT FENDER FLOOD LAMP
26	-	1	Part 26	HITCH RAISE/LOWER ASSEMBLY
27	-	1	Part 27	LOAD DEPTH SENSOR
28	-	1	Part 28	REAR PTO SWITCH
29	-	1	Part 29	HITCH LOWER
30	-	1	Part 30	HITCH RAISE
31	-	1	Part 31	ELECTRO-HYDRAULIC PTO SOLENOID
32	-	1	Part 32	7-PIN TRAILER CONNECTOR
33	-	1	Part 33	7-PIN TRAILER CONNECTOR
34	-	1	Part 34	BACK-UP ALARM
35	-	1	Part 35	HITCH FEEDBACK SENSOR
36	-	2	Part 36	REAR WORK LAMP
37	-	2	Part 37	LEFT WARNING LAMP
38	-	1	Part 38	HITCH DRAFT SENSOR
39	-	1	Part 39	ELECTRO-HYDRAULIC PTO SPEED SENSOR
40	-	1	Part 40	SEAT SWITCH
41	-	1	Part 41	PTO SWITCH
42	-	3	Part 42	(TO TRACTOR CONTROLLER)
43	-	1	Part 43	LEFT FENDER FLOOD LAMP
44	-	1	Part 44	SERVICE ADVISOR
45	-	1	Part 45	(TO VEC) (GREEN)
46	-	1	Part 46	(TO VEC) (BLUE)
47	-	1	Part 47	(TO VEC) (GRAY)
48	-	1	Part 48	(TO VEC) (BLACK)
49	-	1	Part 49	VEC POWER
50	-	1	Part 50	LEFT TAIL/TURN LAMP
51	-	1	Part 51	LEFT EXTERNAL HITCH SWITCH
52	RE198921	1	Chassis Wiring Harness	-
53	R44302	1	Tie Band	-

Wiring Harness (Rear) (PowrReverser™ Transmission With EH Hitch) (Isolated Open Operator Station)
