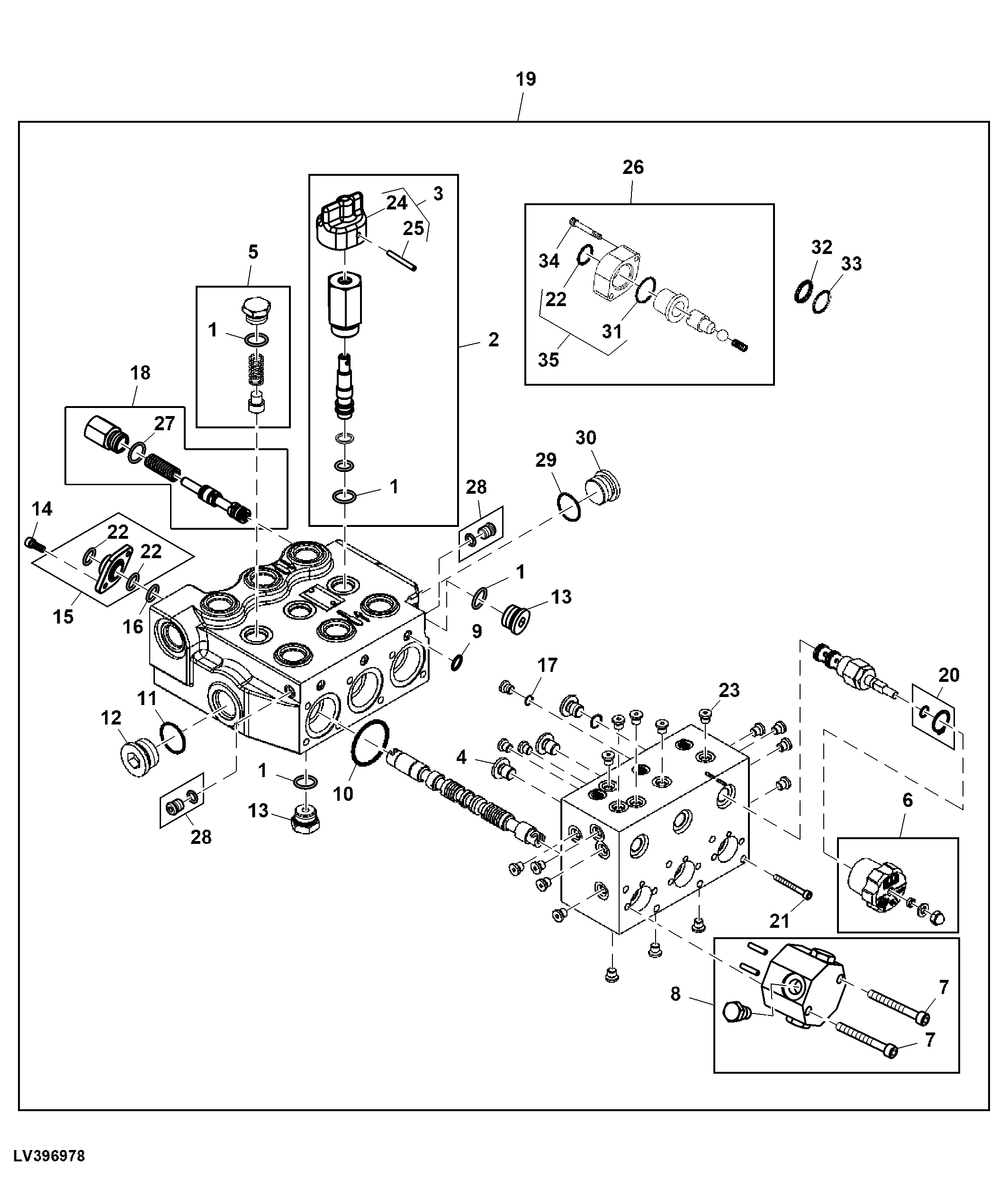

Triple Deluxe Rear Selective Control Valve (Original Equipment)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	5	O-Ring	-
2	RE284894	1	Valve Kit	Load Check and Flow Control USE WITH SJ12132
2	RE227883	1	Check Valve	USE WITH RE225817
3	RE284897	1	Valve Kit	Flow Control
4	TCU21979	3	Drain Plug	-
5	RE227882	2	Check Valve	Load Check
6	RE284898	3	Valve Kit	-
7	19M8110	6	Screw	M6 X 35
8	SJ12145	3	Detent Kit	SUB FOR RE284896
9	U40962	3	O-Ring	-
10	T31029	3	O-Ring	-
11	F3171R	1	O-Ring	-
12	R27175	1	Drain Plug	-
13	H204328	2	Fitting Plug	-
14	19M8553	6	Screw	M6 X 16
15	AL118383	3	Flange	-
16	R26448	3	O-Ring	-
17	R30903	13	O-Ring	-
18	RE284899	1	Valve Kit	Priority Valve USE WITH SJ12132
18	RE227885	1	Check Valve	USE WITH RE225817
19	SJ12132	1	Selective Control Valve	SUB FOR SJ11185, RE274560 AND RE225817
19	RE226692	3	Seal Kit	USE WITH RE225817
19	RE284895	3	Seal Kit	USE WITH SJ12132
20	SJ20573	3	Seal Kit	-
21	19M8071	12	Screw	M6 X 65
22	L37733	6	O-Ring	USE WITH SJ12132
22	L37733	3	O-Ring	USE WITH RE225817
23	R108038	13	Drain Plug	-
24	R95490	1	Knob	-
25	34H242	1	Spring Pin	1/8" X 7/16"
26	RE227886	3	Detent Kit	USE WITH RE225817
27	N203490	1	O-Ring	-
28	AT367551	3	Fitting Plug	-
29	51M7045	1	O-Ring	19.300 X 2.200 mm
30	R116115	1	Fitting	-
31	H63858	3	O-Ring	USE WITH RE225817
32	R51603	6	O-Ring	USE WITH RE225817
33	H63357	3	BACK-UP RING	USE WITH RE225817
34	19M8513	6	Screw	M6 X 40, USE WITH RE225817
35	RE228463	3	Float Kit	USE WITH RE225817
..	RE227884	1	Detent Kit	USE WITH RE225817

Triple Deluxe Rear Selective Control Valve (Original Equipment)

Нет текстового описания
