Открытый узел

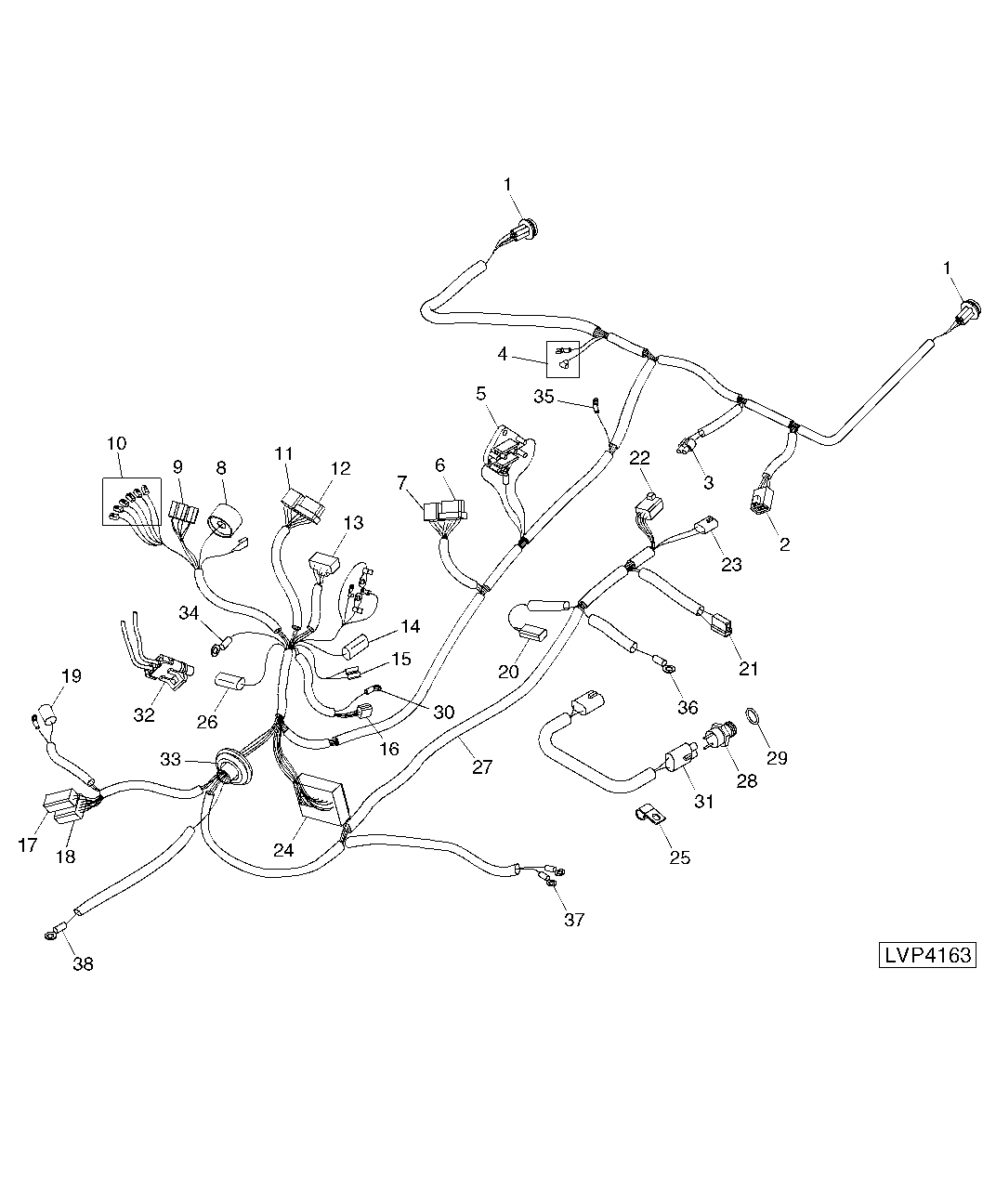

Wiring Harness (Rear) (With CAB) (Early Design)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7840	2	Elec. Connector Housing	TAILLIGHTS
2	57M7263	1	Elec. Connector Housing	REAR PTO SWITCH
3	57M7328	1	Elec. Connector Housing	SEAT SWITCH
4	U46662	1	Elec. Connector Terminal	LIGHTER (2 CONNECTORS)
5	R111931	1	Junction Block	-
6	57M7795	1	Elec. Connector Housing	ROOF HARNESS (10 PIN)
7	57M7553	1	Elec. Connector Housing	ROOF HARNESS (4 PIN)
8	RE46736	1	Electrical Connector Assy	KEY SWITCH
9	RE46735	1	Electrical Connector Assy	FRONT WIPER SWITCH
10	57M8815	6	Elec. Connector Housing	LIGHT SWITCH; SUB FOR T28583
11	57M7260	1	Elec. Connector Housing	INSTRUMENTATION (6 PIN)
12	57M7262	1	Elec. Connector Housing	INSTRUMENTATION (10 PIN)
13	57M7183	1	Elec. Connector Accessory	TURN SIGNAL SWITCH
14	57M7256	1	Elec. Connector Housing	HORN/TIMER
15	57M8815	2	Elec. Connector Housing	HORN SWITCH; SUB FOR T28583
16	-	1	Part 16	FRONT WIPER MOTOR
17	57M7304	1	Elec. Connector Housing	FRONT HARNESS (2 PIN)
18	57M7265	1	Elec. Connector Housing	FRONT HARNESS (10 PIN)
19	57M7295	1	Elec.Connect Locking Device	A/C COMPRESSOR CLUTCH
20	RE12363	1	Electrical Connector Assy	NEUTRAL START SWITCH
21	R77476	1	Electrical Connector Assy	FRONT WIPER PUMP
22	57M7260	1	Elec. Connector Housing	SEVEN PIN TRAILER (6 PIN)
23	57M7309	1	Elec. Connector Housing	SEVEN PIN TRAILER (2 PIN)
24	-	1	Part 24	(ORDER RE195157) (SEE SEPARATE ASSEMBLY)
25	T38377	1	Clamp	(SUB FOR T28949, THIS APPLICATION)
26	R78053	1	Electrical Connector Assy	RESISTOR
27	RE72778	1	Wiring Harness	(COLLARSHIFT TRANSMISSION) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(SYNCSHUTTLE™ TRANSMISSION) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(SYNCSHUTTLE™ TRANSMISSION WITH 540/540E) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(POWRREVERSER™ TRANSMISSION) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(COLLARSHIFT TRANSMISSION) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(SYNCSHUTTLE™ TRANSMISSION) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(SYNCSHUTTLE™ TRANSMISSION WITH 540/540E) (SUB RE195157) (ALSO ORDER (2) RE195158)
27	RE72778	1	Wiring Harness	(POWRREVERSER™ TRANSMISSION) (SUB RE195157) (ALSO ORDER (2) RE195158)
28	RE39116	1	Switch Kit	Neutral Start SUB FOR RE12411, THIS APPLICATION
29	R26448	1	O-Ring	-
30	-	1	Part 37	FRONT WIPER GROUND
31	RE63095	1	Wiring Harness	-
32	RE72059	1	Resistor	-
33	-	1	Part 40	FIREWALL
34	-	1	Part 41	GROUND
35	-	1	Part 42	-
36	-	1	Part 43	GROUND
37	-	2	Part 44	FUEL LEVEL SENDER
38	-	1	Part 45	STARTER MOTOR
