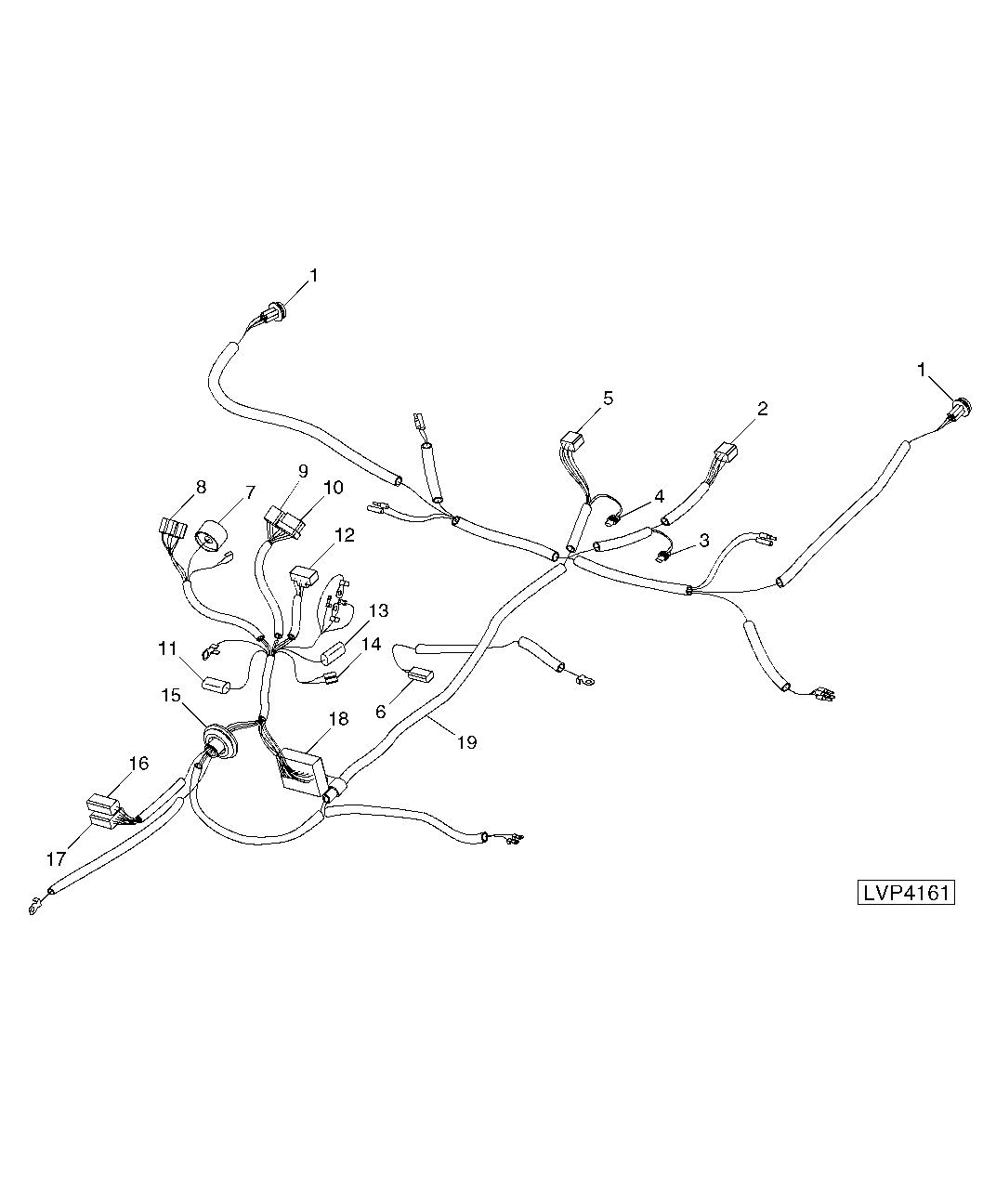

WIRING HARNESS (REAR) (ISOLATED OPEN OPERATOR STATION) (EARLY DESIGN)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R114917	2	Electrical Lamp Socket	TAILLIGHT
2	57M7263	1	Elec. Connector Housing	REAR PTO SWITCH
3	57M7328	1	Elec. Connector Housing	SEAT SWITCH
4	57M7306	1	Elec.Connect Locking Device	7 PIN TRAILER (6 PINS)
5	57M7260	1	Elec. Connector Housing	7 PIN TRAILER (2 PINS)
6	F120501	1	Electrical Connector Assy	NEUTRAL START SWITCH
7	RE46736	1	Electrical Connector Assy	KEY SWITCH
8	57M8815	1	Elec. Connector Housing	LIGHT SWITCH; SUB FOR T28583
9	57M7260	1	Elec. Connector Housing	INSTRUMENTATION (6 PIN)
10	57M7262	1	Elec. Connector Housing	INSTRUMENTATION (10 PIN)
11	R78053	1	Electrical Connector Assy	RESISTOR
12	57M7183	1	Elec. Connector Accessory	TURN SIGNAL SWITCH
13	57M7256	1	Elec. Connector Housing	HORN / TIMER
14	57M8815	2	Elec. Connector Housing	HORN SWITCH; SUB FOR T28583
15	R138078	1	Grommet	FIREWALL
16	57M7304	1	Elec. Connector Housing	FRONT HARNESS (2 PIN)
17	57M7265	1	Elec. Connector Housing	FRONT HARNESS (10 PIN)
18	-	1	Part 18	(ORDER RE195156) (ALSO ORDER (2) RE195158) (SEE SEPARATE ASSEMBLY)
19	RE190773	1	Chassis Wiring Harness	(SUB RE195156) (ALSO ORDER (2) RE195158) (SUB FOR RE73182)

WIRING HARNESS (REAR) (ISOLATED OPEN OPERATOR STATION) (EARLY DESIGN)
