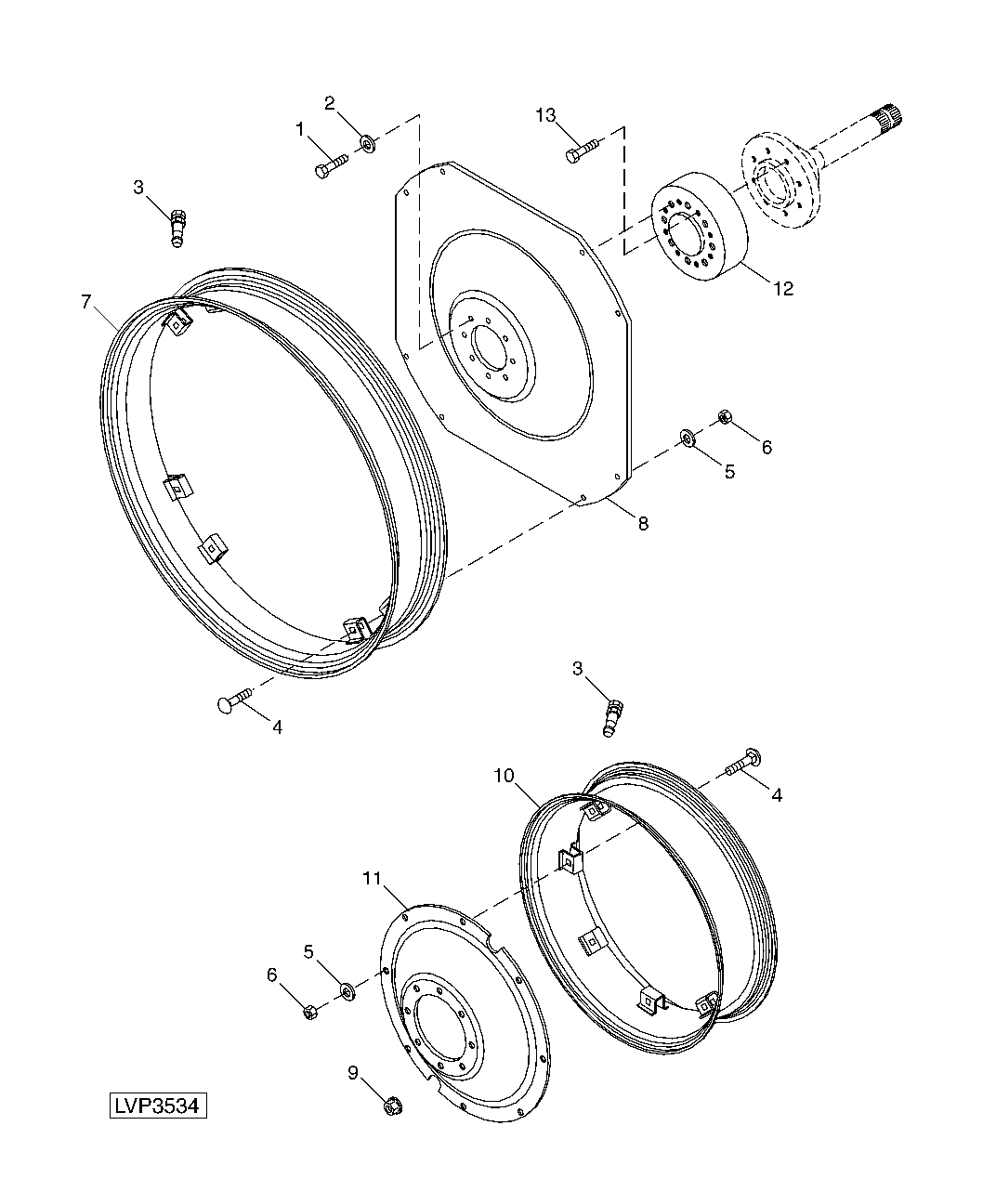

"Veggie" Wheels, MFWD ( - 420000)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R139904	16	Cap Screw	(REAR (230/95R48 TIRE)) (ALSO INCLUDES SN:)
2	24M7436	16	Washer	(REAR (230/95R48 TIRE)) (ALSO INCLUDES SN:) 15.300 X 32 X 4 mm
3	AT25226	2	Tire Valve Stem	(REAR (230/95R48 TIRE)) (FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) (SUB FOR RE72820, THIS APPLICATION)
4	03H2078	16	Bolt	(REAR (230/95R48 TIRE)) (FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) 5/8" X 3-1/4"
5	12H294	16	Lock Washer	(REAR (230/95R48 TIRE)) (FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) 5/8"
6	14H760	16	Nut	(REAR (230/95R48 TIRE)) (FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) 5/8"
7	RE72798	2	Rim	(REAR (230/95R48 TIRE)) (ALSO INCLUDES SN:)
8	R139632	2	Wheel Center	(REAR (230/95R48 TIRE)) (ALSO INCLUDES SN:)
9	14M7332	16	Flange Nut	(FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) M18
10	RE72797	2	Rim	(FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) 13.5 MM, OFFSET
10	RE189080	2	Wheel	(FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) 59.6 MM, OFFSET
11	R139628	2	Wheel	(FRONT (230/95R32 TIRE)) (ALSO INCLUDES SN:) (230/95R32 TIRE)
12	T22690	2	Extension	(REAR (230/95R48 TIRE)) (WITH CAB/ISOLATED OPEN OPERATOR STATION) (ALSO INCLUDES SN:) 101.5 MM (4")
13	19H2647	16	Cap Screw	(REAR (230/95R48 TIRE)) (WITH CAB/ISOLATED OPEN OPERATOR STATION) (ALSO INCLUDES SN:) 9/16" X 4-1/2"
