SINGLE (THIRD) SCV HYDRAULIC LINES (STRADDLE MOUNT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7043	4	O-Ring	(DUAL SCV) 15.300 X 2.200 mm
1	51M7043	2	O-Ring	(SINGLE SCV) 15.300 X 2.200 mm
1	51M7043	6	O-Ring	(TRIPLE SCV) 15.300 X 2.200 mm
2	38H5003	2	Adapter Fitting	-
3	T77857	8	O-Ring	(SINGLE SCV)
3	T77857	10	O-Ring	(DUAL SCV)
3	T77857	12	O-Ring	(TRIPLE SCV)
4	R124222	2	Adapter Fitting	(DUAL SCV) (TRIPLE SCV)
5	38H5071	2	Elbow Fitting	(TRIPLE SCV)
6	RE57712	2	Hydraulic Hose	(SINGLE SCV)
6	RE57712	4	Hydraulic Hose	(DUAL SCV)
6	RE57712	6	Hydraulic Hose	(TRIPLE SCV)
7	38H5076	2	Adapter Fitting	(SINGLE SCV)
7	38H5076	6	Adapter Fitting	(TRIPLE SCV)
7	38H5076	4	Adapter Fitting	(DUAL SCV)
8	51M7045	2	O-Ring	(SINGLE SCV) 19.300 X 2.200 mm
8	51M7045	4	O-Ring	(DUAL SCV) 19.300 X 2.200 mm
8	51M7045	6	O-Ring	(TRIPLE SCV) 19.300 X 2.200 mm
9	61M5003	2	Adapter Fitting	ORDER 38H5003, 51M7043 AND T77857
10	RE45822	2	Breakaway Coupler	(SINGLE SCV)
10	RE45822	4	Breakaway Coupler	(DUAL SCV)
10	RE45822	6	Breakaway Coupler	(TRIPLE SCV)
11	R74210	2	O-Ring	(TRIPLE SCV) +10°C (50°F), BELOW
11	R83630	1	O-Ring	+10°C (50°F), ABOVE
12	19M7866	2	Screw	M8 X 20, (HS=10.9)
13	R193412	1	Bracket	-
14	19M7897	2	Screw	M8 X 35
15	14M7298	4	Flange Nut	M8
16	R120797	4	Snap Ring	(SINGLE SCV)
16	R120797	8	Snap Ring	(DUAL SCV)
16	R120797	12	Snap Ring	(TRIPLE SCV)
17	W42421	1	Plug	(TRIPLE SCV) ORANGE (NSEP) (ORDER AW28043)
18	-	1	Part 33	(TRIPLE SCV) GREEN (NSEP) (ORDER AW28043)
19	W42417	1	Plug	(DUAL SCV) (TRIPLE SCV) BLACK
20	-	1	Part 35	(DUAL SCV) (TRIPLE SCV) YELLOW (NSEP) (ORDER AW28043)
21	-	1	Part 36	BLUE (NSEP) (ORDER AW28043)
22	-	1	Part 37	RED (NSEP) (ORDER AW28043)
23	AW28043	1	Plug	COLORED PLUGS
24	RE45981	1	Drain Valve	-
25	TY22324	1	Bulk Hose	-
26	61M5076	2	Adapter Fitting	(SINGLE SCV) ORDER 38H5076, 51M7045 AND T77857
26	61M5076	4	Adapter Fitting	(DUAL SCV) ORDER 38H5076, 51M7045 AND T77857
26	61M5076	6	Adapter Fitting	(TRIPLE SCV) ORDER 38H5076, 51M7045 AND T77857
27	61M5071	2	Elbow Fitting	(TRIPLE SCV) ORDER 38H5071, 51M7043 AND T77857

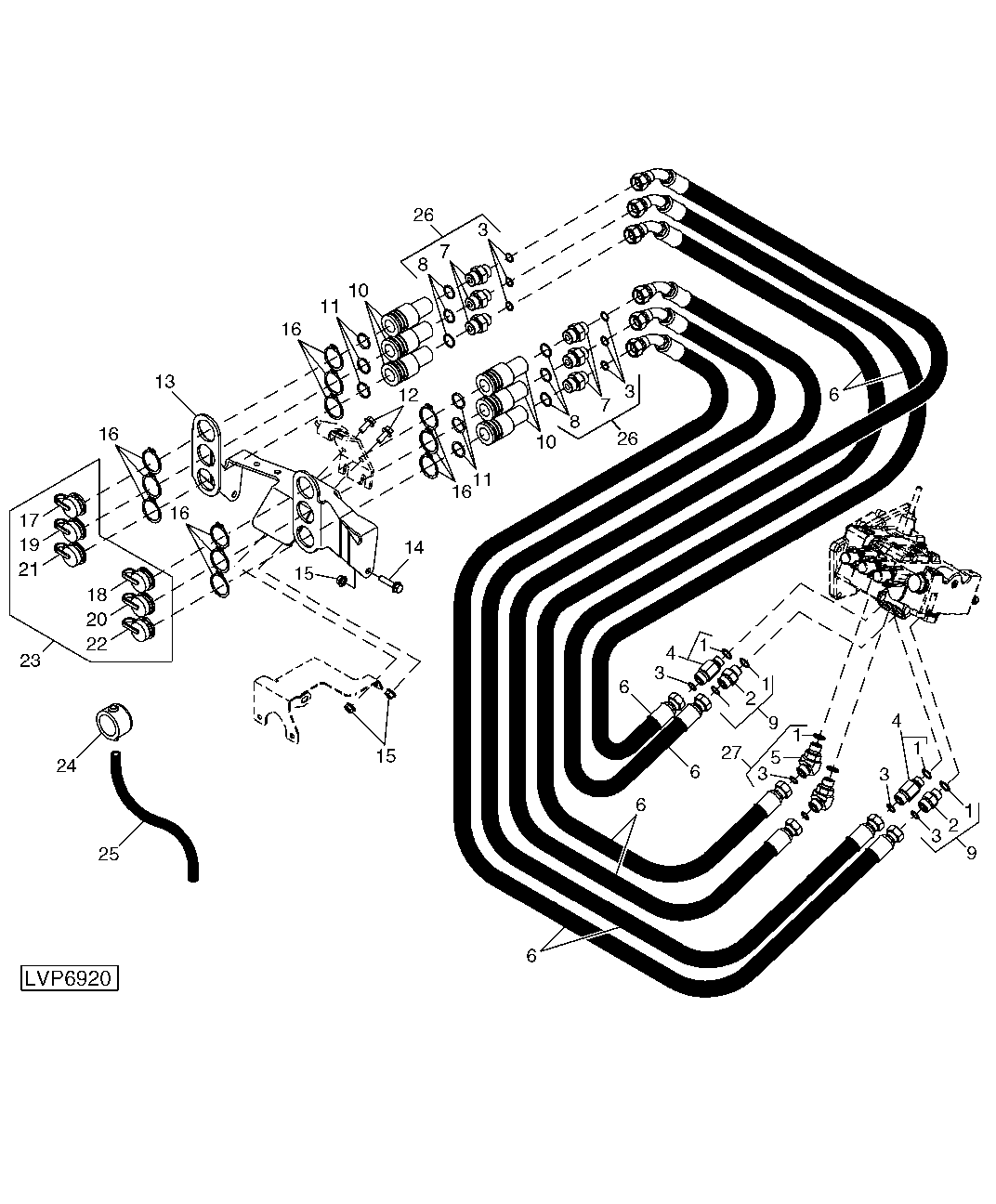

SINGLE (THIRD) SCV HYDRAULIC LINES (STRADDLE MOUNT)
