Открытый узел

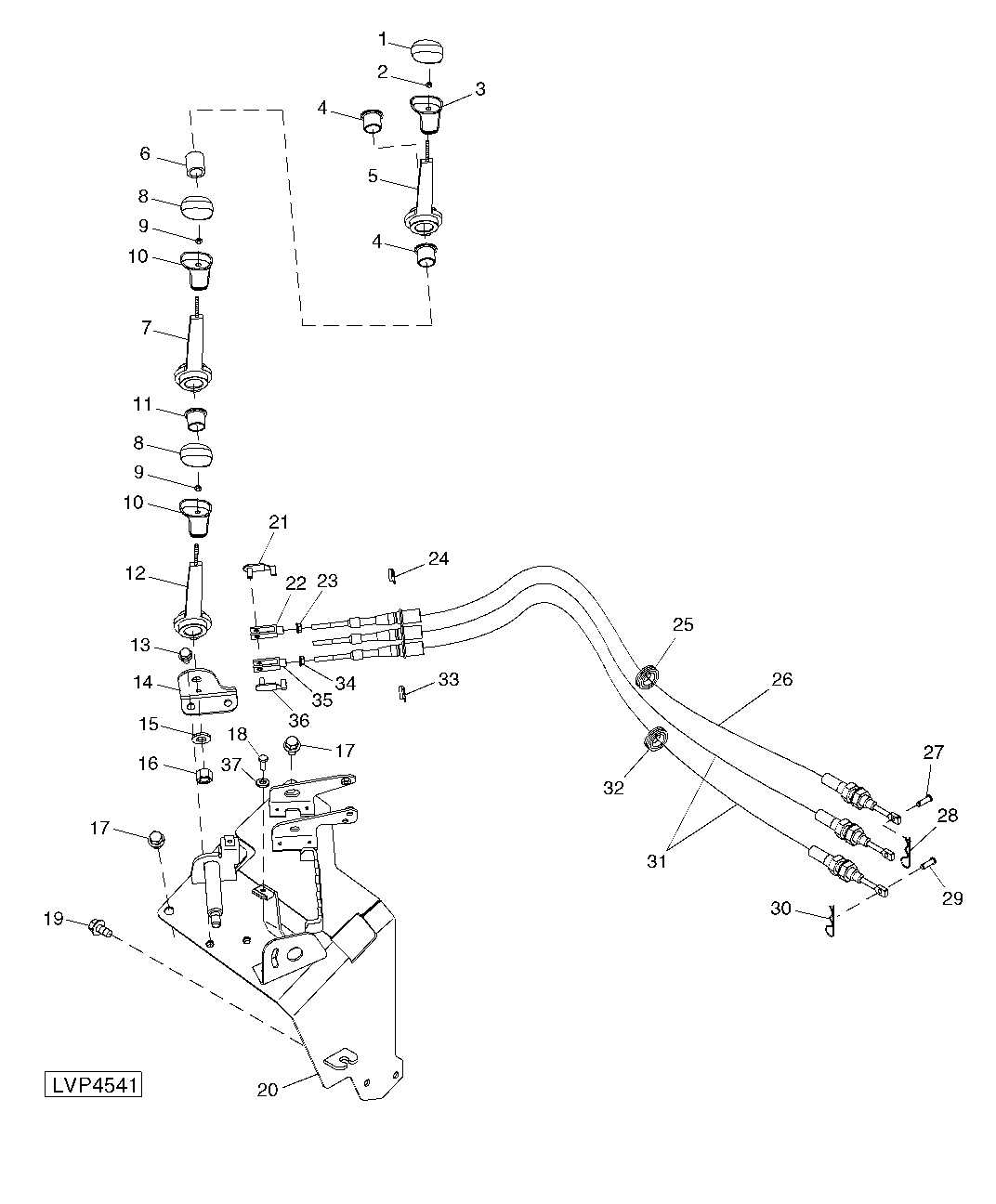

SCV LEVERS AND BRACKET (WITH CAB/ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M113899	1	Insert	(TRIPLE)
2	M111717	1	Nut	(TRIPLE)
3	L77747	1	Knob	(TRIPLE)
4	L110766	2	Bushing	(TRIPLE)
5	RE188887	1	Control Lever	(TRIPLE) (SUB FOR RE72759)
6	L101931	1	Spacer	(DUAL)
7	RE188886	1	Control Lever	(TRIPLE) (DUAL) (SUB FOR RE72758)
8	M113899	2	Insert	(TRIPLE) (DUAL)
9	M111717	2	Nut	(TRIPLE) (DUAL)
10	L77747	2	Knob	(TRIPLE) (DUAL)
11	L110766	1	Bushing	(TRIPLE) (DUAL)
12	RE188885	1	Lever	(TRIPLE) (DUAL) (SUB FOR RE72757)
13	19M7865	2	Screw	(TRIPLE) (DUAL) M8 X 16, (HS=10.9)
14	R139524	1	Bracket	(TRIPLE) (DUAL)
15	24M7111	2	Washer	(TRIPLE) (DUAL) 13 X 25 X 3 mm
16	14M7168	2	Lock Nut	(TRIPLE) (DUAL) M12
17	19M7783	3	Screw	(TRIPLE) (DUAL) M10 X 16, (HS=10.9)
18	21M7292	2	Screw	(TRIPLE) (DUAL) M6 X 16
19	19M7784	2	Screw	(TRIPLE) (DUAL) M10 X 20, (HS=10.9)
20	RE72754	1	Bracket	(TRIPLE) (DUAL)
21	45M7080	1	Spring Locking Pin	(TRIPLE)
22	L80052	1	Yoke	(TRIPLE)
23	14M7303	1	Flange Nut	(TRIPLE) M6
24	R112612	1	Snap Ring	(TRIPLE) (SUB FOR R106466)
25	R62356	1	Grommet	(TRIPLE) (SUB FOR R66626, THIS APPLICATION)
26	RE184779	1	Push Pull Cable	(TRIPLE) (SUB FOR RE177769, THIS APPLICATION)
27	R128357	1	Pin Fastener	(TRIPLE)
28	M112711	1	Pin	(TRIPLE) (SUB FOR M800051, THIS APPLICATION)
29	R128357	2	Pin Fastener	(TRIPLE) (DUAL)
30	M112711	2	Pin	(TRIPLE) (DUAL) (SUB FOR M800051, THIS APPLICATION)
31	RE184779	2	Push Pull Cable	(TRIPLE) (DUAL) (SUB FOR RE177769, THIS APPLICATION)
32	R62356	2	Grommet	(TRIPLE) (DUAL) (SUB FOR R66626, THIS APPLICATION)
33	R112612	2	Snap Ring	(TRIPLE) (DUAL) (SUB FOR R106466)
34	14M7303	2	Flange Nut	(TRIPLE) (DUAL) M6
35	L80052	2	Yoke	(TRIPLE) (DUAL)
36	45M7080	2	Spring Locking Pin	(TRIPLE) (DUAL)
37	24M7251	2	Washer	(TRIPLE) (DUAL) 6.400 X 18 X 1.600 mm

SCV LEVERS AND BRACKET (WITH CAB/ISOLATED OPEN OPERATOR STATION)
