ROCKSHAFT CONTROL LINKAGE (WITH CAB/ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H21957	1	O-Ring	-
2	R105173	1	Bearing Housing W/O Bearing	-
3	19M8533	2	Screw	M10 X 25, (HS=10.9)
4	14M7273	2	Nut	M8
5	R105168	1	Washer	-
6	R105166	1	Spacer	-
7	P48347	1	O-Ring	-
8	RE73375	1	Lever	NSEP (ORDER RE73374)
9	R105208	1	Bushing	-
10	RE73374	1	Shaft	-
11	R105198	2	Disk	-
12	R105175	2	Plate	-
13	RE46035	1	Plate	-
14	R176925	1	Lever	-
15	24M7238	2	Washer	8.700 X 17 X 2 mm
16	19M7865	2	Screw	M8 X 16, (HS=10.9)
17	12M6601	4	Disk Spring	14.200 X 28 X 1.500 mm
18	P51212	2	O-Ring	-
19	19M7663	2	Cap Screw	M8 X 70, (HS=10.9)
20	R105216	1	Washer	-
21	R114422	1	Spacer	-
22	R105164	1	Bracket	-
23	14M7274	3	Nut	M10
24	19M8909	2	Screw	M10 X 25
25	24H1781	1	Washer	13/32" X 7/8" X 1/4"
26	19M7835	1	Screw	M10 X 35, (HS=10.9), (SUB FOR 19M8910)
27	RE42501	1	Link End	-
28	11M7009	1	Cotter Pin	2 X 16 mm
29	R105187	1	Compression Spring	-
30	24M7096	2	Washer	10.500 X 18 X 1.600 mm
31	R114429	1	Rod	-
32	R105189	1	Clevis	-
33	R26871	2	Snap Ring	-
34	24H1849	2	Washer	17/32" X 1" X 0.036"
35	-	1	Part 35	NSEP (SUB FOR RE42488) (ORDER RE46010)
36	R114360	1	Washer	-
37	R114057	1	Lever	-
38	24M7038	1	Washer	13.500 X 24 X 2.500 mm
39	R105183	1	Shaft	-
40	26H70	2	Shaft Key	1/8" X 1/2"
41	14M7401	1	Lock Nut	M12
42	R105184	1	Lever	ORDER RE45979
43	R114056	1	Pin	-
44	RE45979	1	Lever	INCLUDES R114056
45	24M7038	1	Washer	13.500 X 24 X 2.500 mm
46	R105201	1	Pin	-
47	R105186	1	Bolt	-
48	19M8505	1	Screw	M6 X 25, (HS=12.9)
49	RE42487	2	Lever	-
50	R72653	4	Snap Ring	-
51	R105174	2	Link	-
52	RE42486	2	Lever	-
53	R32507	1	Snap Ring	-
54	19M8511	1	Screw	M6 X 22, (HS=12.9)
55	R105208	1	Bushing	-
56	34M7201	1	Spring Pin	4 X 10 mm
57	RE46010	1	Lever	-

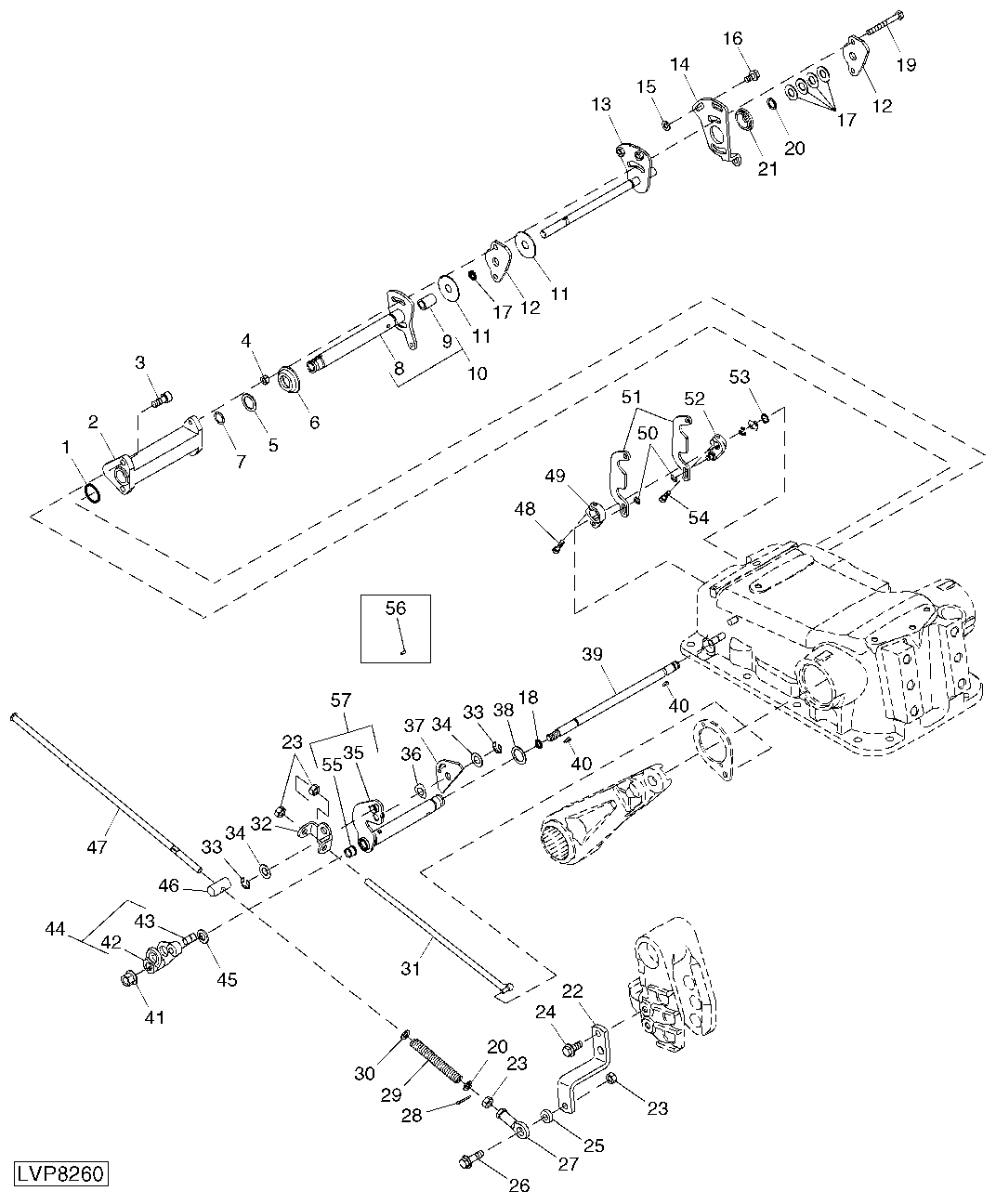

ROCKSHAFT CONTROL LINKAGE (WITH CAB/ISOLATED OPEN OPERATOR STATION)
