Открытый узел

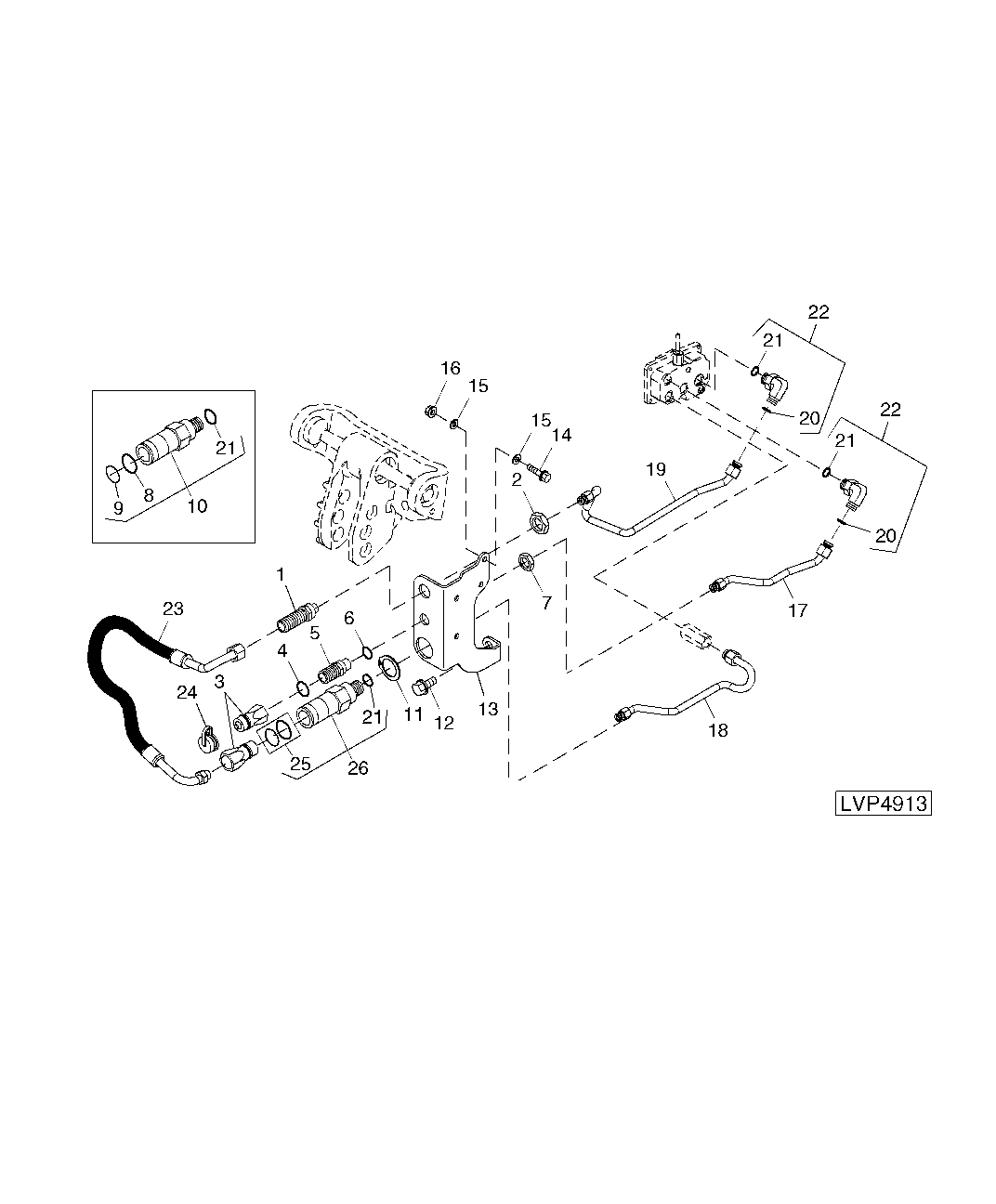

POWER BEYOND QUICK COUPLER KIT (WITHOUT SCV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
2	T80306	1	Nut	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
3	AR94522	2	Hydr. Quick Coupler Plug	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
4	R26375	1	O-Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
5	M135646	1	Union Fitting	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
6	T77857	1	O-Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
7	T78716	1	Nut	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
8	U45858	1	Back-Up Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
9	P47889	1	O-Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
10	RE161000	1	Hyd. Quick-Connect Coupler	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SUB RE219422)
11	R120797	2	Snap Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
12	19M8672	1	Screw	(WITH CAB/ISOLATED OPEN OPERATOR STATION) M14 X 25, (HS=10.9)
13	RE187718	1	Bracket	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
14	19M8317	1	Screw	(WITH CAB/ISOLATED OPEN OPERATOR STATION) M8 X 40, (HS=10.9)
15	24M7232	2	Washer	(WITH CAB/ISOLATED OPEN OPERATOR STATION) 8.700 X 17 X 2 mm
16	14M7298	1	Flange Nut	(WITH CAB/ISOLATED OPEN OPERATOR STATION) M8
17	RE188012	1	Oil Tube	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
18	RE188013	1	Oil Tube	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
19	RE188042	1	Oil Tube	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
20	T77932	2	O-Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
21	51M7045	3	O-Ring	(WITH CAB/ISOLATED OPEN OPERATOR STATION) 19.300 X 2.200 mm
22	38H5018	2	Elbow Fitting	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
23	RE188369	1	Hydraulic Hose	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
24	W42411	1	Cap	(WITH CAB/ISOLATED OPEN OPERATOR STATION) BLACK
25	RE186599	1	Seal	(WITH CAB/ISOLATED OPEN OPERATOR STATION)
26	RE219422	1	Hyd. Quick-Connect Coupler	(WITH CAB/ISOLATED OPEN OPERATOR STATION)

POWER BEYOND QUICK COUPLER KIT (WITHOUT SCV)

Нет текстового описания
