Открытый узел

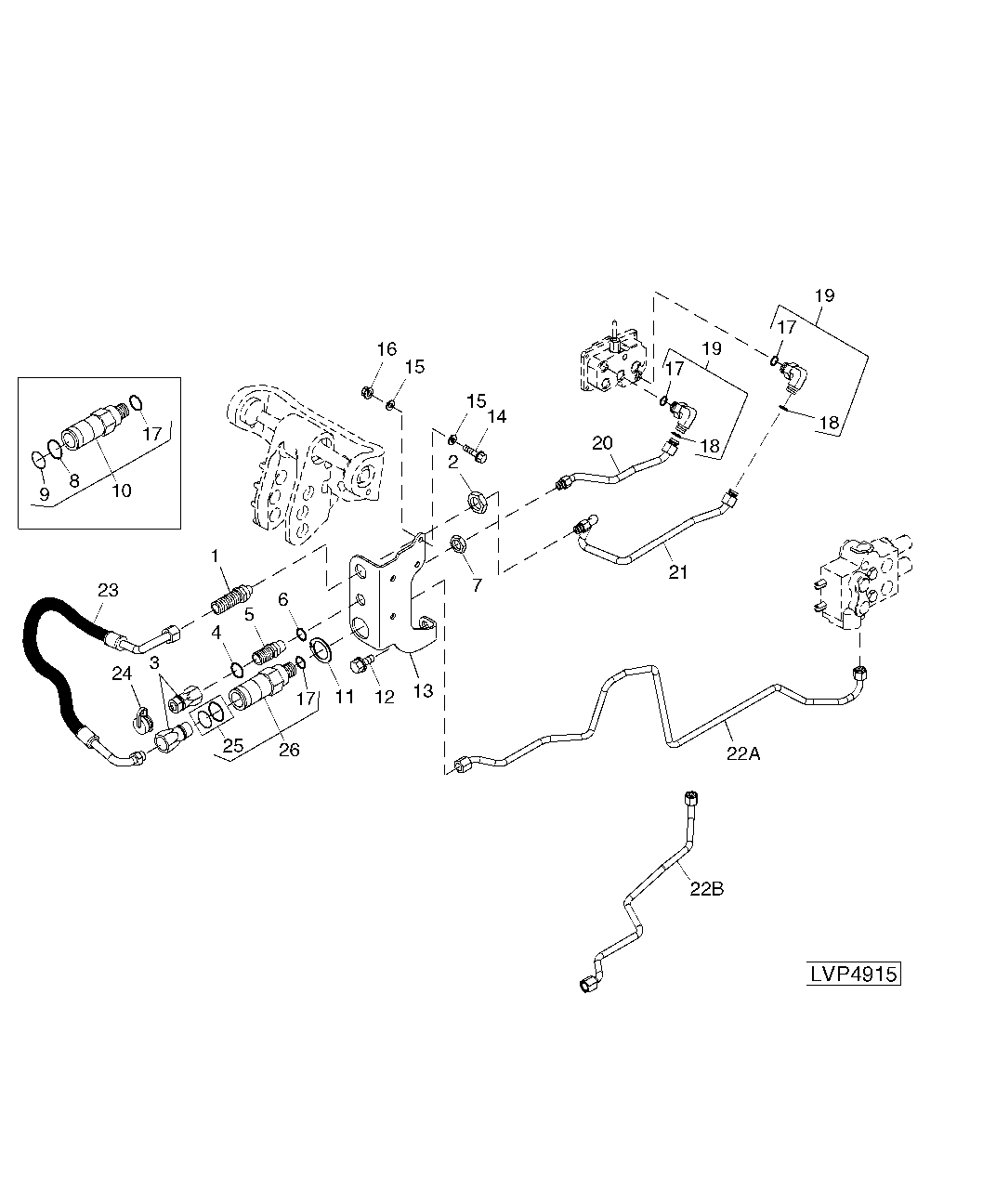

POWER BEYOND QUICK COUPLER KIT (WITH MID SCV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
2	T80306	1	Nut	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
3	AR94522	2	Hydr. Quick Coupler Plug	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
4	R26375	1	O-Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
5	M135646	1	Union Fitting	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
6	T77857	1	O-Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
7	T78716	1	Nut	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
8	U45858	1	Back-Up Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
9	P47889	1	O-Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
10	RE161000	1	Hyd. Quick-Connect Coupler	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C), (ORDER RE322903)
11	R120797	2	Snap Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
12	19M8672	1	Screw	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) M14 X 25, (HS=10.9), (C)
13	RE187718	1	Bracket	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
14	19M8317	1	Screw	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) M8 X 40, (HS=10.9), (C)
15	24M7232	2	Washer	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) 8.700 X 17 X 2 mm, (C)
16	14M7298	1	Flange Nut	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) M8, (C)
17	51M7045	3	O-Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) 19.300 X 2.200 mm, (C)
18	T77932	2	O-Ring	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
19	38H5018	2	Elbow Fitting	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
20	RE188012	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
21	RE188042	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
23	RE188369	1	Hydraulic Hose	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
24	W42411	1	Cap	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C), BLACK
25	RE186599	1	Seal	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C)
26	RE322903	1	Hyd. Quick-Connect Coupler	(ISOLATED OPEN OPERATOR STATION) (WITH CAB) (C); SUB FOR RE219422
22A	RE188040	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION) (C)
22B	RE220055	1	Oil Tube	(WITH CAB)

POWER BEYOND QUICK COUPLER KIT (WITH MID SCV)

Нет текстового описания
