HYDRAULIC LINES TRIPLE REAR/DUAL MID (W/CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	3	Screw	M10 X 20, (HS=10.9)
2	R180432	1	Bracket	-
3	RE180433	1	Bracket	-
4	19M7786	5	Screw	M10 X 30, (HS=10.9)
5	R180300	1	Bracket	-
6	19M7979	2	Screw	M8 X 55, (HS=10.9)
7	H121168	4	Plate	-
8	H120847	4	Clamp	-
9	14M7396	2	Lock Nut	M8
10	RE178131	1	Oil Line	-
11	RE178289	1	Oil Line	-
12	T77613	8	O-Ring	-
13	51M7045	13	O-Ring	19.300 X 2.200 mm
14	38H5004	6	Adapter Fitting	-
15	RE179202	1	Selective Control Valve	-
16	R180437	1	Bracket	-
17	19M7775	4	Screw	M6 X 16, (HS=10.9)
18	U45858	6	Back-Up Ring	-
19	P47889	6	O-Ring	-
20	RE73041	6	Quick Coupler	(SUB RE219421)
21	-	1	Part 21	ORANGE (NSEP) (ORDER AW28043)
22	W42420	1	Plug	GREEN (NSEP) (ORDER AW28043)
23	W42417	1	Plug	BLACK
24	-	1	Part 24	YELLOW (NSEP) (ORDER AW28043)
25	W42416	1	Plug	BLUE (NSEP) (ORDER AW28043)
26	W42418	1	Plug	RED (NSEP) (ORDER AW28043)
27	AW28043	1	Plug	COLORED PLUGS
28	T77932	3	O-Ring	-
29	38H5018	1	Elbow Fitting	-
30	61M5018	1	Elbow Fitting	-
31	RE207675	1	Oil Line	(A)
32	RE73283	1	Check Valve	-
34	RE186599	6	Seal	-
35	RE219421	6	Hyd. Quick-Connect Coupler	-
..	RE182798	1	Kit	TRIPLE REAR SCV (COMPLETE GOODS) (INCL LEVER, VALVE AND LINES)
..	RE182797	1	Kit	DUAL MID SCV (COMPLETE GOODS) (INCL JOYSTICK, VALVE, LINES AND ITEMS MARKED (A))
..	LVB25193	1	Kit	DUAL SCV (COMPLETE GOODS) (ALSO INCLUDES LEVERS AND LINES)
33A	RE73376	1	Oil Line	(SUB RE223237) (ALSO ORDER 38H5018 AND T77932)
33B	RE223237	1	Oil Line	-

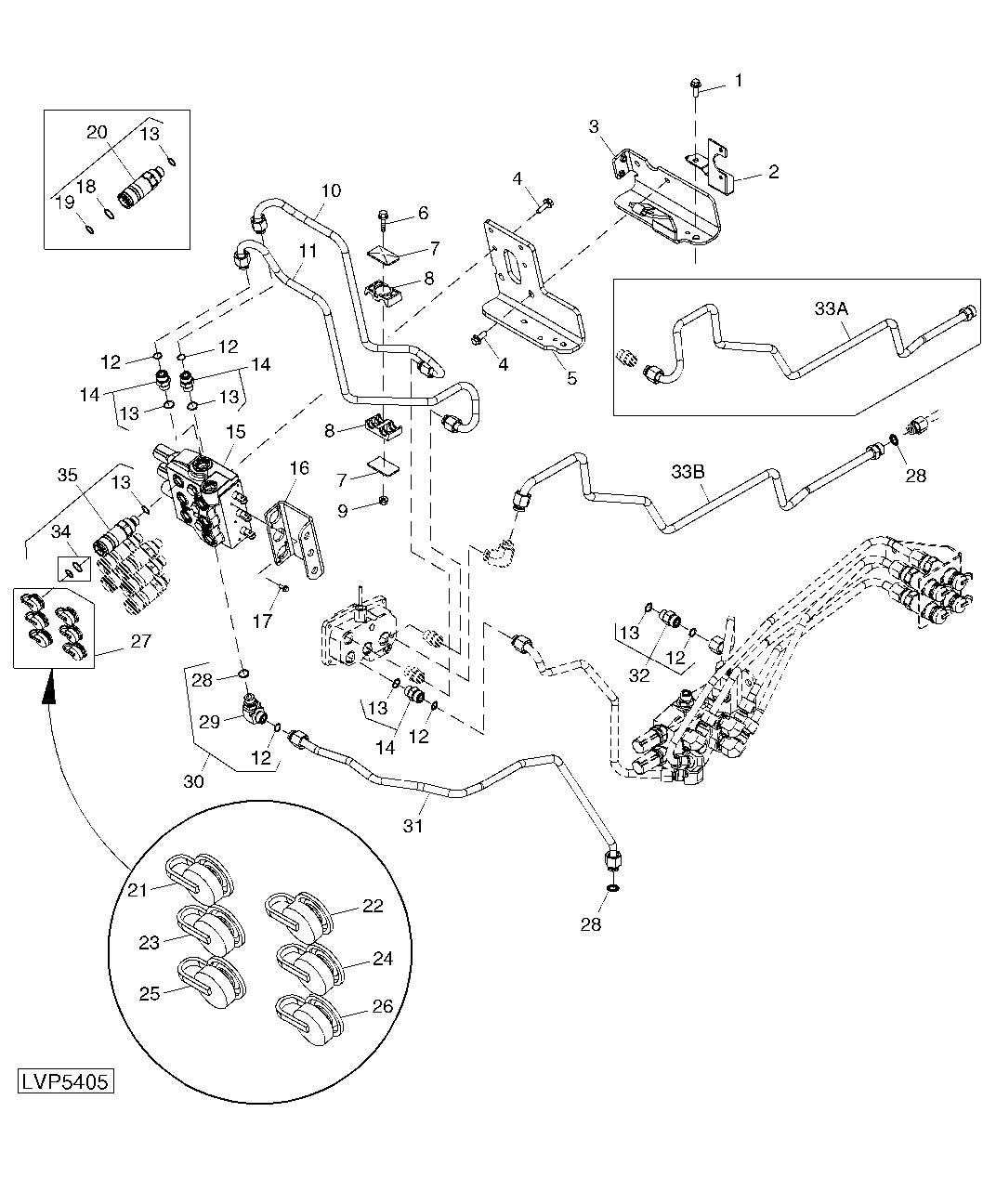

HYDRAULIC LINES TRIPLE REAR/DUAL MID (W/CAB)
