HYDRAULIC LINES REAR AND MID SCV (ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE178289	1	Oil Line	-
2	RE178131	1	Oil Line	-
4	RE73381	1	Oil Line	-
5	RE73382	1	Oil Line	-
6	RE178132	1	Oil Line	-
7	T77613	9	O-Ring	(USE WITH RE73376)
7	T77613	8	O-Ring	(USE WITH RE223237)
8	51M7045	19	O-Ring	(TRIPLE SCV) 19.300 X 2.200 mm, (USE WITH RE73376)
8	51M7045	18	O-Ring	(TRIPLE SCV) 19.300 X 2.200 mm, (USE WITH RE223237)
8	51M7045	17	O-Ring	(DUAL SCV) 19.300 X 2.200 mm, (USE WITH RE73376)
8	51M7045	16	O-Ring	(DUAL SCV) 19.300 X 2.200 mm, (USE WITH RE223237)
9	T77932	5	O-Ring	(USE WITH RE73376)
9	T77932	7	O-Ring	(USE WITH RE223237)
10	38H5004	7	Adapter Fitting	(USE WITH RE73376)
10	38H5004	6	Adapter Fitting	(USE WITH RE223237)
11	RE181847	1	Fitting	-
12	RE73283	1	Check Valve	-
13	38H5018	2	Elbow Fitting	(USE WITH RE73376)
13	38H5018	3	Elbow Fitting	(USE WITH RE223237)
14	R180437	1	Bracket	(TRIPLE SCV) (SHOWN)
14	R249808	1	Bracket	(DUAL SCV) (SUB FOR R180431)
15	R180300	1	Bracket	-
16	RE180433	1	Bracket	-
17	19M7786	3	Screw	M10 X 30, (HS=10.9)
18	R180432	1	Bracket	-
19	19M7784	3	Screw	M10 X 20, (HS=10.9)
20	RE179202	1	Selective Control Valve	(TRIPLE SCV) (REAR SCV) (SHOWN)
20	RE179201	1	Selective Control Valve	(DUAL SCV) (REAR SCV)
21	RE179201	1	Selective Control Valve	(MID MOUNT)
22	U45858	10	Back-Up Ring	(TRIPLE SCV)
22	U45858	8	Back-Up Ring	(DUAL SCV)
23	P47889	10	O-Ring	(TRIPLE SCV)
23	P47889	8	O-Ring	(DUAL SCV)
24	RE186599	10	Seal	(TRIPLE SCV)
24	RE186599	8	Seal	(DUAL SCV)
25	W42416	2	Plug	BLUE (NSEP) (ORDER AW28043)
26	W42417	2	Plug	BLACK
27	W42418	2	Plug	RED (ORDER AW28043)
28	W42419	2	Plug	YELLOW (ORDER AW28043)
29	W42421	1	Plug	(TRIPLE SCV) ORANGE (ORDER AW28043)
30	-	1	Part 43	(TRIPLE SCV) GREEN (ORDER AW28043)
31	AW28043	2	Plug	-
32	H120847	4	Clamp	-
33	H121168	4	Plate	-
34	19M7979	2	Screw	M8 X 55, (HS=10.9)
35	14M7396	2	Lock Nut	M8
..	LVB25193	1	Kit	DUAL SCV (COMPLETE GOODS) (ALSO INCLUDES LEVERS, AND LINES)
..	LVB25192	1	Kit	TRIPLE REAR SCV (COMPLETE GOODS) (ALSO INCLUDES CONTROL LEVERS AND VALVES)
..	RE182797	1	Kit	DUAL REAR SCV (COMPLETE GOODS) (ALSO INCLUDES LEVERS, LINES, AND VALVE)
3A	RE73376	1	Oil Line	(SUB RE223237) (ALSO ORDER 38H5018 AND T77932)
3B	RE223237	1	Oil Line	-
36A	RE73041	8	Quick Coupler	(DUAL SCV) (SUB RE219421)
36A	RE73041	10	Quick Coupler	(TRIPLE SCV) (SUB RE219421)
36B	RE219421	10	Hyd. Quick-Connect Coupler	(TRIPLE SCV)
36B	RE219421	8	Hyd. Quick-Connect Coupler	(DUAL SCV)

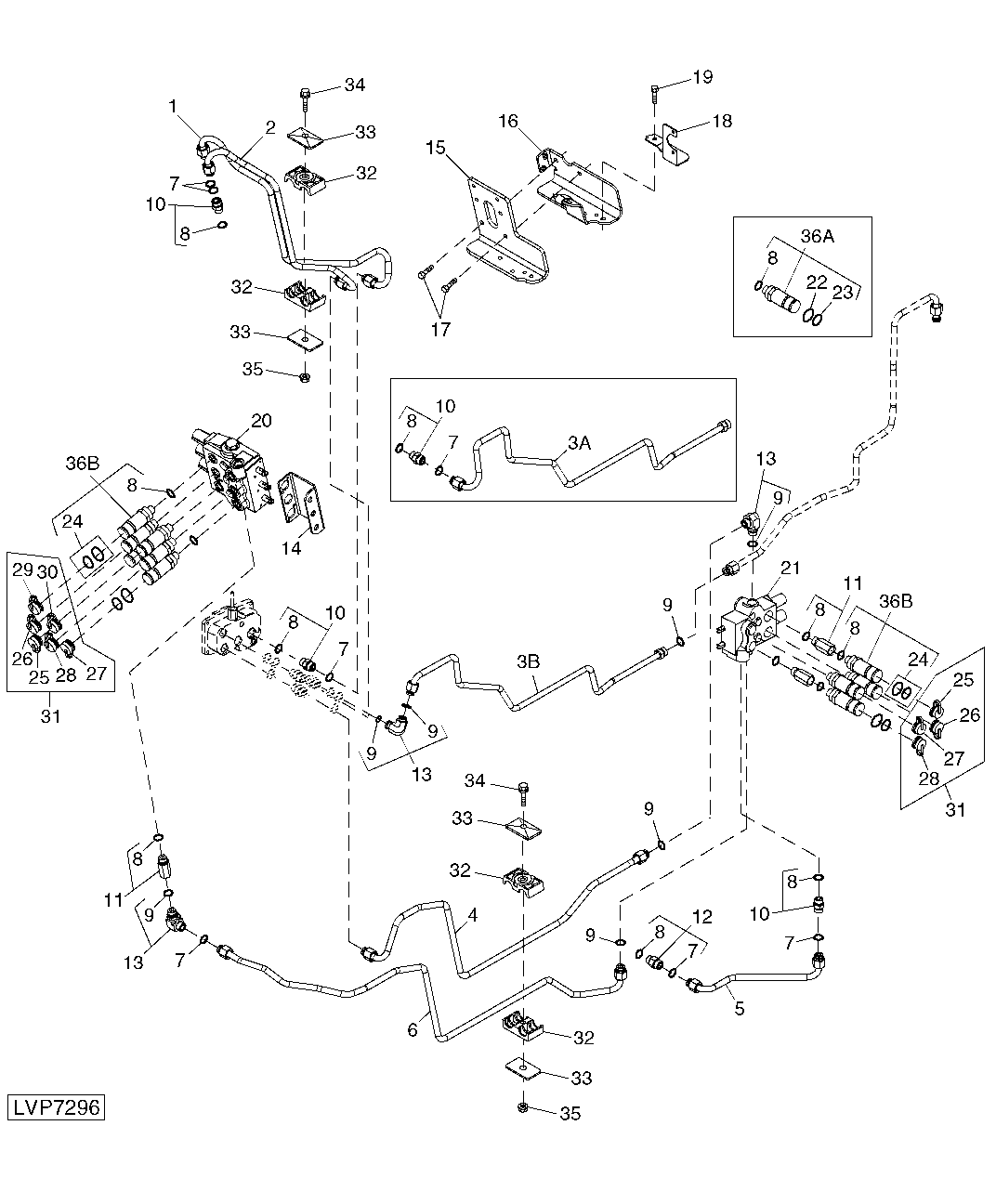

HYDRAULIC LINES REAR AND MID SCV (ISOLATED OPEN OPERATOR STATION)
