HYDRAULIC LINES DUAL REAR/DUAL MID SCV (W/CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	3	Screw	M10 X 20, (HS=10.9)
2	R180432	1	Bracket	-
3	RE180433	1	Bracket	-
4	19M7786	5	Screw	M10 X 30, (HS=10.9)
5	R180300	1	Bracket	-
6	19M7979	2	Screw	M8 X 55, (HS=10.9)
7	H121168	4	Plate	-
8	H120847	4	Clamp	-
9	14M7396	2	Lock Nut	M8
10	RE178131	1	Oil Line	-
11	RE178289	1	Oil Line	-
12	T77613	8	O-Ring	-
13	51M7045	12	O-Ring	19.300 X 2.200 mm
14	38H5004	6	Adapter Fitting	-
15	RE179201	1	Selective Control Valve	-
16	R249808	1	Bracket	(SUB FOR R180431)
17	U45858	4	Back-Up Ring	-
18	P47889	4	O-Ring	-
19	RE73041	4	Quick Coupler	(SUB RE219421)
20	W42417	1	Plug	BLACK
21	W42419	1	Plug	YELLOW (NSEP) (ORDER AW28043)
22	W42416	1	Plug	BLUE (NSEP) (ORDER AW28043)
23	W42418	1	Plug	RED (NSEP) (ORDER AW28043)
24	AW28043	1	Plug	COLORED PLUGS
25	RE181847	1	Fitting	-
26	T77932	3	O-Ring	-
27	38H5018	1	Elbow Fitting	-
28	61M5018	1	Elbow Fitting	-
29	RE207675	1	Oil Line	(A)
31	RE73283	1	Check Valve	-
32	19M7775	4	Screw	M6 X 16, (HS=10.9)
33	RE186599	4	Seal	-
34	RE219421	4	Hyd. Quick-Connect Coupler	-
..	LVB25193	1	Kit	DUAL SCV (COMPLETE GOODS) (ALSO INCLUDES LEVERS, AND LINES)
..	LVB25591	1	Kit	DUAL MID SCV (COMPLETE GOODS) (INCL JOYSTICK, VALVE, LINES, AND ITEMS MARKED (A))
..	RE182797	1	Kit	DUAL REAR SCV (COMPLETE GOODS) (INCL LEVERS, LINES AND VALVES)
30A	RE73376	1	Oil Line	(SUB RE223237) (ALSO ORDER 38H5018 AND T77932)
30B	RE223237	1	Oil Line	-

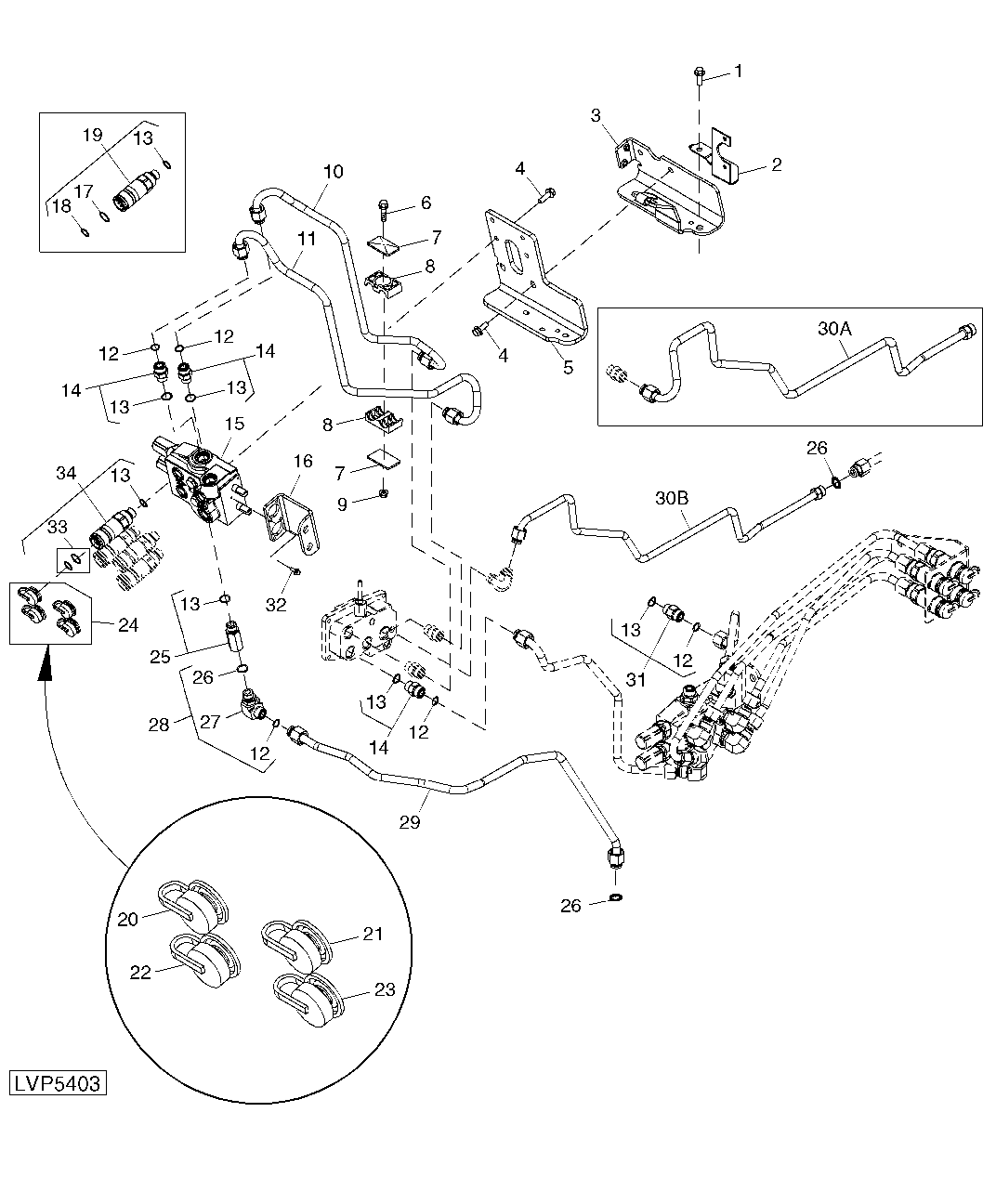

HYDRAULIC LINES DUAL REAR/DUAL MID SCV (W/CAB)
