Fuel Tank And Hoses (With CAB/Isolated Open Operator Station) (420001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	NSEP (ORDER RE206966)
2	AL37489	3	Clamp	(SUB FOR AR21837)
3	R117761	1	Elbow Fitting	-
4	R112945	1	Elbow Fitting	-
5	L2646N	1	Pipe Plug	-
6	N30405	1	Adapter Fitting	-
7	RE206966	1	Fuel Tank	-
8	R207657	1	Support	-
10	21M7285	2	Screw	M6 X 12, (USE WITH R208981)
11	14M7400	2	Lock Nut	(ISOLATED OPEN OPERATOR STATION) M10
12	TY22552	2	Bulk Hose	915 MM (36 IN), CUT TO LENGTH, SUPPLY, (SUB FOR R204016)
12	TY22552	1	Bulk Hose	915 MM (36 IN), CUT TO LENGTH, SUPPLY, (SUB FOR R204016)
13	TY22462	8	Clamp	(SUB FOR AR48236)
13	TY22462	10	Clamp	(SUB FOR AR48236) (USE WITH RE220719)
14	AL117189	1	Check Valve	SUPPLY
15	TY22551	1	Bulk Hose	865 MM (34 IN), CUT TO LENGTH, RETURN, (SUB FOR R204017)
16	R248743	1	Fitting	RETURN, (SUB FOR R134008)
17	TY22551	1	Bulk Hose	305 MM (12 IN), CUT TO LENGTH, RETURN, (SUB FOR R204018)
19	19M7786	2	Screw	M10 X 30, (HS=10.9)
20	21M7265	5	Screw	M5 X 12
21	19M7810	2	Screw	M10 X 80, (HS=10.9)
22	19M8006	2	Screw	M8 X 120, (HS=10.9)
23	19M7897	4	Screw	M8 X 35, (HS=10.9)
24	24M7308	3	Washer	10.500 X 20 X 2 mm
25	14M7396	4	Lock Nut	M8
26	AL113086	1	Filler Cap	-
27	L80418	1	Insert	-
28	L112337	1	Sealing Washer	-
29	AH159448	1	Link Chain	-
30	-	1	Part 34	NSEP, (ORDER RE213932)
31	RE213932	1	Filler Neck	-
32	R287353	1	Gasket	(SUB FOR R125590)
33	RE285548	1	Fuel Sender	(SUB FOR RE208262)
34	14M7400	2	Lock Nut	M10
35	AH104837	2	Hose Clamp	-
36	R177726	1	Hose	-
37	14M7396	2	Lock Nut	M8
38	R140760	1	Bracket	-
39	19M8029	2	Cap Screw	M16 X 30, (HS=10.9)
40	R217791	1	Rod	-
41	TY22552	1	Bulk Hose	45 MM (1.75 IN), CUT TO LENGTH, SUPPLY, (SUB FOR R222400)
42	RE220719	1	Strainer	-
43	TY22552	1	Bulk Hose	810 MM (32 IN), CUT TO LENGTH, SUPPLY, (SUB FOR R222401)
44	19M7774	2	Screw	M6 X 12, (HS=10.9), (USE WITH N10010)
9A	R208981	2	Angle	(SUB N10010)
9B	N10010	2	Clip	-
18A	R221229	1	Bracket	(WITH CAB)
18B	R212891	1	Bracket	(ISOLATED OPEN OPERATOR STATION)

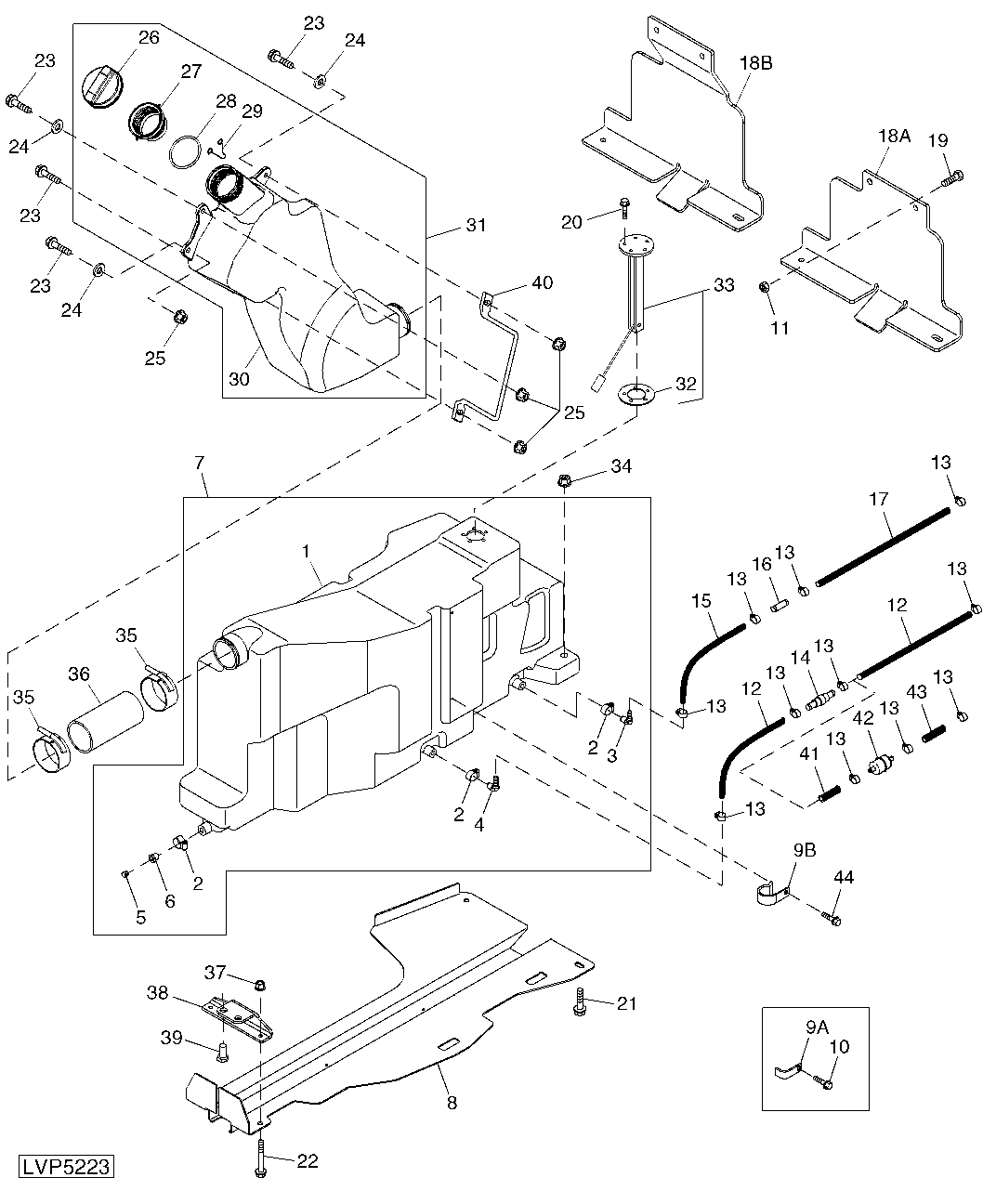

Fuel Tank And Hoses (With CAB/Isolated Open Operator Station) (420001 - )
