20 Engine 3029TPY54-RE565402-PY11158

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

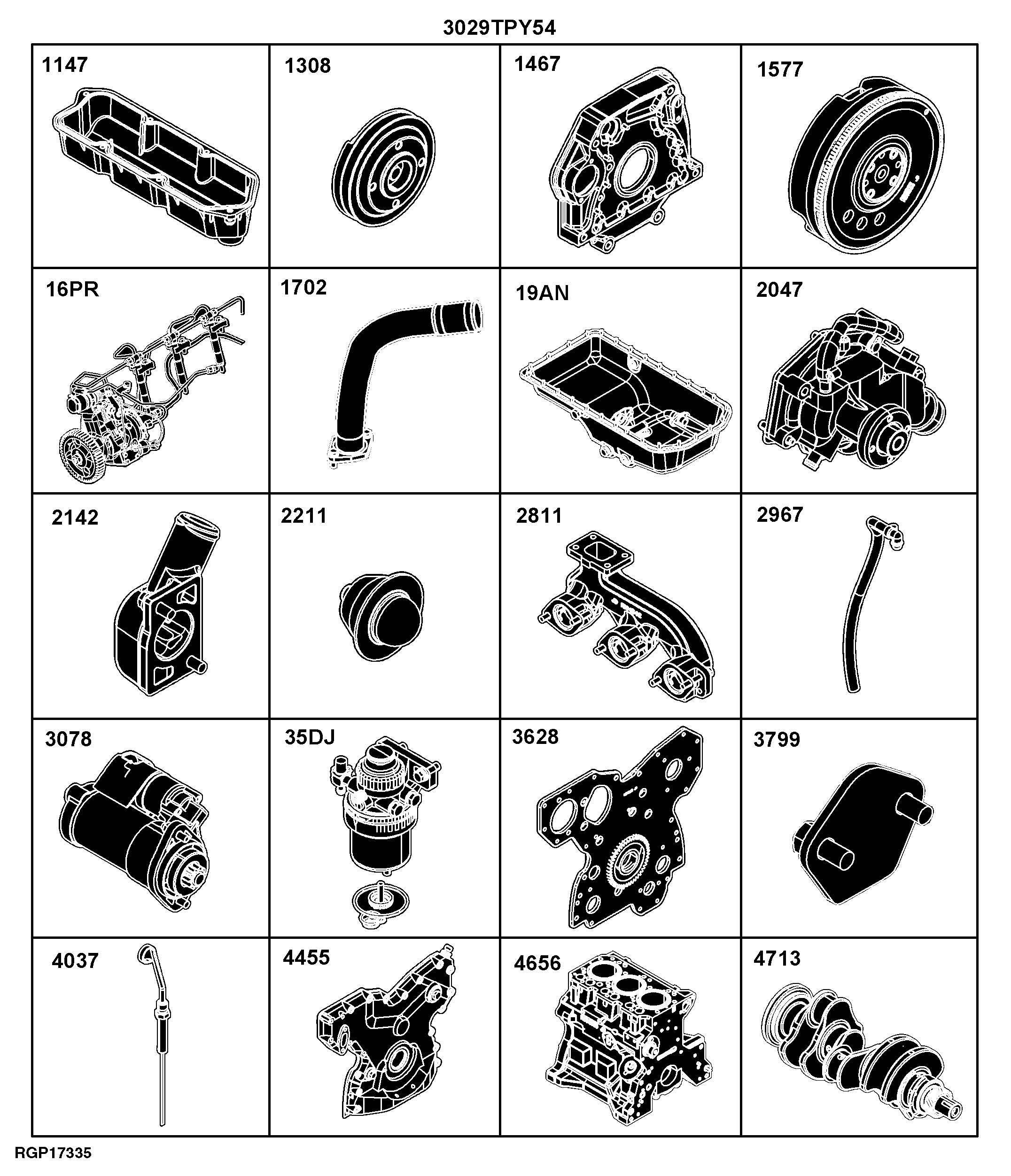

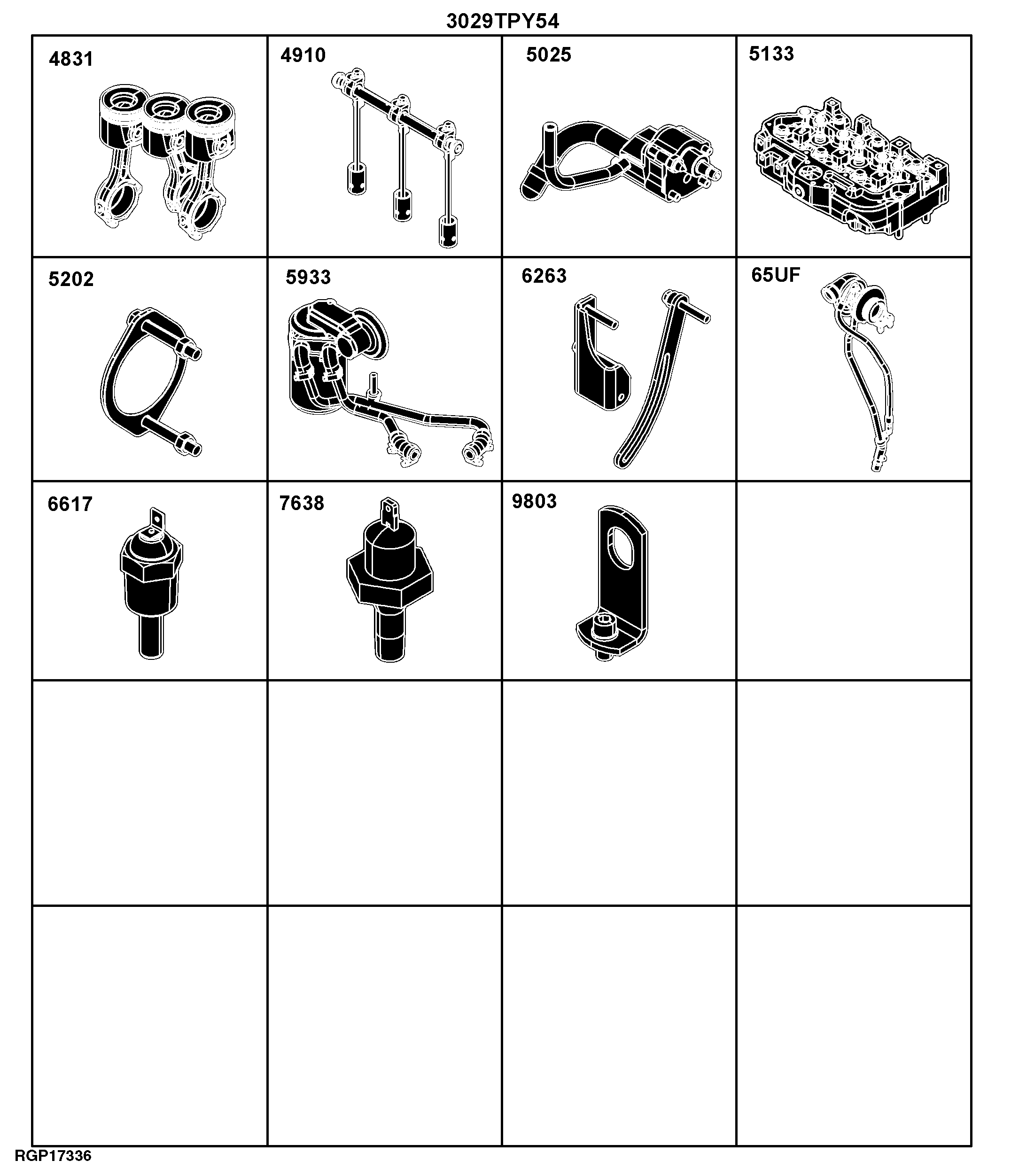

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	5202 Auxiliary Drive Cover	-
-	-	1	4069 Engine Oil Dipstick	-
-	-	1	4455 Timing Gear Cover	-
-	-	1	4656 Cylinder Block	-
-	-	1	4713 Crankshaft and Bearings	-
-	-	1	4831 Connecting Rods and Pistons	-
-	-	1	4910 Valve Actuating Mechanism	-
-	-	1	5025 Engine Oil Pump	-
-	-	1	5133 Cylinder Head with Valves	-
-	-	1	4037 Engine Oil Dipstick	-
-	-	1	5933 Engine Oil Cooler and Oil Filter	-
-	-	1	6263 Alternator Mounting	-
-	-	1	65UF Turbocharger	-
-	-	1	6617 Temperature Switch	-
-	-	1	7638 Oil Pressure Switch	-
-	-	1	9803 Engine Lift Strap	-
-	-	1	9901 Replacement Engine	-
-	-	1	2142 Thermostat Cover	-
-	-	1	1308 Crankshaft Pulley	-
-	-	1	1467 Flywheel Housing	-
-	-	1	1577 Flywheel	-
-	-	1	16PR Fuel Injection Pump	-
-	-	1	1702 Air Intake	-
-	-	1	19AN Oil Pan	-
-	-	1	19BS Oil Pan (XXXXXX - )	-
-	-	1	2047 Water Pump	-
-	-	1	1147 Valve Cover	-
-	-	1	2211 Thermostat	-
-	-	1	2811 Exhaust Manifold	-
-	-	1	2967 Ventilating System	-
-	-	1	3078 Starter Motor	-
-	-	1	35DJ Fuel Filter	-
-	-	1	3628 Front Plate	-
-	-	1	3799 Fuel Transfer Pump Cover	-

20 Engine 3029TPY54-RE565402-PY11158
