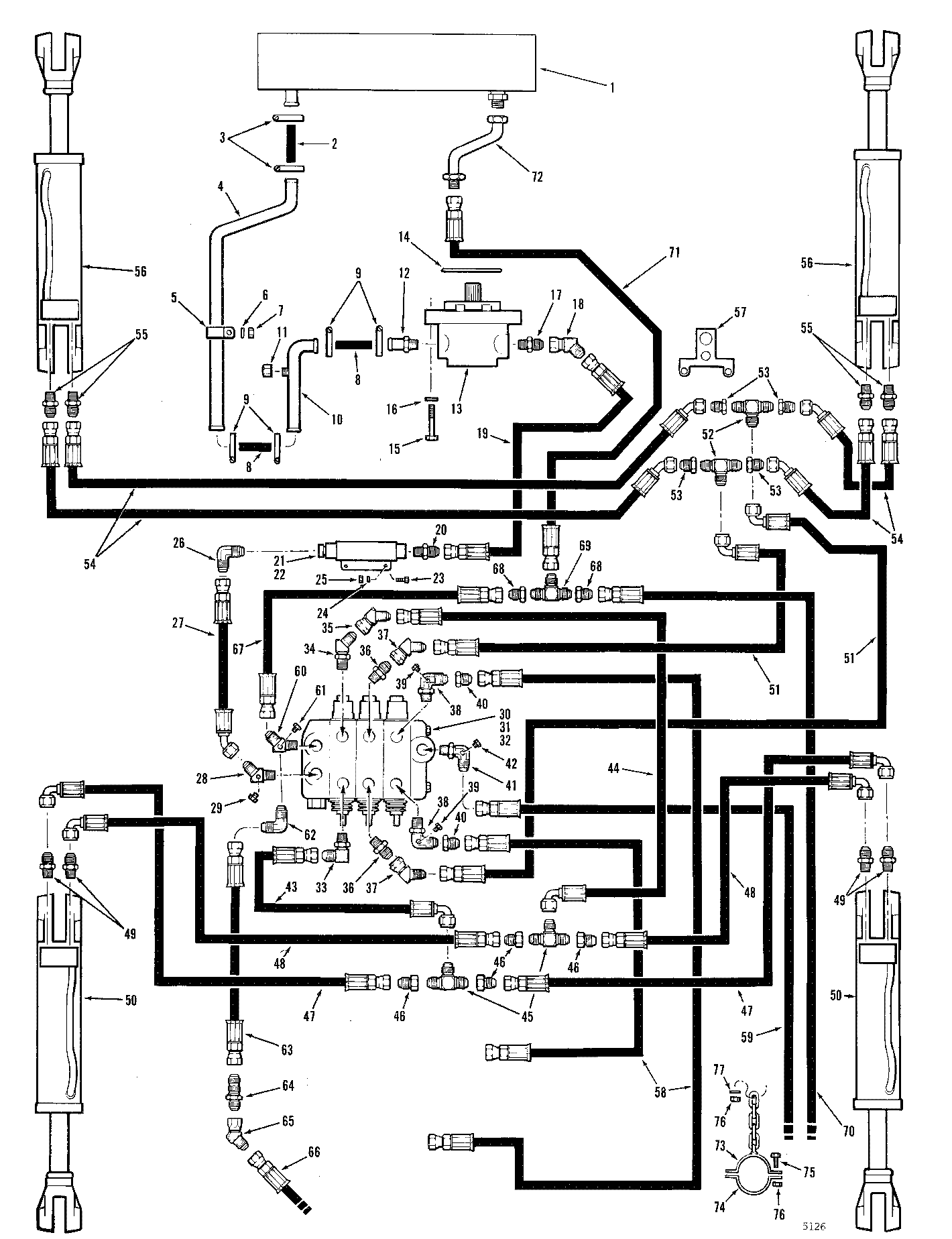

HYDRAULIC SYSTEM (2000) G P R B G 2000 HYDRAULIC SYSTEM( 521043 - ) 2000-068/10 [2000-068/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	824374900	1	HOSE - SUCTION	-
3	207202700	2	CLAMP - ADJUSTABLE	-
4	824589800	1	TUBE - SUCTION	-
5	810701000	2	CLAMP*1-9/16	-
6	810309800	2	FLAT WASHER 3/8 - HARDENED	-
7	810087500	2	HEX NUT 3/8-16 UNC	-
8	824777000	2	HOSE - SUCTION	-
9	209724800	4	CLAMP	-
10	824589700	1	ELBOW - SUCTION TUBE	-
11	810748100	1	PLUG - SUCTION TUBE	-
12	810855500	1	ADAPTOR	-
13	-	1	Part 13	Refer to Page: SKIDDER, LOG\520 GRAPPLE SKIDDER, LOG\520 GRAPPLE - 480 TO 550-SERIES (Timberjack < AA)\PUMP (2100)\PUMP (2100) G P R B G 2171 PUMP ASSEMBLY( 521043 - ) 2171-010/10
14	810605100	1	O-RING	-
15	810082300	2	BOLT*1/2-13UNCX1-1/2	-
16	810011600	2	WASHER*1/2	-
17	810115500	1	FITTING	-
18	810441800	1	ELBOW-45 DEG.	-
19	810871200	1	HOSE - PUMP TO VALVE	-
20	810115500	1	FITTING	-
21	824917500	1	HIGH PRESSURE FILTER	-
22	841153200	1	ELEMENT	-
23	810080100	2	HEX HEAD BOLT 3/8-16 UNC X 1	-
24	810309800	2	FLAT WASHER 3/8 - HARDENED	-
25	810087500	2	HEX NUT 3/8-16 UNC	-
26	810236500	1	ELBOW, 90 DEG	-
27	810910800	1	HOSE ASSEMBLY	-
28	823782800	1	FITTING-45 DEG.	-
29	810520200	1	PLUG	-
30	-	1	Part 30	Refer to Page: SKIDDER, LOG\520 GRAPPLE SKIDDER, LOG\520 GRAPPLE - 480 TO 550-SERIES (Timberjack < AA)\VALVE (2400)\VALVE (2400) G P R B G 2433 VALVE ASSEMBLY( N/R - ) 2433-046/10
31	810082100	3	BOLT*1/2-13UNCX1	-
32	810011600	3	WASHER*1/2	-
33	810292900	1	ELBOW-90 DEG. -	-
34	810368600	1	ELBOW-45 DEG. -	-
35	810397000	1	ELBOW - 45 DEG	-
36	810115800	2	FITTING 3/4 MJIC 3/4	-
37	810397000	2	ELBOW - 45 DEG	-
38	824872100	2	ELBOW 90 DEG. - REWORK	-
39	810520200	2	PLUG	-
40	810721500	2	FITTING	-
41	824671500	1	ELBOW	-
42	810520200	1	PLUG	-
43	810831900	1	HOSE-HYD*0.75X48	-
44	810910300	1	HOSE ASSY - VALVE TO TEE	-
45	810799200	2	Tee Fitting	-
46	810471600	4	FITTING MJIC/FJIC -	-
47	810891500	2	HOSE-HYD*0.5X15	-
48	810891400	2	HOSE ASSEMBLY - TEE TO STEER CYLINDER	-
49	810070000	4	FITTING 1/2 MJIC 1/2	-
50	-	1	Part 50	-
51	231237400	2	HOSE ASSEMBLY	-
52	810799200	2	Tee Fitting	-
53	810471600	4	FITTING MJIC/FJIC -	-
54	810909900	4	HOSE-HYD*0.50X42	-
55	810070000	4	FITTING 1/2 MJIC 1/2	-
56	-	1	Part 56	-
57	824335800	1	MOUNTING PLATE	-
58	810909400	2	HOSE ASSEMBLY	-
59	810890400	1	HOSE-HYD*1.00X66	-
60	825075500	1	FITTING-45 DEG.	-
61	810520200	1	PLUG	-
62	810563200	1	ELBOW-90 DEG.	-
63	810763000	1	HOSE-HYD*0.38X68 -	-
64	810269500	1	ADAPTER	-
65	231537000	1	ELBOW - 45 DEG	-
66	-	1	Part 66	-
67	810591900	1	HOSE-HYD*1.00X22	-
68	810563100	2	REDUCER	-
69	810565300	1	TEE	-
70	810932400	1	HOSE-HYD*1.00X67	-
71	810617300	1	HOSE-HYD*1.25X29	-
72	823665500	1	TUBE	-
73	824712600	1	HANGER	-
74	824712700	1	HANGER	-
75	810080100	2	HEX HEAD BOLT 3/8-16 UNC X 1	-
76	810163700	3	LOCKNUT 3/8 - 16 UNC	-
77	810309800	1	FLAT WASHER 3/8 - HARDENED	-
