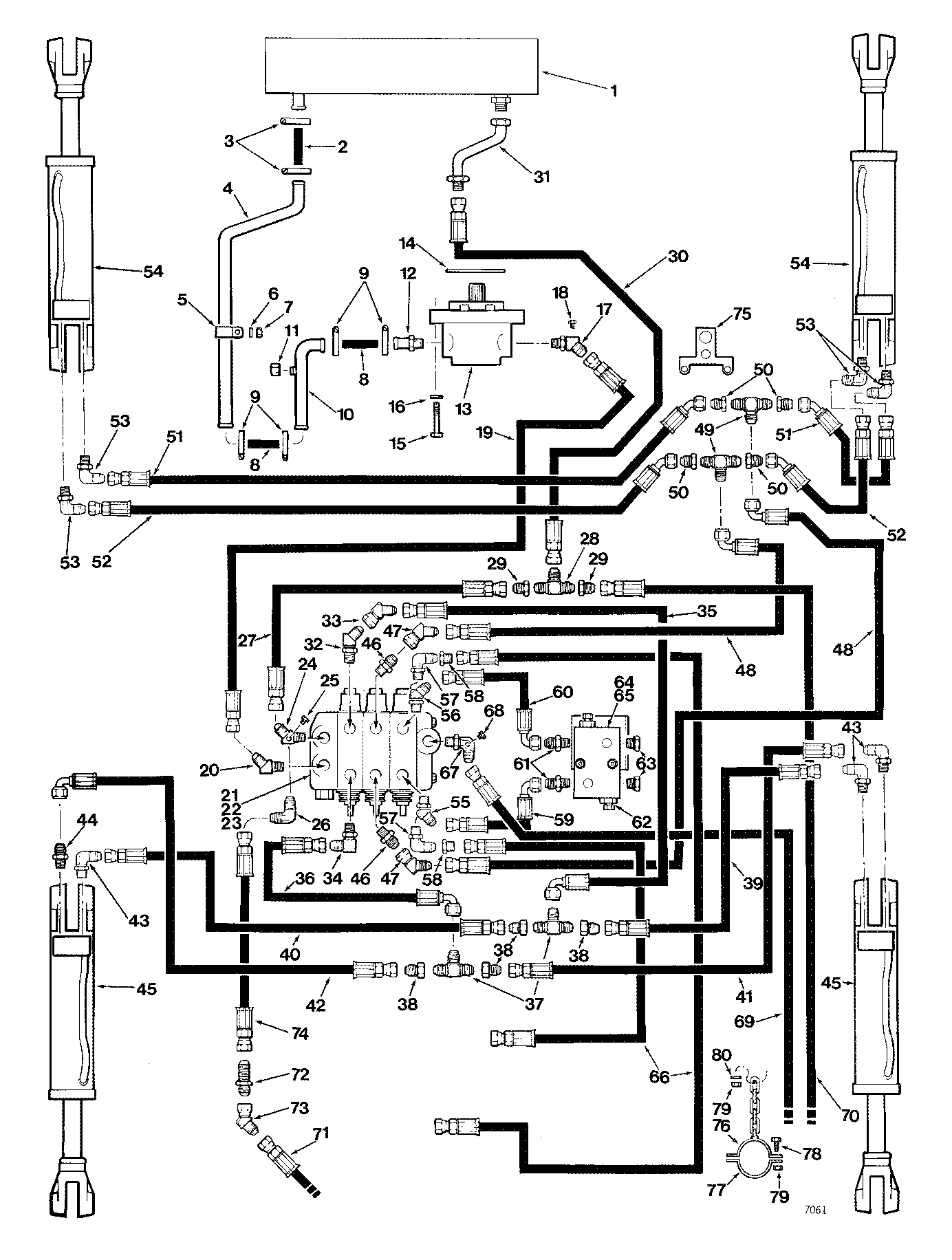

HYDRAULIC SYSTEM (2000) G P K B G 2000 HYDRAULIC SYSTEM( 566032 - ) 2000-068/13 [2000-068/13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	824374900	1	HOSE - SUCTION	-
3	207202700	2	CLAMP - ADJUSTABLE	-
4	824589800	1	TUBE - SUCTION	-
5	810701000	2	CLAMP*1-9/16	-
6	810309800	2	FLAT WASHER 3/8 - HARDENED	-
7	810087500	2	HEX NUT 3/8-16 UNC	-
8	824777000	2	HOSE - SUCTION	-
9	209724800	4	CLAMP	-
10	824589700	1	ELBOW - SUCTION TUBE	-
11	810748100	1	PLUG - SUCTION TUBE	-
12	810855500	1	ADAPTOR	-
13	-	1	Part 13	Refer to Page: SKIDDER, LOG\520 GRAPPLE SKIDDER, LOG\520 GRAPPLE - 480 TO 550-SERIES (Timberjack < AA)\PUMP (2100)\PUMP (2100) G P R B G 2171 PUMP ASSEMBLY( 521043 - ) 2171-010/10
14	810605100	1	O-RING	-
15	810082300	2	BOLT*1/2-13UNCX1-1/2	-
16	810011600	2	WASHER*1/2	-
17	823782800	1	FITTING-45 DEG.	-
18	810520200	1	PLUG	-
19	810871200	1	HOSE - PUMP TO VALVE	-
20	810285700	1	ELBOW-45 DEG.	-
21	-	1	Part 21	-
22	810082100	3	BOLT*1/2-13UNCX1	-
23	810011600	3	WASHER*1/2	-
24	825075500	1	FITTING-45 DEG.	-
25	810520200	1	PLUG	-
26	810563200	1	ELBOW-90 DEG.	-
27	810591900	1	HOSE-HYD*1.00X22	-
28	810565300	1	TEE	-
29	810563100	2	REDUCER	-
30	810617300	1	HOSE-HYD*1.25X29	-
31	823665500	1	TUBE	-
32	810368600	1	ELBOW-45 DEG. -	-
33	810397000	1	ELBOW - 45 DEG	-
34	810410200	1	ELBOW, 90 DEG	-
35	810910300	1	HOSE ASSY - VALVE TO TEE	-
36	810831900	1	HOSE-HYD*0.75X48	-
37	810799200	2	Tee Fitting	-
38	810471600	4	FITTING MJIC/FJIC -	-
39	811022200	1	HOSE-HYD*0.50X14	-
40	810890600	1	HOSE-HYD*0.50X33	-
41	810890600	1	HOSE-HYD*0.50X33	-
42	810891500	1	HOSE-HYD*0.5X15	-
43	810112100	3	ELBOW-90 DEG.	-
44	810070000	1	FITTING 1/2 MJIC 1/2	-
45	-	1	Part 45	-
46	810115800	2	FITTING 3/4 MJIC 3/4	-
47	810397000	1	ELBOW - 45 DEG	-
48	231237400	2	HOSE ASSEMBLY	-
49	810799200	2	Tee Fitting	-
50	810471600	4	FITTING MJIC/FJIC -	-
51	810909900	2	HOSE-HYD*0.50X42	-
52	811099400	2	HOSE-HYD*0.50X61	-
53	810112100	4	ELBOW-90 DEG.	-
54	-	1	Part 54	-
55	825547000	1	ELBOW	-
56	824570400	1	ELBOW	-
57	810273400	2	Elbow Fitting	-
58	811055000	2	RESTRICTOR	-
59	810497000	1	HOSE - VALVE TO TEE	-
60	231599800	1	HOSE ASSY - VALVE TO CROSSOVER VALVE	-
61	810277000	2	FITTING 3/4 MJIC 5/8	-
62	811055100	1	VALVE-RELIEF	-
63	810112500	2	Plug	-
64	810102400	2	BOLT*5/16-18UNCX2	-
65	810087300	2	NUT*5/16-18UNC	-
66	810909400	2	HOSE ASSEMBLY	-
67	824671500	1	ELBOW	-
68	810520200	1	PLUG	-
69	810890400	1	HOSE-HYD*1.00X66	-
70	810932400	1	HOSE-HYD*1.00X67	-
71	-	1	Part 73	-
72	810269500	1	ADAPTER	-
73	231537000	1	ELBOW - 45 DEG	-
74	810763000	1	HOSE-HYD*0.38X68 -	-
75	824335800	1	MOUNTING PLATE	-
76	824712600	1	HANGER	-
77	824712700	1	HANGER	-
78	810080100	2	HEX HEAD BOLT 3/8-16 UNC X 1	-
79	810163700	3	LOCKNUT 3/8 - 16 UNC	-
80	810309800	1	FLAT WASHER 3/8 - HARDENED	-
-	841592000	1	SEAL KIT	-
-	841591900	2	CARTRIDGE - 850 PSI	-
