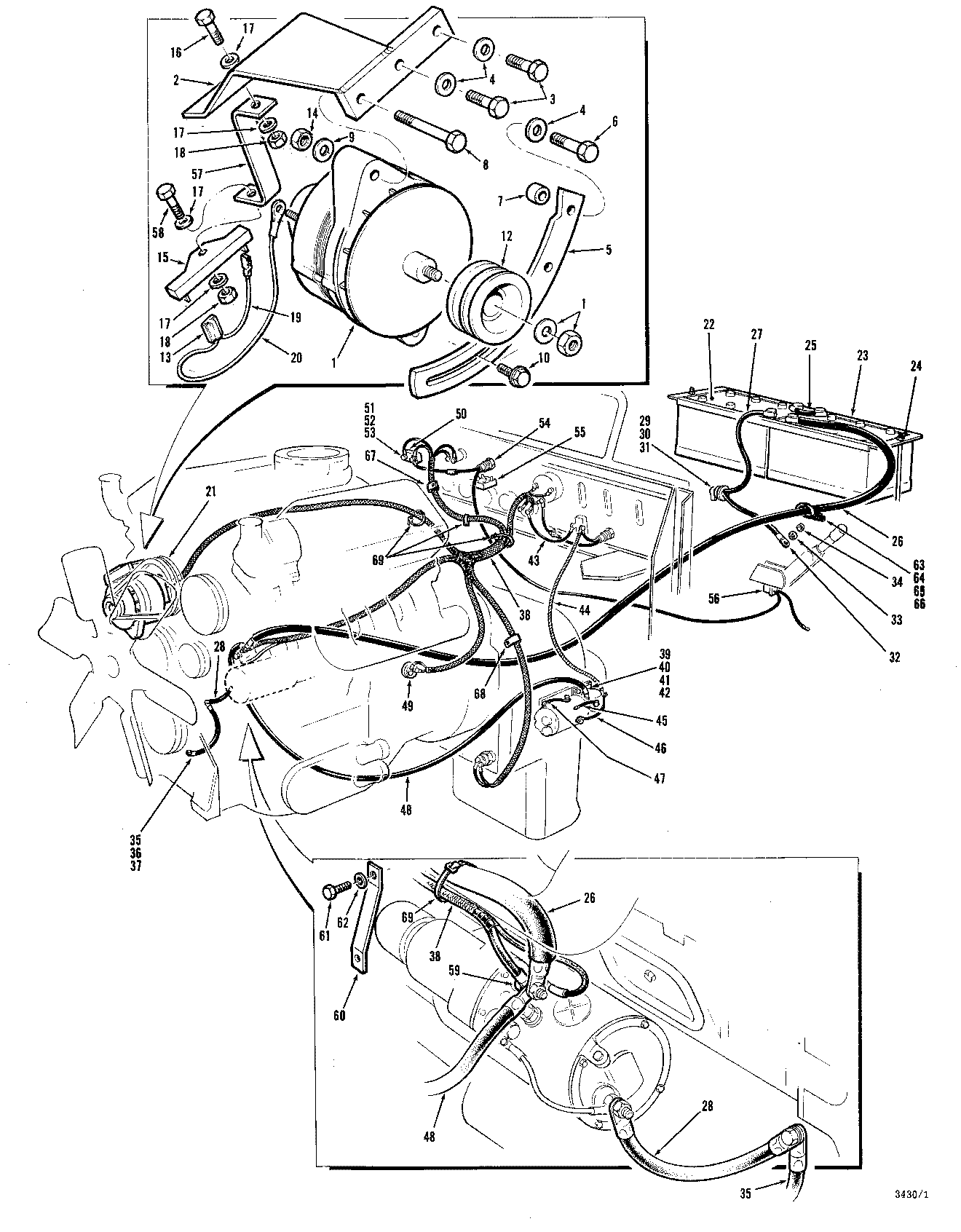

ELECTRICAL SYSTEM 12V (3100) G P R B G 3100 ELECTRICAL SYSTEM( 521043 - ) 3100-027/12 [3100-027/12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	824263500	1	ALTERNATOR MOUNTING WELDMENT	-
3	810080300	2	BOLT*3/8-16UNCX1-1/2	-
4	810309800	3	FLAT WASHER 3/8 - HARDENED	-
5	810305600	1	ADJUSTING STRAP	-
6	810080500	1	BOLT*3/8-16UNCX2	-
7	822907800	1	SPACER	-
8	810080900	1	BOLT*3/8-16UNCX3	-
9	810309800	1	FLAT WASHER 3/8 - HARDENED	-
10	810871100	1	ALTERNATOR BRACKET BOLT	-
11	-	1	Part 11	-
12	840181900	1	PULLEY	-
13	210760400	1	CONNECTOR	-
14	810087500	1	HEX NUT 3/8-16 UNC	-
15	210800900	1	RESISTOR	-
16	810101900	1	BOLT*5/16-18UNCX3/4	-
17	810768000	4	WASHER*5/16	-
18	810087300	2	NUT*5/16-18UNC	-
19	824223900	1	WIRE ASSEMBLY - ALTERNATOR TO RESISTOR	-
20	824224100	1	WIRE ASSEMBLY - ALTERNATOR TO GROUND	-
21	-	1	Part 21	-
22	810765700	2	BATTERY - DRY - 4D	-
23	823729100	2	HOLD DOWN	-
24	810087700	2	NUT*1/2-13UNC	-
25	824054200	1	BATTERY CABLE - POSITIVE TO NEGATIVE	-
26	824054700	1	BATTERY CABLE - POSITIVE	-
27	824054300	1	BATTERY CABLE - NEGATIVE	-
28	824054500	1	BATTERY CABLE - STARTER TO ENGINE	-
29	810728400	1	MASTER DISCONNECT SWITCH	-
30	810176100	1	LOCKWASHER 3/8 - EXTERNAL TOOTH	-
31	810087500	1	HEX NUT 3/8-16 UNC	-
32	824054400	1	BATTERY CABLE - NEGATIVE - SWITCH TO FRAME	-
33	810181400	1	WASHER - EXT. TOOTH 1/2	-
34	810087700	1	NUT*1/2-13UNC	-
35	824054600	1	BATTERY CABLE - NEGATIVE GROUND - ENGINE TO FRAME	-
36	810176100	1	LOCKWASHER 3/8 - EXTERNAL TOOTH	-
37	810087500	1	HEX NUT 3/8-16 UNC	-
38	824353400	1	MAIN WIRING HARNESS	-
39	810828700	1	MAGNETIC SWITCH	-
40	810080200	4	BOLT*3/8-16UNCX1-1/4	-
41	810309800	4	FLAT WASHER 3/8 - HARDENED	-
42	810087500	4	HEX NUT 3/8-16 UNC	-
43	823723300	1	WIRE ASSEMBLY - EMERGENCY STEER SWITCH TO AMMETER	-
44	823723400	1	WIRE ASSEMBLY - EMERGENCY STEER SWITCH TO MAGNETIC SWITCH	-
45	823723500	1	WIRE ASSEMBLY - MAGNETIC SWITCH TO GROUND	-
46	824084700	1	CABLE - MAGNETIC SWITCH TO PUMP MOTOR	-
47	823723700	1	BATTERY CABLE - GROUND	-
48	823723800	1	BATTERY CABLE - MAGNETIC SWITCH TO STARTER	-
49	810061300	1	OIL PRESSURE SWITCH	-
50	810662000	1	CIRCUIT BREAKER	-
51	810371500	2	SCREW	-
52	810371600	2	LOCKWASHER #6	-
53	810371700	2	NUT*6-32UNC	-
54	-	1	Part 54	-
55	-	1	Part 55	-
56	-	1	Part 56	-
57	824711900	1	BRACKET - RESISTOR MOUNTING	-
58	810102100	1	HEX HEAD BOLT 5/16-18 UNC X 1-1/4	-
59	821353800	1	SPACER LONG	-
60	824712000	1	BRACKET - STARTER CABLE	-
61	810082200	1	BOLT*1/2-13UNCX1-1/4	-
62	810011600	2	WASHER*1/2	-
63	810654000	1	Clamp	-
64	810080200	1	BOLT*3/8-16UNCX1-1/4	-
65	810309800	1	FLAT WASHER 3/8 - HARDENED	-
66	810087500	1	HEX NUT 3/8-16 UNC	-
67	810785500	1	CLAMP - 7/16	-
68	810275800	1	CLAMP*3/4	-
69	810402100	9	TIE WRAP -	-
