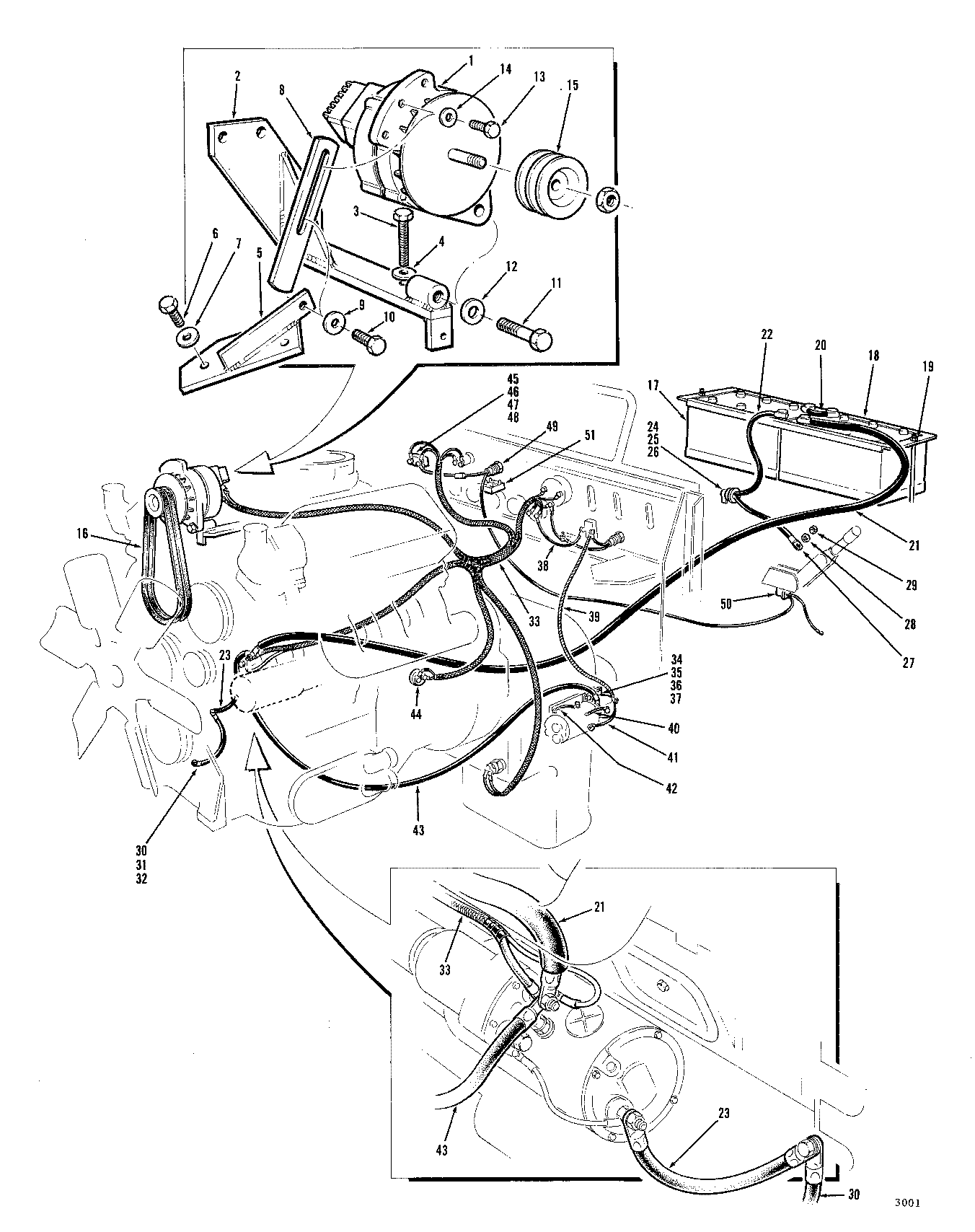

ELECTRICAL SYSTEM 12V (3100) G P R A G 3100 ELECTRICAL SYSTEM( 520001 - ) 3100-027/10 [3100-027/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 3	-
2	824026900	1	ALTERNATOR AND FILTER MOUNT	-
3	810022600	2	BOLT 3/8 - 16 UNC X 2	-
4	810006400	2	FLAT WASHER 3/8	-
5	824347300	1	MOUNTING - ADJUSTMENT STRAP - ALTERNATOR	-
6	810022100	2	BOLT 3/8 - 16 UNC X 3/4	-
7	810006400	2	FLAT WASHER 3/8	-
8	822244600	1	STRAP	-
9	810022200	1	BOLT 3/8 - 16 UNC X 1	-
10	810006400	1	FLAT WASHER 3/8	-
11	810378200	1	BOLT 1/2 - 20 UNF X 2 - ALTERNATOR PIVOT	-
12	810007700	1	FLAT WASHER 1/2	-
13	810190200	1	BOLT 5/16 - 18 UNC X 3/4	-
14	810043400	1	FLAT WASHER 5/16	-
15	840181900	1	PULLEY	-
16	810548900	1	2 VEE BELT SELT	-
17	810765700	2	BATTERY - DRY - 4D	-
18	823729100	2	HOLD DOWN	-
19	810004800	2	NUT 1/2 - 13 UNC	-
20	824054200	1	BATTERY CABLE - POSITIVE TO NEGATIVE	-
21	824054700	1	BATTERY CABLE - POSITIVE	-
22	824054300	1	BATTERY CABLE - NEGATIVE	-
23	824054500	1	BATTERY CABLE - STARTER TO ENGINE	-
24	810728400	1	MASTER DISCONNECT SWITCH	-
25	810176100	1	LOCKWASHER 3/8 - EXTERNAL TOOTH	-
26	810006200	1	NUT 3/8 - 16 UNC	-
27	824054400	1	BATTERY CABLE - NEGATIVE - SWITCH TO FRAME	-
28	810181400	1	WASHER - EXT. TOOTH 1/2	-
29	810004800	1	NUT 1/2 - 13 UNC	-
30	824054600	1	BATTERY CABLE - NEGATIVE GROUND - ENGINE TO FRAME	-
31	810176100	1	LOCKWASHER 3/8 - EXTERNAL TOOTH	-
32	810006200	1	NUT 3/8 - 16 UNC	-
33	823724600	1	MAIN WIRING HARNESS	-
34	810695000	1	MAGNETIC SWITCH	-
35	810022300	4	BOLT 3/8 - 16 UNC X 1.1/4	-
36	810006400	4	FLAT WASHER 3/8	-
37	810006200	4	NUT 3/8 - 16 UNC	-
38	823723300	4	WIRE ASSEMBLY - EMERGENCY STEER SWITCH TO AMMETER	-
39	823723400	1	WIRE ASSEMBLY - EMERGENCY STEER SWITCH TO MAGNETIC SWITCH	-
40	823723500	1	WIRE ASSEMBLY - MAGNETIC SWITCH TO GROUND	-
41	824084700	1	CABLE - MAGNETIC SWITCH TO PUMP MOTOR	-
42	823723700	1	BATTERY CABLE - GROUND	-
43	823723800	1	BATTERY CABLE - MAGNETIC SWITCH TO STARTER	-
44	810061300	1	OIL PRESSURE SWITCH	-
45	810662000	1	CIRCUIT BREAKER	-
46	810371500	2	SCREW	-
47	810371600	2	LOCKWASHER #6	-
48	810371700	2	NUT*6-32UNC	-
49	-	1	Part 51	Refer to Page: SKIDDER, LOG\520 GRAPPLE SKIDDER, LOG\520 GRAPPLE - 480 TO 550-SERIES (Timberjack < AA)\INSTRUMENTS (8100)\INSTRUMENTS (8100) G P R A G 8100 INSTRUMENTS( 520001 - ) 8100-026/10
50	-	1	Part 52	-
51	-	1	Part 53	-
-	824137900	1	WIRING DIAGRAM	-
-	824053800	1	ELECTRICAL SYSTEM	-

ELECTRICAL SYSTEM 12V (3100) G P R A G 3100 ELECTRICAL SYSTEM( 520001 - ) 3100-027/10 [3100-027/10]
