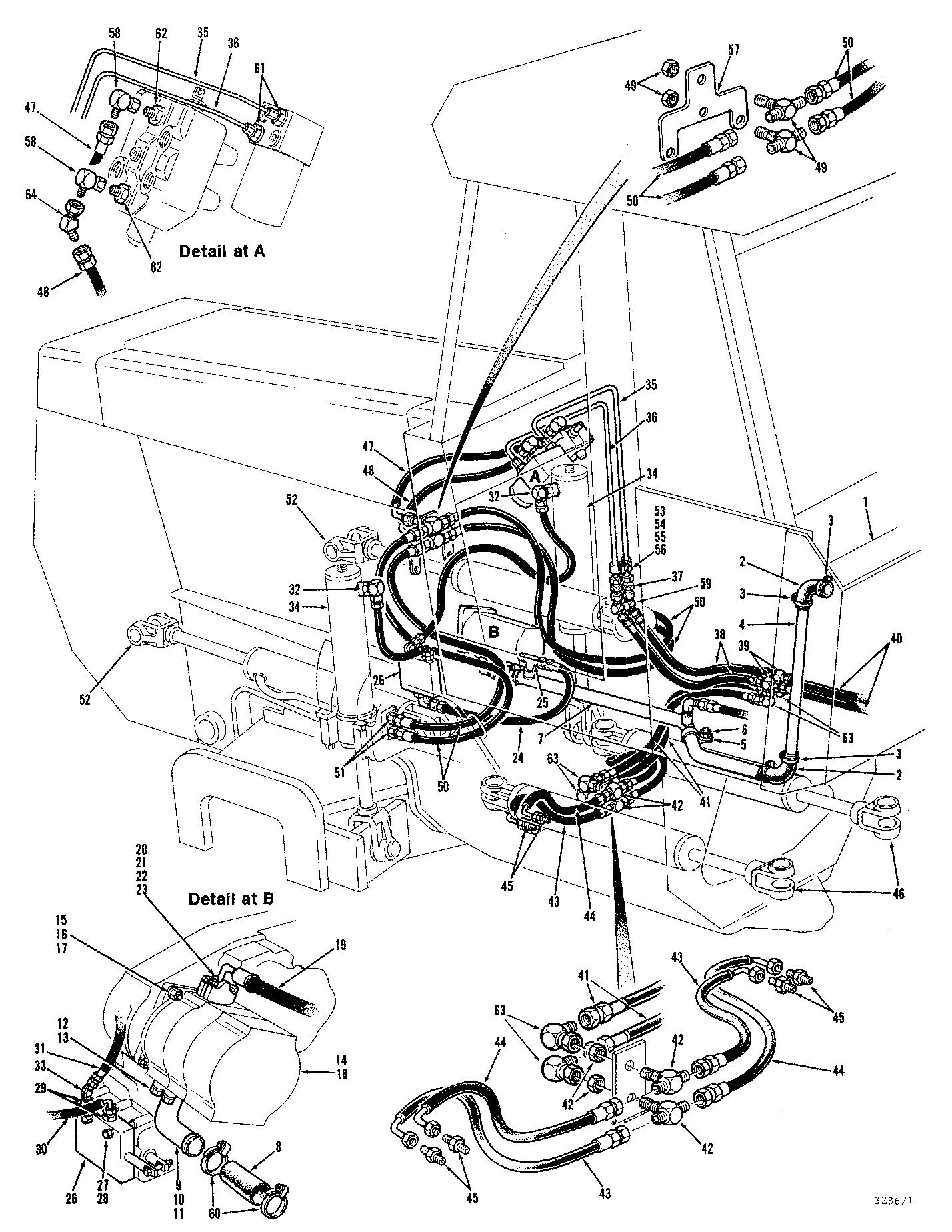

HYDRAULIC SYSTEM (2000) G P E K C 2000 HYDRAULIC SYSTEM( 520001 - ) 2000-044/17 [2000-044/17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\HYDRAULIC OIL TANK (2700)\HYDRAULIC OIL TANK (2700) G P E K L 2700 HYDRAULIC OIL TANK( 520001 - ) 2700-025/10
2	824559300	2	HOSE - SUCTION	-
3	206257000	4	HOSE CLAMP	-
4	824569900	2	TUBE - TANK TO MANIFOLD	-
5	810654000	2	Clamp	-
6	810004800	1	NUT 1/2 - 13 UNC	-
7	824726500	1	MANIFOLD - TUBE TO PUMP	-
8	824280200	1	HOSE	-
9	810825300	1	ELBOW	-
10	810563400	1	O-RING	-
11	810564000	2	Flange	-
12	810005000	4	BOLT 1/2 - 13 UNC X 1.1/2	-
13	810002400	4	LOCKWASHER*1/2	-
14	-	1	Part 15	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\PUMP (2100)\PUMP (2100) G P E K L 2123 PUMP ASSEMBLY( 521023 - ) 2123-010/10
15	810332300	4	STUD	-
16	810002400	4	LOCKWASHER*1/2	-
17	810004800	4	NUT 1/2 - 13 UNC	-
18	810482700	1	O-RING	-
19	810825200	1	HOSE - PUMP TO MANIFOLD BLOCK	-
20	810400400	1	O-RING	-
21	810797100	2	SPLIT FLANGE	-
22	810022300	4	BOLT 3/8 - 16 UNC X 1.1/4	-
23	810002600	4	LOCKWASHER 3/8	-
24	810406300	1	HOSE ASSEMBLY - MANIFOLD TO STABILIZER VALVE	-
25	810503500	1	TEE - MANIFOLD	-
26	-	1	Part 27	-
27	-	1	Part 28	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\THROTTLE LINKAGE (8200)\THROTTLE LINKAGE (8200) G P E K L 8217 TRANSMISSION LINKAGE( 520001 - ) 8217-019/10
28	-	1	Part 29	-
29	810070000	2	FITTING 1/2 MJIC 1/2	-
30	810706700	1	HOSE	-
31	810777000	1	HOSE - VALVE TO L.H. CYLINDER	-
32	810112100	2	ELBOW-90 DEG.	-
33	810466600	1	FITTING-45 DEG.	-
34	-	1	Part 35	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\CYLINDER (2800)\CYLINDER (2800) G P E K L 2830 STABILIZER CYLINDER( 520001 - ) 2830-010/10
35	824290200	1	TUBE - STEER	-
36	824610900	1	TUBE - STEER	-
37	810348700	2	FITTING -	-
38	810406400	2	HOSE ASSEMBLY - TO EMERGENCY PUMP	-
39	810787500	2	TEE	-
40	-	1	Part 41	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\HYDRAULIC SYSTEM (2000)\HYDRAULIC SYSTEM (2000) G P E K L 2000 HYD SYS - POWER FRAME( 520001 - ) 2000-044/17
41	810764500	2	HOSE - VALVE TO BULKHEAD	-
42	810787500	2	TEE	-
43	810851900	2	HOSE - TEE TO CYLINDER	-
44	810764800	2	HOSE - TEE TO CYLINDER	-
45	810070000	4	FITTING 1/2 MJIC 1/2	-
46	-	1	Part 47	-
47	810411200	1	HOSE - TEE TO L.H. CYLINDER	-
48	810721900	1	HOSE - VALVE TO TEE	-
49	810787500	2	TEE	-
50	810764600	4	HOSE - VALVE TO BULKHEAD	-
51	810070000	4	FITTING 1/2 MJIC 1/2	-
52	-	1	Part 53	-
53	810390100	2	CLAMP*1/2	-
54	810179600	1	BOLT 5/16-18 UNC X 1-1/2	-
55	810043400	1	FLAT WASHER 5/16	-
56	810008300	1	NUT 5/16 - 18 UNC	-
57	824320000	1	BRACKET	-
58	810433800	2	ELBOW-90 DEG.	-
59	810466600	2	FITTING-45 DEG.	-
60	209724800	2	CLAMP	-
61	810566300	2	FITTING	-
62	810490900	2	FITTING 1/2 MJIC 3/4 -	-
63	810433800	4	ELBOW-90 DEG.	-
64	810466600	1	FITTING-45 DEG.	-
-	824289500	1	HYDRAULIC HOSE ROUTING	-

HYDRAULIC SYSTEM (2000) G P E K C 2000 HYDRAULIC SYSTEM( 520001 - ) 2000-044/17 [2000-044/17]
