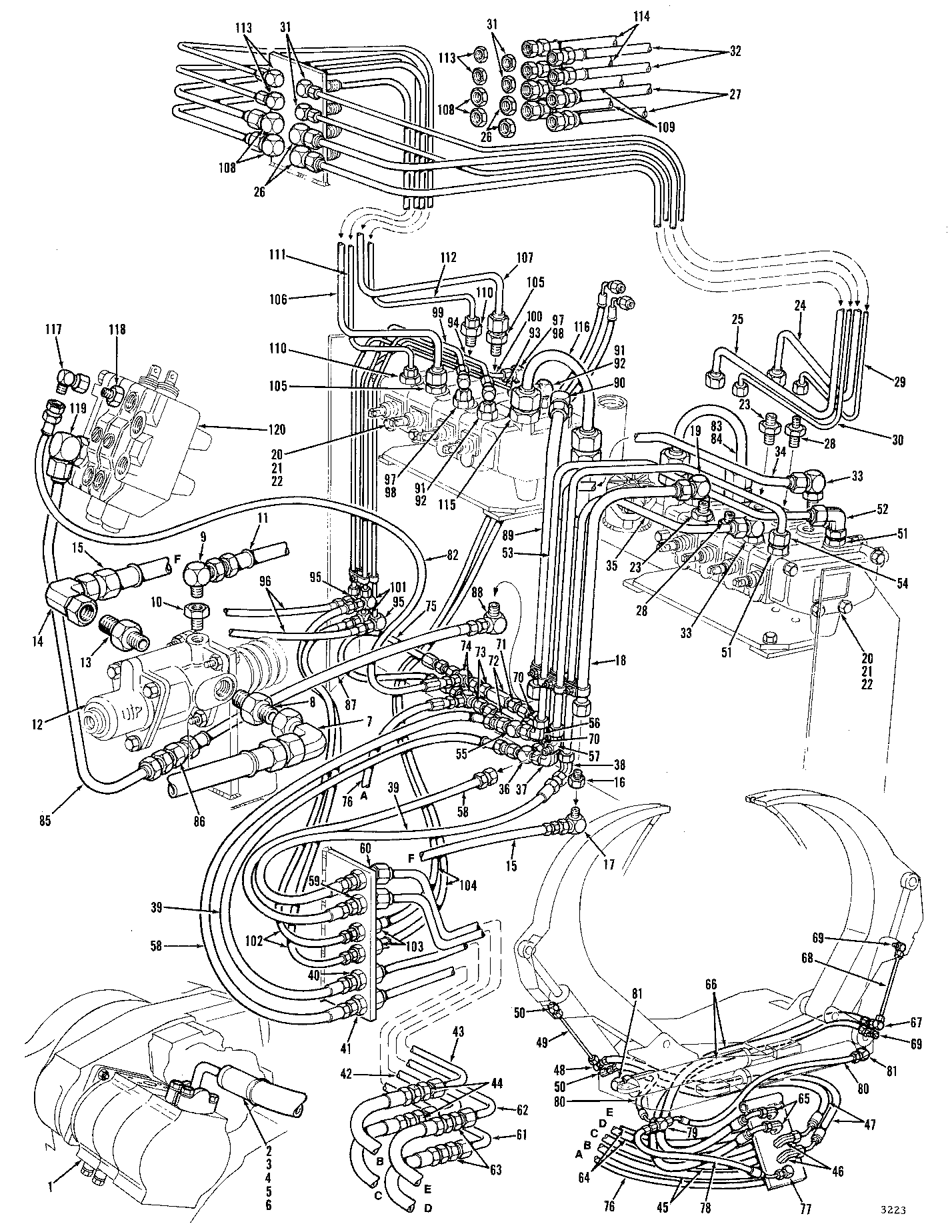

HYDRAULIC SYSTEM (2000) G P E K C 2000 HYDRAULIC SYSTEM( 520001 - ) 2000-044/10 [2000-044/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	-
2	810833400	1	HOSE - PUMP TO BRAKE VALVE	-
3	810400400	1	O-RING	-
4	810797100	2	SPLIT FLANGE	-
5	810022300	4	BOLT 3/8 - 16 UNC X 1.1/4	-
6	810002600	4	LOCKWASHER 3/8	-
7	810447100	1	ELBOW-90 DEG. -	-
8	810432200	1	FITTING -	-
9	810368000	1	ELBOW-90 DEG.	-
10	810775400	1	FITTING -	-
11	810691900	1	HOSE ASSEMBLY - TUBE TO EMERGENCY PUMP	-
12	-	1	Part 13	Refer to Page: FORWARDER\520 CLAMBUNK FORWARDER\520 CLAMBUNK - 230F/610/520 (Timberjack < 2000)\CYLINDER (2800)\CYLINDER (2800) G P E K C 2869 BUNK ARM CYLINDER( 521021 - ) 2869-014/10
13	810432200	1	FITTING -	-
14	810447100	1	ELBOW-90 DEG. -	-
15	810566700	1	HOSE - SUPPLY - BRAKE VALVE TO TUBE	-
16	810293100	1	FITTING -	-
17	810707200	1	ELBOW 90 DEG	-
18	824283000	1	TUBE ASSEMBLY - L.H. VALVE	-
19	810353500	1	ELBOW-90 DEG.	-
20	-	1	Part 21	-
21	810024000	6	BOLT 1/2 - 13 UNC X 1	-
22	810002400	6	LOCKWASHER*1/2	-
23	810115800	2	FITTING 3/4 MJIC 3/4	-
24	824291500	1	TUBE #5 - CAB LIFT	-
25	824291400	1	TUBE #6 - CAB LIFT	-
26	810466400	2	BULKHEAD 90 DEG	-
27	810825000	2	HOSE - TO LOADER	-
28	810490900	2	FITTING 1/2 MJIC 3/4 -	-
29	824291800	1	TUBE #1 - CAB ROTATE	-
30	824291600	1	TUBE #2 - CAB ROTATE	-
31	810372600	2	ELBOW-90 DEG.	-
32	810824800	2	HOSE - TO LOADER	-
33	810289600	2	ELBOW 90 DEG	-
34	824285600	1	TUBE - L.H. BUNK - FRONT	-
35	824285700	1	TUBE - L.H. BUNK - REAR	-
36	810332700	1	TEE	-
37	810447100	1	ELBOW-90 DEG. -	-
38	810484200	1	ELBOW 90 DEG	-
39	810566800	2	HOSE - ACROSS PIVOT	-
40	810566100	1	ELBOW-45 DEG. - BULKHEAD	-
41	810459000	1	ADAPTER	-
42	824289000	1	TUBE - L.H. BUNK	-
43	824291100	1	TUBE - L.H. BUNK	-
44	810298900	2	FITT MALE.1.063/1063 -	-
45	810491900	2	HOSE ASSEMBLY	-
46	810466400	2	BULKHEAD 90 DEG	-
47	810839600	2	HOSE	-
48	810484200	1	ELBOW 90 DEG	-
49	824415700	1	TUBE ASSEMBLY	-
50	810074500	2	ELBOW 90 DEG	-
51	810115800	2	FITTING 3/4 MJIC 3/4	-
52	810447100	1	ELBOW-90 DEG. -	-
53	824285800	1	TUBE - R.H. BUNK - FRONT	-
54	824110000	1	TUBE - BUNK R.H. REAR	-
55	810332700	1	TEE	-
56	810447100	1	ELBOW-90 DEG. -	-
57	810484200	1	ELBOW 90 DEG	-
58	810824400	2	HOSE ASSEMBLY - VALVE TO STEER CYLINDER	-
59	810566100	1	ELBOW-45 DEG. - BULKHEAD	-
60	810459000	1	ADAPTER	-
61	824291000	1	TUBE - R.H. BUNK	-
62	824291000	1	TUBE - R.H. BUNK	-
63	810298900	2	FITT MALE.1.063/1063 -	-
64	810491900	2	HOSE ASSEMBLY	-
65	810466400	2	BULKHEAD 90 DEG	-
66	810839500	2	HOSE-HYD*0.75X61 -	-
67	810484200	1	ELBOW 90 DEG	-
68	824415700	2	TUBE ASSEMBLY	-
69	810074500	2	ELBOW 90 DEG	-
70	810397000	2	ELBOW - 45 DEG	-
71	810283400	2	FITTING -	-
72	810802500	2	CHECK VALVE	-
73	810224800	2	CONNECTOR -	-
74	810579400	2	TEE-JIC/JIC/JIC -	-
75	810382900	1	HOSE-HYD0*0.5X22	-
76	810839400	1	HOSE - TEE TO BULKHEAD	-
77	810372600	1	ELBOW-90 DEG.	-
78	810766400	1	O-RING	-
79	810292300	1	TEE	-
80	810406300	2	HOSE ASSEMBLY - MANIFOLD TO STABILIZER VALVE	-
81	810396500	1	ELBOW-90 DEG. -	-
82	810552200	1	HOSE - ACROSS PIVOT SWING	-
83	810115500	1	FITTING	-
84	824282400	1	TUBE RETURN - VALVE TO TANK	-
85	824290400	1	TUBE ASSEMBLY - HOSE TO VALVE	-
86	810509500	1	ADAPTER	-
87	810480100	1	HOSE-HYD*1.00X48 -	-
88	810707200	1	ELBOW 90 DEG	-
89	824283100	1	TUBE - SUPPLY TO REAR VALVE	-
90	810353500	1	ELBOW-90 DEG.	-
91	810433800	2	ELBOW-90 DEG.	-
92	810490900	2	FITTING 1/2 MJIC 3/4 -	-
93	824287600	1	TUBE ASSEMBLY - VALVE TO STEER	-
94	824287700	1	TUBE ASSEMBLY - VALVE TO STEER	-
95	810404300	2	ELBOW 90 DEG	-
96	810406400	2	HOSE ASSEMBLY - TO EMERGENCY PUMP	-
97	810490900	2	FITTING 1/2 MJIC 3/4 -	-
98	810433800	2	ELBOW-90 DEG.	-
99	824287400	1	TUBE ASSEMBLY - SWING REAR	-
100	824287500	1	TUBE ASSEMBLY - SWING REAR	-
101	810404300	2	ELBOW 90 DEG	-
102	810552200	2	HOSE - ACROSS PIVOT SWING	-
103	810328400	2	ADAPTER -	-
104	810824900	2	HOSE - BULKHEAD TO LOADER	-
105	810115800	2	FITTING 3/4 MJIC 3/4	-
106	824291200	1	TUBE #7 - CAB JIB	-
107	824291300	1	TUBE #8 - CAB JIB	-
108	810466400	2	BULKHEAD 90 DEG	-
109	810825000	2	HOSE - TO LOADER	-
110	810490900	2	FITTING 1/2 MJIC 3/4 -	-
111	824291900	1	TUBE #3 - CAB GRAPPLE	-
112	824291700	1	TUBE #4 - CAB GRAPPLE	-
113	810372600	2	ELBOW-90 DEG.	-
114	810824800	2	HOSE - TO LOADER	-
115	810115500	1	FITTING	-
116	824282400	1	TUBE RETURN - VALVE TO TANK	-
117	810433800	1	ELBOW-90 DEG.	-
118	810490900	1	FITTING 1/2 MJIC 3/4 -	-
119	810353500	1	ELBOW-90 DEG.	-
120	-	1	Part 121	-
-	824289300	1	HYDRAULIC HOSE ROUTING	-

HYDRAULIC SYSTEM (2000) G P E K C 2000 HYDRAULIC SYSTEM( 520001 - ) 2000-044/10 [2000-044/10]
