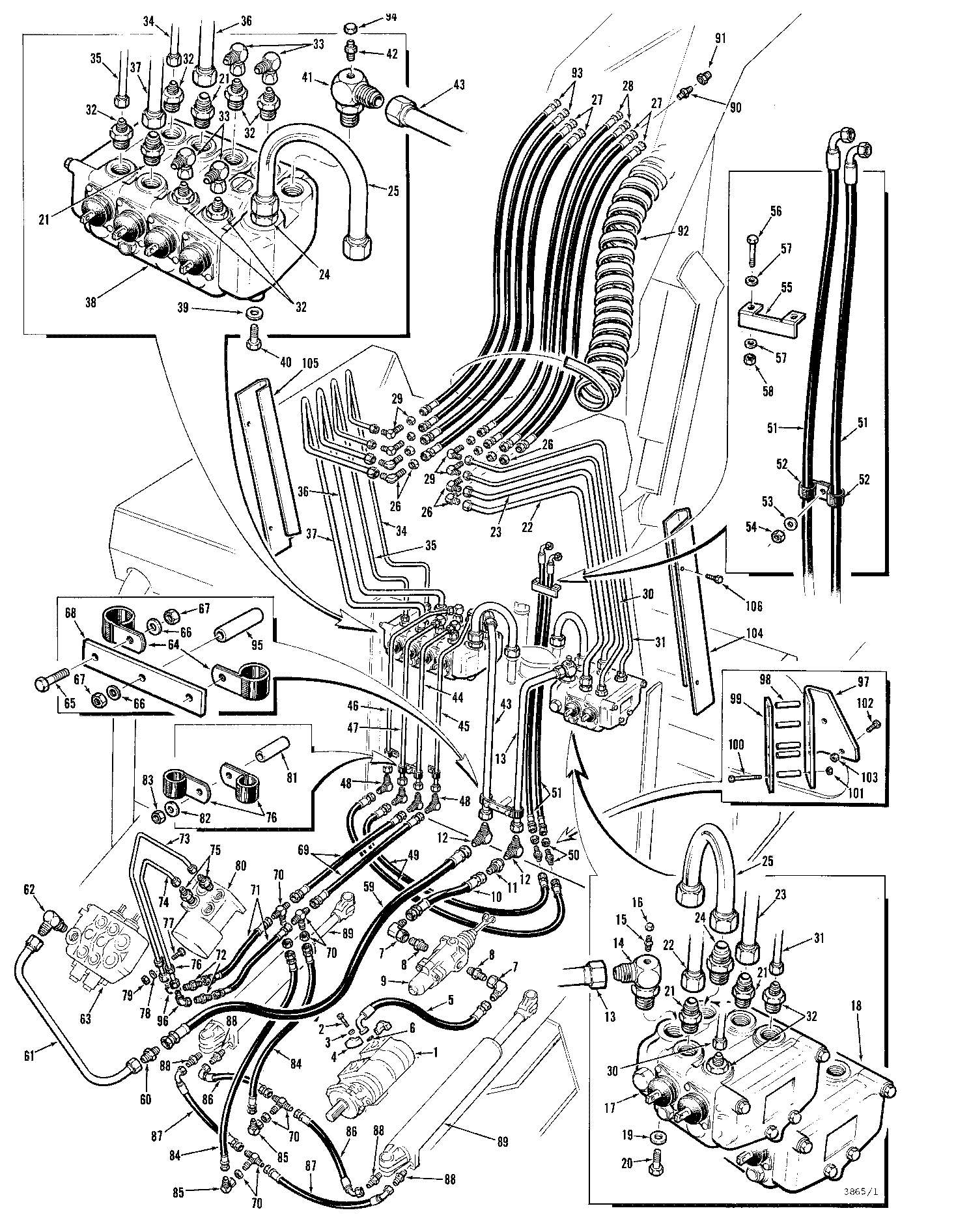

HYDRAULIC SYSTEM (2000) G P E K C 2000 HYD. SYSTEM-LOADER & STEER( 521021 - ) 2000-064/10 [2000-064/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\PUMP (2100)\PUMP (2100) G P E K L 2197 PUMP ASSEMBLY( 521038 - ) 2197-010/10
2	810080200	4	BOLT*3/8-16UNCX1-1/4	-
3	810309800	4	FLAT WASHER 3/8 - HARDENED	-
4	810563900	2	SPLIT FLANGE	-
5	810900700	1	HOSE ASSEMBLY - PUMP TO BRAKE VALVE	-
6	810574200	1	O-RING	-
7	810447100	2	ELBOW-90 DEG. -	-
8	810432200	2	FITTING -	-
9	-	1	Part 9	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\VALVE (2400)\VALVE (2400) G P E K L 2496 POWER BRAKE VALVE( 520001 - ) 2496-011/10
10	810827300	1	HOSE-HYD*0.75X20	-
11	810293100	1	FITTING -	-
12	810707200	2	ELBOW 90 DEG	-
13	824283000	1	TUBE ASSEMBLY - L.H. VALVE	-
14	824490300	1	ELBOW 90 DEG. - REWORK	-
15	810280700	1	FITT*1/8NPTFX7/16-20 -	-
16	810626000	1	CAP -	-
17	-	1	Part 17	-
18	-	1	Part 18	-
19	810011600	3	WASHER*1/2	-
20	810082100	3	BOLT*1/2-13UNCX1	-
21	810115800	4	FITTING 3/4 MJIC 3/4	-
22	824291500	1	TUBE #5 - CAB LIFT	-
23	824291400	1	TUBE #6 - CAB LIFT	-
24	810115500	2	FITTING	-
25	824282400	2	TUBE RETURN - VALVE TO TANK	-
26	810466400	4	BULKHEAD 90 DEG	-
27	810892500	4	HOSE ASSEMBLY - ACROSS PIVOT TO LOADER	-
28	810891300	4	HOSE ASSEMBLY - ACROSS PIVOT TO LOADER	-
29	810372600	4	ELBOW-90 DEG.	-
30	824291800	1	TUBE #1 - CAB ROTATE	-
31	824291600	1	TUBE #2 - CAB ROTATE	-
32	810490900	8	FITTING 1/2 MJIC 3/4 -	-
33	810433800	4	ELBOW-90 DEG.	-
34	824291700	1	TUBE #4 - CAB GRAPPLE	-
35	824291900	1	TUBE #3 - CAB GRAPPLE	-
36	824291300	1	TUBE #8 - CAB JIB	-
37	824291200	1	TUBE #7 - CAB JIB	-
38	-	1	Part 38	-
39	810011600	3	WASHER*1/2	-
40	810082100	3	BOLT*1/2-13UNCX1	-
41	824490300	1	ELBOW 90 DEG. - REWORK	-
42	810280700	1	FITT*1/8NPTFX7/16-20 -	-
43	824283100	1	TUBE - SUPPLY TO REAR VALVE	-
44	824287700	1	TUBE ASSEMBLY - VALVE TO STEER	-
45	824287600	1	TUBE ASSEMBLY - VALVE TO STEER	-
46	824287500	1	TUBE ASSEMBLY - SWING REAR	-
47	824287400	1	TUBE ASSEMBLY - SWING REAR	-
48	810404300	4	ELBOW 90 DEG	-
49	810891100	2	HOSE ASSEMBLY - ACROSS PIVOT	-
50	810328400	2	ADAPTER -	-
51	810891900	2	HOSE ASSEMBLY - BULKHEAD TO LOADER	-
52	810670800	2	CLAMP	-
53	810309800	1	FLAT WASHER 3/8 - HARDENED	-
54	810087500	1	HEX NUT 3/8-16 UNC	-
55	824190900	1	HOSE GUARD	-
56	810089400	2	BOLT*1/4-20UNCX2-1/2	-
57	810043300	4	FLAT WASHER 1/4	-
58	810087100	2	NUT*1/4-20UNC	-
59	810892700	1	HOSE ASSEMBLY - TUBE TO TUBE	-
60	810509500	1	ADAPTER	-
61	824290400	1	TUBE ASSEMBLY - HOSE TO VALVE	-
62	810353500	1	ELBOW-90 DEG.	-
63	-	1	Part 63	-
64	810533500	2	CLAMP*1	-
65	810101900	2	BOLT*5/16-18UNCX3/4	-
66	810768000	3	WASHER*5/16	-
67	810087300	3	NUT*5/16-18UNC	-
68	824409200	1	SPACER	-
69	810890700	2	HOSE ASSEMBLY - SHUTTLE VALVE TO EMERGENCY PUMP	-
70	810787500	4	TEE	-
71	810890700	2	HOSE ASSEMBLY - SHUTTLE VALVE TO EMERGENCY PUMP	-
72	810348700	2	FITTING -	-
73	824290200	1	TUBE - STEER	-
74	824610900	1	TUBE - STEER	-
75	810566300	2	FITTING	-
76	810390100	4	CLAMP*1/2	-
77	810102200	1	HEX HEAD BOLT 5/16-18 UNC X 1-1/2	-
78	810768000	1	WASHER*5/16	-
79	810087300	1	NUT*5/16-18UNC	-
80	-	1	Part 81	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\VALVE (2400)\VALVE (2400) G P E K L 2470 ORBITROL CONTROL ASSEMBLY( 520001 - ) 2470-011/10
81	824125500	1	SPACER	-
82	810768000	1	WASHER*5/16	-
83	810087300	1	NUT*5/16-18UNC	-
84	810890800	2	HOSE-HYD*0.50X42	-
85	810433800	2	ELBOW-90 DEG.	-
86	810891400	2	HOSE ASSEMBLY - TEE TO STEER CYLINDER	-
87	810891500	2	HOSE-HYD*0.5X15	-
88	810070000	4	FITTING 1/2 MJIC 1/2	-
89	-	1	Part 90	-
90	810606100	1	UNION	-
91	810425100	1	REDUCER	-
92	824861500	1	SPIRAL HOSE WRAP	-
93	810892400	2	HOSE ASSEMBLY	-
94	810626000	1	CAP -	-
95	824409100	1	SPACER	-
96	810466600	2	FITTING-45 DEG.	-
97	824287100	1	HOSE SUPPORT	-
98	820457700	5	SPACER	-
99	824280500	1	CLAMP PLATE	-
100	810080900	5	BOLT*3/8-16UNCX3	-
101	810087500	5	HEX NUT 3/8-16 UNC	-
102	810082300	2	BOLT*1/2-13UNCX1-1/2	-
103	810087700	2	NUT*1/2-13UNC	-
104	824289700	1	TUBE GUARD - L.H	-
105	824289800	1	TUBE GUARD - R.H	-
106	810080100	4	HEX HEAD BOLT 3/8-16 UNC X 1	-
-	-	1	Part 64	-

HYDRAULIC SYSTEM (2000) G P E K C 2000 HYD. SYSTEM-LOADER & STEER( 521021 - ) 2000-064/10 [2000-064/10]
