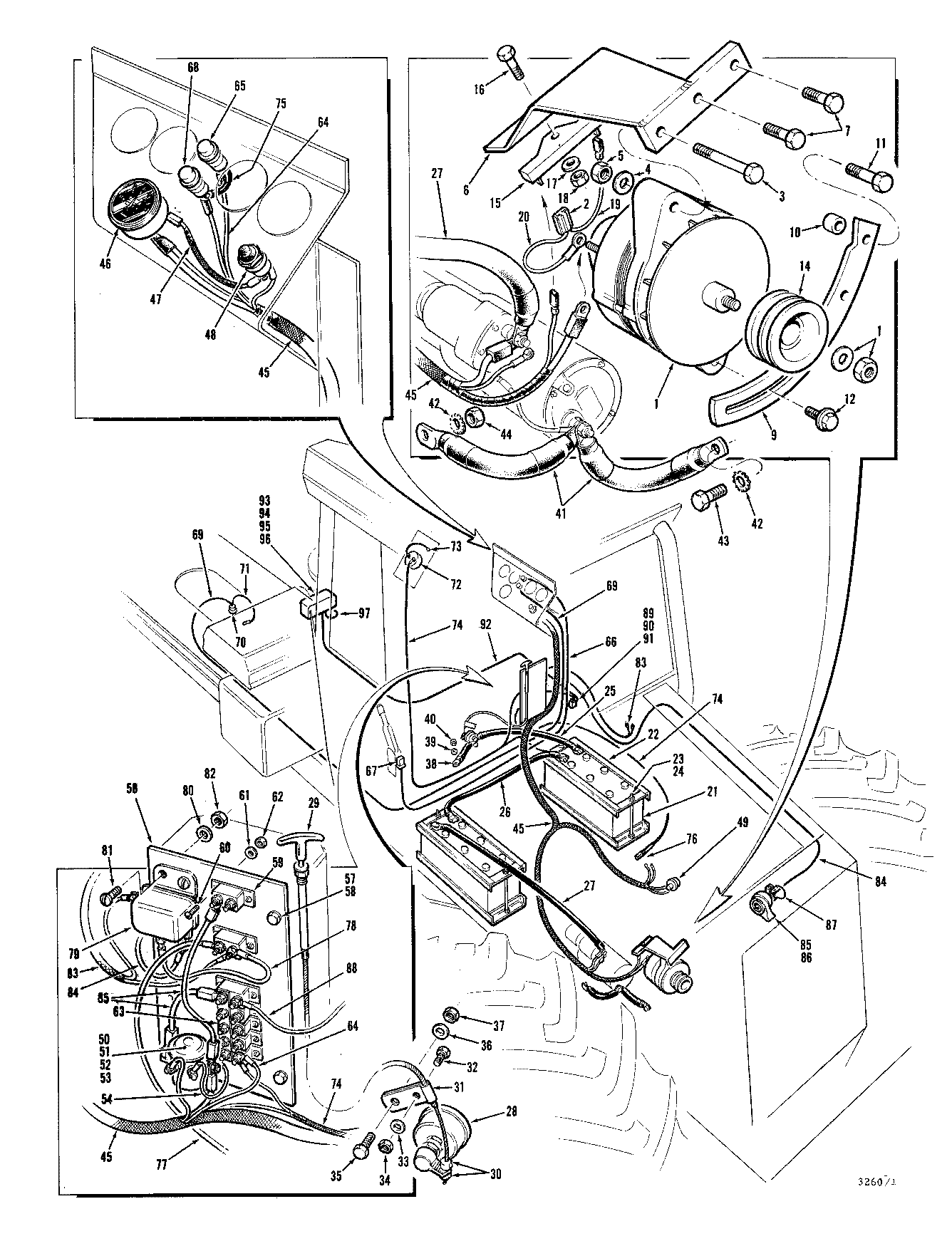

ELECTRICAL SYSTEM 24V (3200) G P E K C 3200 ELECTRICAL SYSTEM( 520001 - ) 3200-010/10 [3200-010/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\ALTERNATOR (3121)\ALTERNATOR (3121) G P E K L 3123 ALTERNATOR - 24 VOLT( 520001 - ) 3123-011/10
2	210760400	1	CONNECTOR	-
3	810080900	1	BOLT*3/8-16UNCX3	-
4	810309800	1	FLAT WASHER 3/8 - HARDENED	-
5	810087500	1	HEX NUT 3/8-16 UNC	-
6	824263500	1	ALTERNATOR MOUNTING WELDMENT	-
7	810080800	2	BOLT*3/8-16UNCX2-3/4	-
8	-	1	Part 8	-
9	810305600	1	ADJUSTING STRAP	-
10	822907800	1	SPACER	-
11	810080700	1	BOLT*3/8-16UNCX2-1/2 -	-
12	810871100	1	ALTERNATOR BRACKET BOLT	-
13	-	1	Part 13	-
14	840181900	1	PULLEY	-
15	210800900	1	RESISTOR	-
16	810102100	1	HEX HEAD BOLT 5/16-18 UNC X 1-1/4	-
17	810768000	1	WASHER*5/16	-
18	810087300	1	NUT*5/16-18UNC	-
19	824223900	1	WIRE ASSEMBLY - ALTERNATOR TO RESISTOR	-
20	824224100	1	WIRE ASSEMBLY - ALTERNATOR TO GROUND	-
21	810765700	2	BATTERY - DRY - 4D	-
22	824225100	4	HOLD DOWN	-
23	824008500	4	ROD - BATTERY HOLD DOWN	-
24	810087700	8	NUT*1/2-13UNC	-
25	824224900	1	BATTERY CABLE - BATTERY TO SWITCH	-
26	824224700	1	BATTERY CABLE - POSITIVE TO NEGATIVE	-
27	824224800	1	BATTERY CABLE - POSITIVE TO STARTER	-
28	810728400	1	MASTER DISCONNECT SWITCH	-
29	810207000	1	CONTROL CABLE	-
30	810103800	2	STOP	-
31	810449000	1	CLAMP	-
32	810075000	1	HEX HEAD BOLT 1/4-28 UNF X 3/4	-
33	810878100	1	WASHER*1/4	-
34	810087200	1	HEX NUT 1/4-28 UNF	-
35	810428100	1	HEX HEAD BOLT 3/8-24 UNF X 1	-
36	810309800	1	FLAT WASHER 3/8 - HARDENED	-
37	810429300	1	HEX NUT 3/8-24 UNF	-
38	824054500	1	BATTERY CABLE - STARTER TO ENGINE	-
39	810181400	1	WASHER - EXT. TOOTH 1/2	-
40	810087700	1	NUT*1/2-13UNC	-
41	824054500	2	BATTERY CABLE - STARTER TO ENGINE	-
42	810176100	2	LOCKWASHER 3/8 - EXTERNAL TOOTH	-
43	810080100	1	HEX HEAD BOLT 3/8-16 UNC X 1	-
44	810087500	1	HEX NUT 3/8-16 UNC	-
45	824225300	1	MAIN WIRING HARNESS	-
46	-	1	Part 46	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\INSTRUMENTS (8100)\INSTRUMENTS (8100) G P E K L 8100 INSTRUMENTS( 520001 - ) 8100-029/10
47	822433400	1	WIRE ASSEMBLY - AMMETER TO BUTTON	-
48	-	1	Part 48	-
49	810061300	1	OIL PRESSURE SWITCH	-
50	206826800	1	SOLENOID	-
51	810088700	2	BOLT*1/4-20UNCX3/4	-
52	810878100	2	WASHER*1/4	-
53	810087100	2	NUT*1/4-20UNC	-
54	823188000	1	WIRE - GROUND	-
55	824223500	2	WIRE ASSEMBLY - SOLENOID TO CIRCUIT BREAKER	-
56	824225200	1	SWITCH PANEL	-
57	810080100	2	HEX HEAD BOLT 3/8-16 UNC X 1	-
58	810309800	2	FLAT WASHER 3/8 - HARDENED	-
59	810662000	7	CIRCUIT BREAKER	-
60	810371500	14	SCREW	-
61	810371600	14	LOCKWASHER #6	-
62	810371700	14	NUT*6-32UNC	-
63	824224400	1	JUNCTION PLATE	-
64	824223400	1	WIRE ASSEMBLY - CIRCUIT BREAKER TO WARNING LIGHT	-
65	-	1	Part 65	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\INSTRUMENTS (8100)\INSTRUMENTS (8100) G P E K L 8100 INSTRUMENTS( 520001 - ) 8100-029/10
66	824224200	1	WIRE ASSEMBLY - WARNING LIGHT TO BRAKE SWITCH	-
67	-	1	Part 67	-
68	-	1	Part 68	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\INSTRUMENTS (8100)\INSTRUMENTS (8100) G P E K L 8100 INSTRUMENTS( 520001 - ) 8100-029/10
69	824223800	1	WIRE ASSEMBLY - WARNING LIGHT TO BRAKE SWITCH	-
70	-	1	Part 70	-
71	824223600	1	WIRE ASSEMBLY - SWITCH TO GROUND	-
72	-	1	Part 72	Refer to Page: FORWARDER\520 LOG LENGTH FORWARDER\520 LOG LENGTH - 230F/610/520 (Timberjack < 2000)\INSTRUMENTS (8100)\INSTRUMENTS (8100) G P E K L 8100 INSTRUMENTS( 520001 - ) 8100-029/10
73	824353900	1	GROUND WIRE - HOURMETER	-
74	824352900	1	WIRE ASSEMBLY - HOURMETER TO CIRCUIT BREAKER (OPTIONAL)	-
75	824223400	1	WIRE ASSEMBLY - CIRCUIT BREAKER TO WARNING LIGHT	-
76	810684200	1	TACHOMETER SENSOR	-
77	824320500	1	WIRE ASSEMBLY - BATTERY TO CIRCUIT BREAKER	-
78	824320400	1	WIRE ASSEMBLY - CIRCUIT BREAKER TO RELAY	-
79	810597400	1	RELAY	-
80	810663300	2	WASHER*8 -	-
81	810866300	4	MACHINE SCREW #8-32 UNC X 1/2	-
82	840868700	2	NUT*#8-32UNC -	-
83	824669600	1	WIRE ASSEMBLY - CIRCUIT BREAKER TO SWITCH	-
84	824669700	1	WIRE ASSEMBLY - RELAY TO HORN	-
85	810597200	1	HORN (OPTIONAL)	-
86	204865700	1	NUT - HORN	-
87	824353900	1	GROUND WIRE - HOURMETER	-
88	824319100	1	WIRE ASSEMBLY - CIRCUIT BREAKER TO SWITCH	-
89	824319400	1	MOUNT - SWITCH	-
90	810765200	1	SWITCH	-
91	810780000	1	NUT - BRAKE LIGHT SWITCH	-
92	824319200	1	WIRE ASSEMBLY - SWITCH TO ALARM	-
93	810842600	1	BACK-UP ALARM (OPTIONAL)	-
94	810571400	2	BOLT*3/8-16UNCX4	-
95	810309800	2	FLAT WASHER 3/8 - HARDENED	-
96	810087500	2	HEX NUT 3/8-16 UNC	-
97	824464500	1	WIRE ASSEMBLY - ALARM GROUND	-
-	824224500	1	WIRE ASSEMBLY - TACHOMETER TO CIRCUIT BREAKER	-
-	-	1	Part 73	-
-	823188000	1	WIRE - GROUND	-

ELECTRICAL SYSTEM 24V (3200) G P E K C 3200 ELECTRICAL SYSTEM( 520001 - ) 3200-010/10 [3200-010/10]
