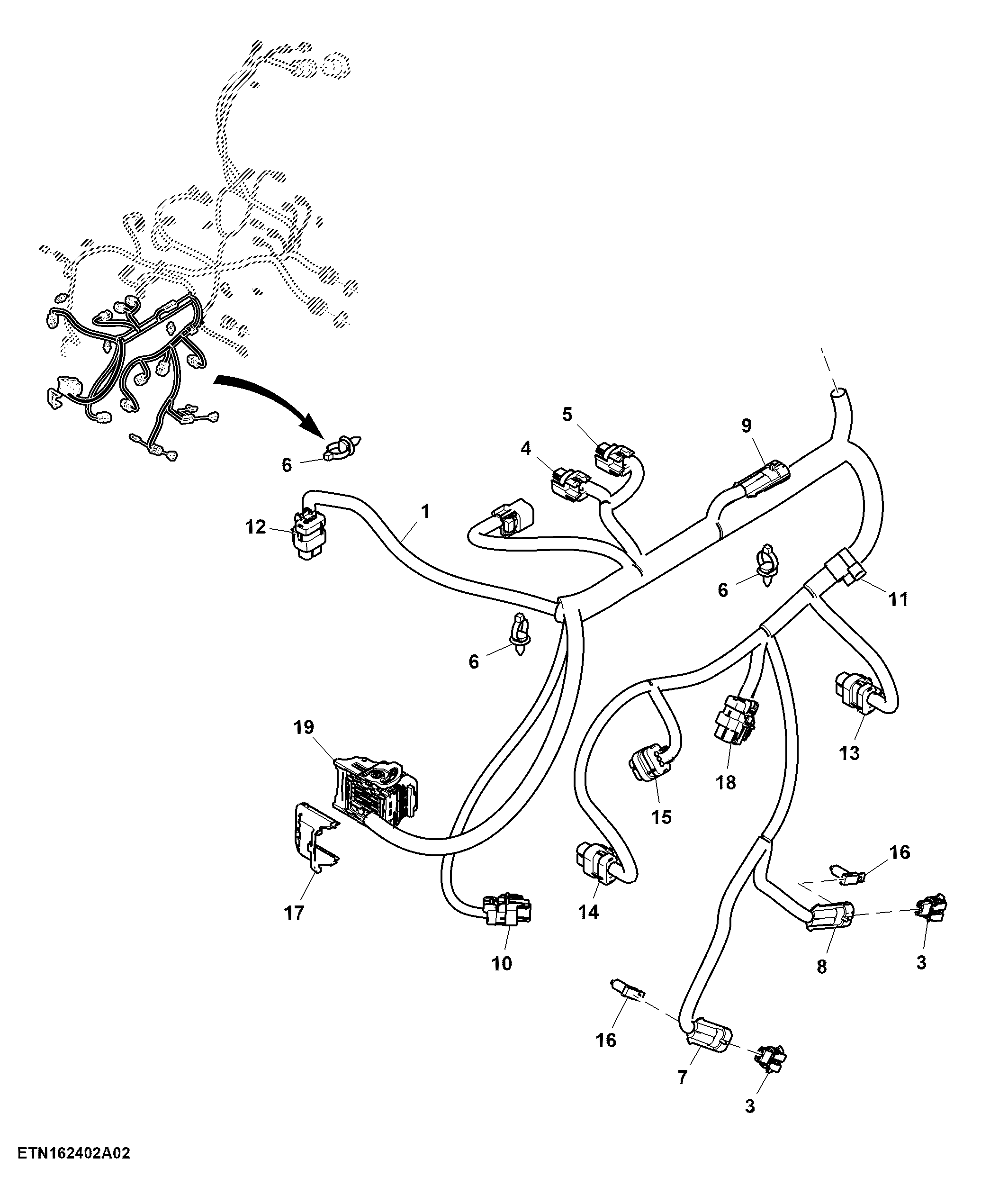

Chassis Wiring Harness, PowrQuad™(2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34689	1	Chassis Wiring Harness	-
2	57M8924	1	Elec. Connector Housing	Clutch 1/3 Select Y210
2	57M8603	2	Elec. Connector Seal	Cavity A, B
2	57M8633	1	Elec. Connector Accessory	-
2	57M8602	2	Elec. Connector Terminal	Cavity A, B
3	57M7328	2	Elec. Connector Housing	-
4	57M9210	1	Elec. Connector Housing	Clutch 1/3 Propotional Y207
4	57M8633	1	Elec. Connector Accessory	-
4	57M8602	2	Elec. Connector Terminal	Cavity A, B
4	57M9223	2	Elec. Connector Seal	Cavity A, B
5	57M9210	1	Elec. Connector Housing	Clutch 2/4 Propotional Y209
5	57M8633	1	Elec. Connector Accessory	-
5	57M8602	2	Elec. Connector Terminal	Cavity A, B
5	57M9223	2	Elec. Connector Seal	Cavity A, B
6	RE258807	16	Tie Band	-
7	57M7985	1	Electrical Connector Assy	Creeper Hi Switch S47
7	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M7252	2	Elec. Connector Terminal	Cavity A, B
7	57M9712	2	Elec. Connector Accessory	-
7	57M7259	2	Elec. Connector Seal	-
8	57M7985	1	Electrical Connector Assy	Creeper Lo Switch S48
8	57M7259	2	Elec. Connector Seal	-
8	57M9712	2	Elec. Connector Accessory	-
8	57M7252	2	Elec. Connector Terminal	Cavity A, B
8	57M9215	2	Elec. Connector Seal	Cavity A, B
9	57M9214	2	Elec. Connector Seal	Cavity A, B
9	57M9712	1	Elec. Connector Accessory	-
9	57M7985	1	Electrical Connector Assy	Park Switch S18
9	57M7495	2	Elec. Connector Terminal	Cavity A, B
10	57M9772	1	Elec. Connector Housing	Fuel Level Sender B01
10	57M9809	2	Elec. Connector Terminal	Cavity 1, 2
11	57M12024	1	Elec. Connector Accessory	-
12	57M9780	1	Elec. Connector Housing	Countershaft Speed Sensor B91
12	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M9780	1	Elec. Connector Housing	Rail Position A-B B723
13	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 3
14	57M9780	1	Elec. Connector Housing	Rail Position C-D B724
14	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 3
15	57M9809	3	Elec. Connector Terminal	Cavity 1, 2, 3
15	57M9780	1	Elec. Connector Housing	Secondary Wheel Speed B50
16	57M8910	2	Clip	-
17	57M10401	1	Elec. Connector Accessory	-
18	57M9817	1	Elec. Connector Housing	Wheel Speed Sensor B10
18	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
19	57M10366	1	Elec. Connector Housing	Rear 2-J3 Connector XA06-J3
19	57M10332	1	Elec. Connector Terminal	Cavity 5
19	57M10331	7	Elec. Connector Terminal	Cavity 6, 18, 29, 30, 41, 42, 53
19	57M10514	13	Elec. Connector Terminal	Cavity 9, 19 - 24, 27, 28, 31, 32, 34, 35
19	57M10330	8	Elec. Connector Terminal	Cavity 10 - 12, 37, 38, 49, 51, 52
19	57M11959	1	Elec. Connector Seal	Cavity 5
19	57M10399	4	Elec. Connector Cavity Plug	Cavity 1 - 4
19	57M10333	19	Elec. Connector Cavity Plug	Cavity 7, 8, 13 - 17, 25, 26, 33, 36, 39, 40, 43 - 48, 50

Chassis Wiring Harness, PowrQuad™(2/3)
