Открытый узел

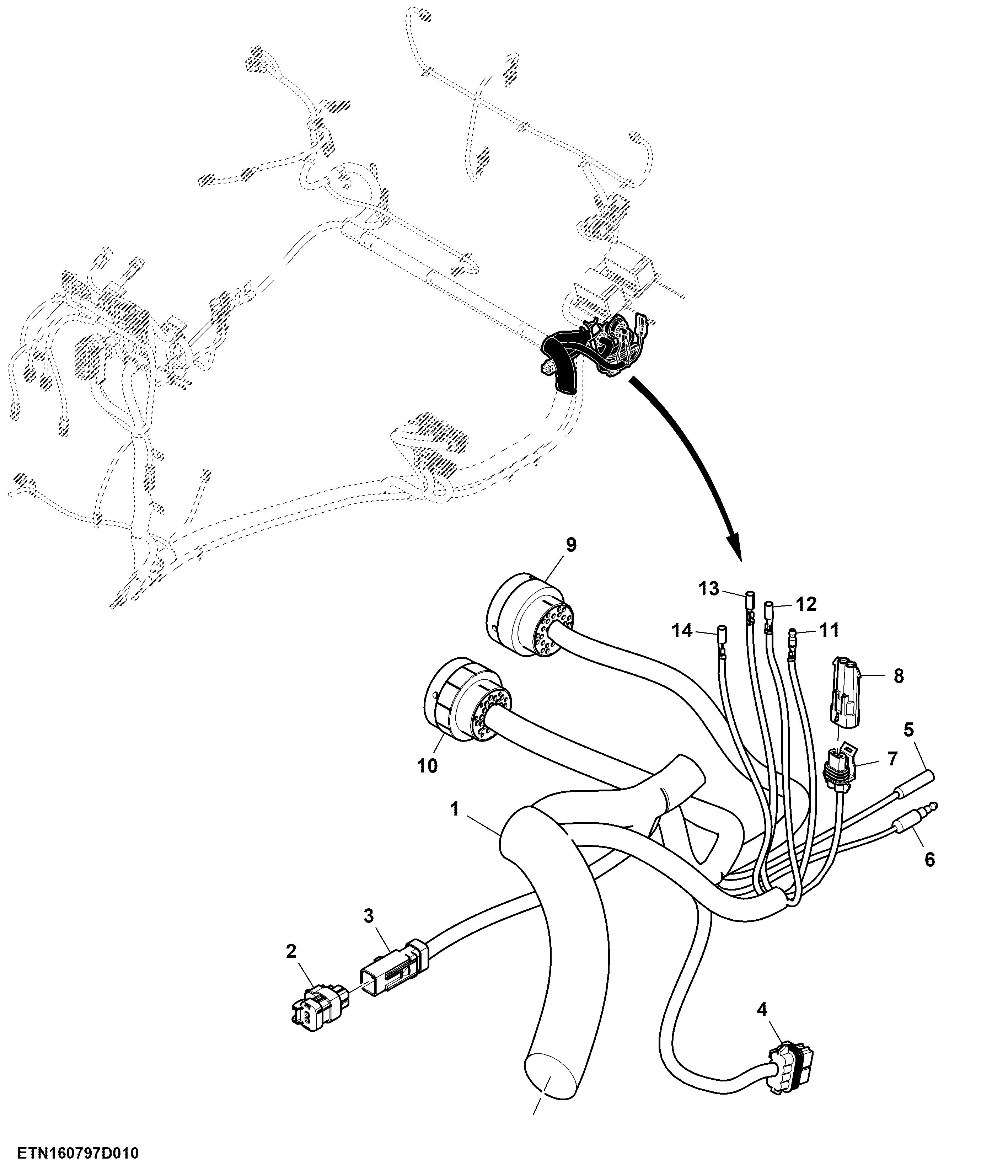

Chassis Wiring Harness, Low Profile (11/11)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34688	1	Wiring Harness	OOS
2	57M11134	1	Elec. Connector Housing	A912-1
3	57M9776	1	Elec. Connector Housing	Chassis Can Terminator A912
3	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7261	1	Elec. Connector Housing	LH Fender Interconnect X058A
4	57M7296	1	Elec. Connector Accessory	-
4	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
4	R104846	2	Elec. Connector Terminal	Cavity G, H
4	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
4	57M9215	2	Elec. Connector Seal	Cavity G, H
5	57M10962	1	Elec. Connector Terminal	Beacon Light Positive H07_L1
6	57M10963	1	Elec. Connector Terminal	Beacon Light Negative H07_L2
7	57M9215	2	Elec. Connector Seal	Cavity A, B
7	R104846	2	Elec. Connector Terminal	Cavity A, B
7	57M7259	2	Elec. Connector Seal	-
7	57M7254	1	Elec. Connector Housing	Worklight Interconnect X052A
7	57M9712	2	Elec. Connector Accessory	-
8	57M7256	1	Elec. Connector Housing	X052A-1
9	57M7751	1	Elec. Connector Housing	OOS To Transmission Harness Interconnect X003A
9	57M8165	10	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 8, 9, 10, 17, 18, 21
9	57M9526	1	Elec. Connector Terminal	Cavity 7
9	R78069	20	Elec. Connector Cavity Plug	Cavity 4, 5, 11, 12, 13, 14, 15, 16, 19, 20, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31
10	57M8569	1	Elec. Connector Terminal	Cavity 2
10	57M7771	5	Elec. Connector Terminal	Cavity 18, 20, 24, 27, 29
10	R78069	8	Elec. Connector Cavity Plug	Cavity 1, 3, 6, 17, 19, 21, 22, 26
10	57M8165	13	Elec. Connector Terminal	Cavity 5, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 25, 28
10	57M10916	1	Elec. Connector Terminal	Cavity 4
10	57M8617	1	Elec. Connector Housing	OOS To Transmission Harness Interconnect X004A
11	57M11708	1	Elec. Connector Terminal	Left Tail/Turn Ground XH13-A
12	57M11707	1	Elec. Connector Terminal	Left Turn Fender XH13-D
13	57M11707	1	Elec. Connector Terminal	Left Tail Light XH13-C
14	57M11707	1	Elec. Connector Terminal	Left Brake Light XH13-B

Chassis Wiring Harness, Low Profile (11/11)

Нет текстового описания
