Открытый узел

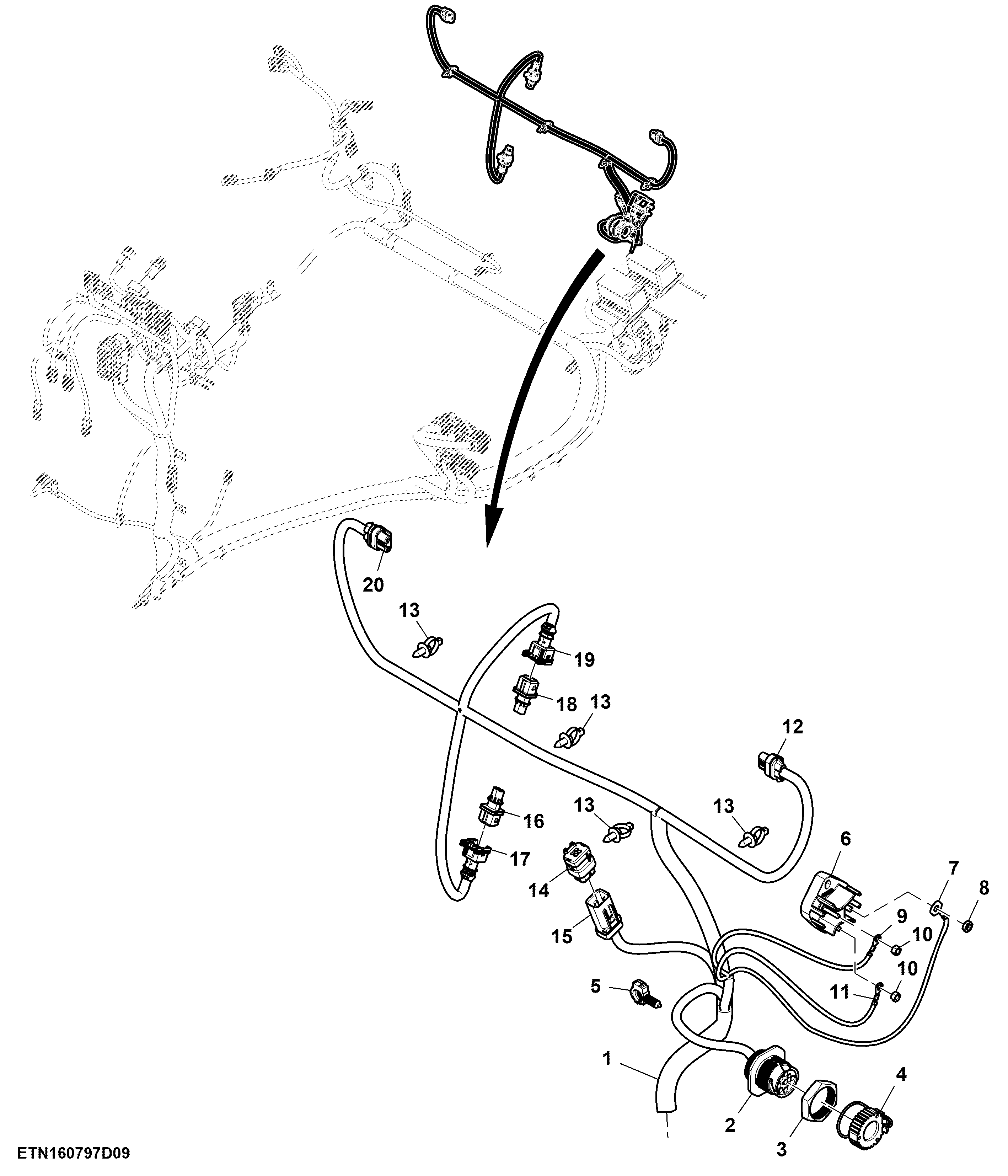

Chassis Wiring Harness, Low Profile (10/11)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34688	1	Wiring Harness	OOS
2	57M9183	1	Elec. Connector Housing	Service Advisor Connector X10
2	57M9181	5	Elec. Connector Cable Seal	Cavity E, F, G, H, J
2	57M9358	1	Elec. Connector Accessory	-
2	57M8164	4	Elec. Connector Terminal	Cavity A, B, C, D
3	57M9182	1	Nut	X10-1
4	RE217864	1	Cap	-
5	57M8903	1	Clip	-
6	RE186986	1	Junction Block	-
7	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power X02_ACC
8	14M7194	1	Nut	M6
9	57M8875	1	Elec. Connector Terminal	Junction Block Battery Power X02_BATT
10	14M7297	2	Nut	M5
11	57M8875	1	Elec. Connector Terminal	Junction Block Ground X02_GND
12	57M8839	1	Elec. Connector Housing	Left Rear Work Lamp E11
12	57M8129	1	Elec. Connector Terminal	-
12	57M7297	2	Elec. Connector Terminal	Cavity A, B
12	57M9219	2	Elec. Connector Seal	Cavity A, B
13	RE258807	4	Tie Band	-
14	57M9817	1	Elec. Connector Housing	X037A-1
15	57M9814	4	Elec. Connector Cavity Plug	-
15	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 4
15	57M9813	1	Elec. Connector Terminal	Cavity 3
15	57M9821	1	Elec. Connector Housing	OOS To JD Link Interconnect X037A
16	57M9577	1	Elec. Connector Housing	Y27-1
17	57M10118	1	Elec. Connector Housing	Fourth SCV Solenoid Retract Y27
17	57M7401	2	Elec. Connector Cavity Plug	-
17	57M8621	2	Elec. Connector Terminal	Cavity 1, 2
17	57M8515	2	Elec. Connector Seal	Cavity 1, 2
18	57M9577	1	Elec. Connector Housing	Y26-1
19	57M10118	1	Elec. Connector Housing	Fourth SCV Solenoid Extend Y26
19	57M7401	2	Elec. Connector Cavity Plug	-
19	57M8621	2	Elec. Connector Terminal	Cavity 1, 2
19	57M8515	2	Elec. Connector Seal	Cavity 1, 2
20	57M8839	1	Elec. Connector Housing	Right Rear Work Lamp E12
20	57M8129	1	Elec. Connector Terminal	-
20	57M7297	2	Elec. Connector Terminal	Cavity A, B
20	57M9219	2	Elec. Connector Seal	Cavity A, B

Chassis Wiring Harness, Low Profile (10/11)

Нет текстового описания
