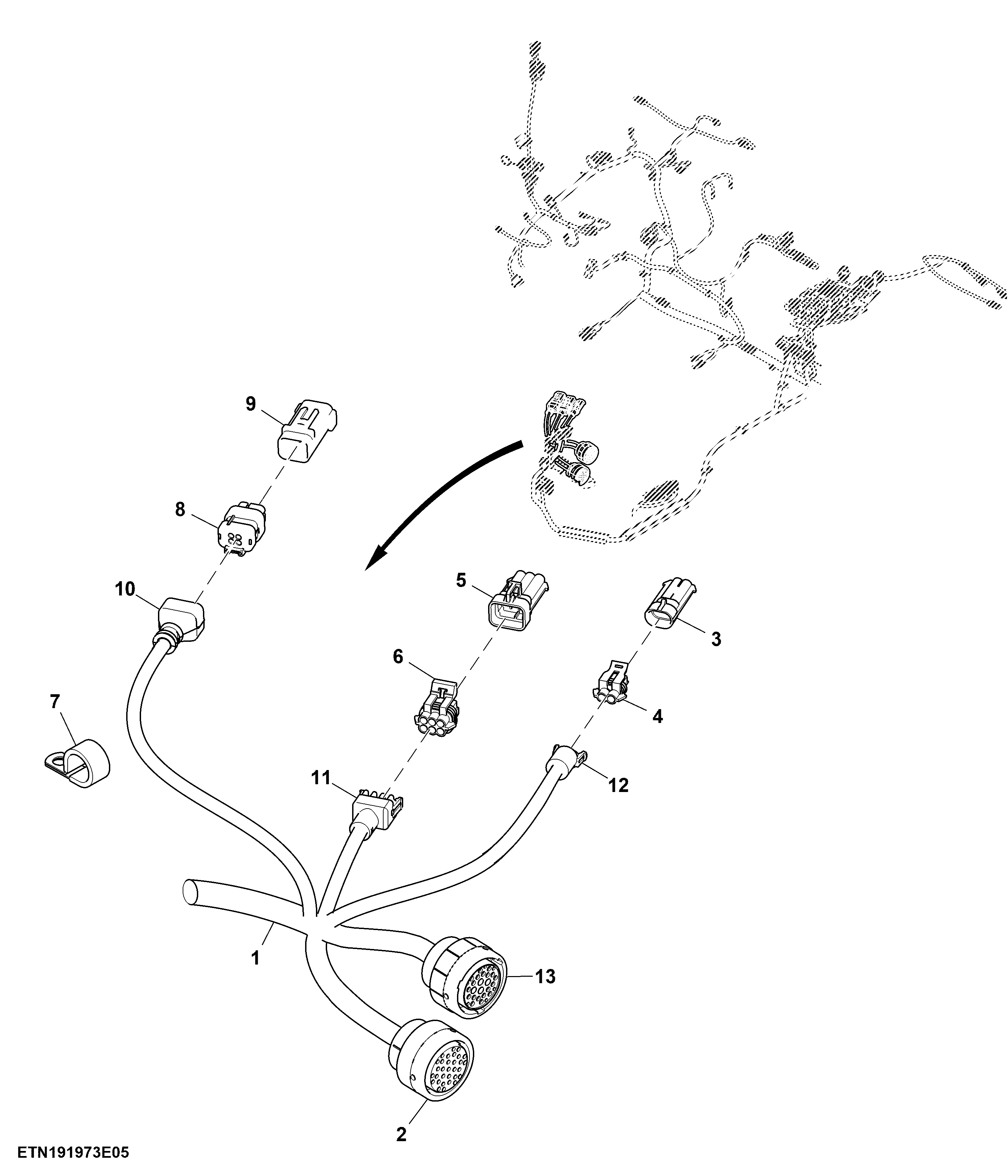

Cab Wiring Harness, PST Transmission, RH Console (5/10)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ39247	1	Cab Wiring Harness	Right Hand Console
1	SJ35187	1	Cab Wiring Harness	ORDER SJ39247
2	57M7751	1	Elec. Connector Housing	Cab to Transmission Interconnect, X003A
2	57M7546	2	Elec. Connector Terminal	Cavity 4, 7
2	57M8165	18	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 8, 9, 10, 14, 15, 16, 17, 18, 21, 22, 23, 24, 25, 28
3	57M7985	1	Electrical Connector Assy	Dust Cap
4	57M7328	1	Elec. Connector Housing	Loader Suspension, X08
4	57M9712	1	Elec. Connector Accessory	-
4	57M7494	2	Elec. Connector Terminal	Cavity A, B
4	57M9214	2	Elec. Connector Seal	Cavity A, B
5	57M7263	1	Elec. Connector Housing	Dust Cap
6	57M9215	4	Elec. Connector Seal	Cavity A, B, D, E
6	R104846	4	Elec. Connector Terminal	Cavity A, B, D, E
6	57M7259	6	Elec. Connector Seal	-
6	57M7260	1	Elec. Connector Housing	Loader Diverter Connection, X07
6	57M7291	1	Electrical Connector Assy	-
7	57M12124	3	Clamp	-
8	57M9817	1	Elec. Connector Housing	Cab to Electro-Hydraulic Mid SCV Interconnect, X320A
8	57M10631	2	Elec. Connector Terminal	Cavity 1, 4
8	57M9809	2	Elec. Connector Terminal	Cavity 2, 3
9	57M11335	1	Elec. Connector Accessory	Dust Cap
10	57M9839	1	Elec. Connector Accessory	Back Shell
11	57M9424	1	Elec.Connect Locking Device	Back Shell
12	57M9556	1	Elec. Connector Accessory	-
13	57M8617	1	Elec. Connector Housing	Cab to Transmission Interconnect, X004A
13	57M7546	6	Elec. Connector Terminal	Cavity 12, 14, 15, 16, 17, 22
13	57M8165	9	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 25, 26
13	57M8569	2	Elec. Connector Terminal	Cavity 2, 4
13	57M9225	1	Elec. Connector Terminal	Cavity 23
13	57M9526	1	Elec. Connector Terminal	Cavity 13
