Cab Wiring Harness, PST Transmission, RH Console (3/10)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ39247	1	Cab Wiring Harness	Right Hand Console
1	SJ35187	1	Cab Wiring Harness	ORDER SJ39247
2	57M9424	1	Elec.Connect Locking Device	-
3	57M11344	1	Elec. Connector Housing	-
4	57M7788	1	Electrical Connector Assy	Front PTO Switch, S29
4	57M7727	1	Electrical Connector Assy	-
4	57M7500	3	Elec. Connector Terminal	Cavity A, B, C
5	R78054	1	Electrical Connector Assy	Convenience Outlet 2, X036A
5	R78061	3	Elec. Connector Terminal	-
5	57M9218	3	Elec. Connector Seal	-
6	57M7263	1	Elec. Connector Housing	SFA Suspension Mode Switch, S49
6	57M7291	1	Electrical Connector Assy	-
6	R104919	5	Elec. Connector Terminal	Cavity A, B, C, E, F
6	57M9215	5	Elec. Connector Seal	Cavity A, B, C, E, F
7	57M7257	1	Elec. Connector Housing	SFA Suspension Raise/Lower, S50
7	57M7290	1	Elec. Connector Accessory	-
7	R104919	3	Elec. Connector Terminal	-
7	57M9215	3	Elec. Connector Seal	-
8	57M8515	8	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 10
8	57M8071	1	Elec. Connector Housing	CQT Shifter 1, XS72-1
8	57M8621	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10
9	57M7264	1	Elec. Connector Housing	Hitch Quick Raiser/Lower Assembly, A08
9	57M7283	1	Elec.Connect Locking Device	-
9	57M7495	6	Elec. Connector Terminal	Cavity A, B, D, E, F, G
9	57M9214	6	Elec. Connector Seal	Cavity A, B, D, E, F, G
10	RE258807	12	Tie Band	-
11	57M9214	3	Elec. Connector Seal	-
11	57M7495	3	Elec. Connector Terminal	-
11	57M7290	1	Elec. Connector Accessory	-
11	57M7257	1	Elec. Connector Housing	SCV IV Switch, S37
12	57M7263	1	Elec. Connector Housing	Rear Wiper Switch, S11
12	57M7291	1	Electrical Connector Assy	-
12	R104919	3	Elec. Connector Terminal	Cavity B, C, E
12	57M9215	3	Elec. Connector Seal	Cavity B, C, E
13	57M7065	1	Elec. Connector Housing	Power Outlet, X06
13	57M7172	2	Elec. Connector Terminal	-
14	57M9214	3	Elec. Connector Seal	-
14	57M7494	3	Elec. Connector Terminal	-
14	57M7290	2	Elec. Connector Accessory	-
14	57M7259	3	Elec. Connector Seal	-
14	57M7687	1	Elec. Connector Housing	Remote PTO Fender Switch, S38, RH
14	57M11344	1	Elec. Connector Housing	-
15	57M7349	1	Elec. Connector Accessory	Tail Brake Turn Lamp, H02, RH
15	57M7347	1	Elec. Connector Accessory	-
15	R104846	4	Elec. Connector Terminal	-
15	57M9215	4	Elec. Connector Seal	-
16	57M9214	6	Elec. Connector Seal	-
16	57M7494	6	Elec. Connector Terminal	-
16	57M9424	1	Elec.Connect Locking Device	-
16	57M7260	1	Elec. Connector Housing	External Raise/Lower Switch, S27, RH
17	R78054	1	Electrical Connector Assy	Convenience Outlet 1, X035A
17	R78061	3	Elec. Connector Terminal	-
17	57M9218	3	Elec. Connector Seal	-
18	57M8072	1	Elec. Connector Housing	CQT Shifter 2, XS72-2
18	57M8083	1	Elec. Connector Accessory	-
18	57M8621	14	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16
18	57M8515	14	Elec. Connector Seal	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16
19	57M7291	1	Electrical Connector Assy	-
19	57M9215	4	Elec. Connector Seal	Cavity C, D, E, F
19	R104846	4	Elec. Connector Terminal	Cavity C, D, E, F
19	57M7494	1	Elec. Connector Terminal	Cavity B
19	57M7260	1	Elec. Connector Housing	Interconnect, X022A
19	57M9214	1	Elec. Connector Seal	Cavity B
20	57M7789	1	Elec. Connector Housing	Rear PTO Switch, S02
20	57M7724	2	Electrical Connector Assy	-
20	57M8293	3	Elec. Connector Terminal	Cavity A, B, C
21	57M7551	4	Elec. Connector Terminal	-
21	57M7718	1	Electrical Connector Assy	-
21	57M7712	1	Electrical Connector Assy	Engine Speed Module, A07
22	57M8802	1	Elec. Connector Housing	ISB Switch Module, A46
22	57M8783	1	Elec. Connector Housing	-
22	57M7551	7	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 7, 8
23	57M8802	1	Elec. Connector Housing	Navigation Module, A65
23	57M8783	1	Elec. Connector Housing	-
23	57M7551	8	Elec. Connector Terminal	-
24	R44302	1	Tie Band	-
25	SU62813	1	Clip	-

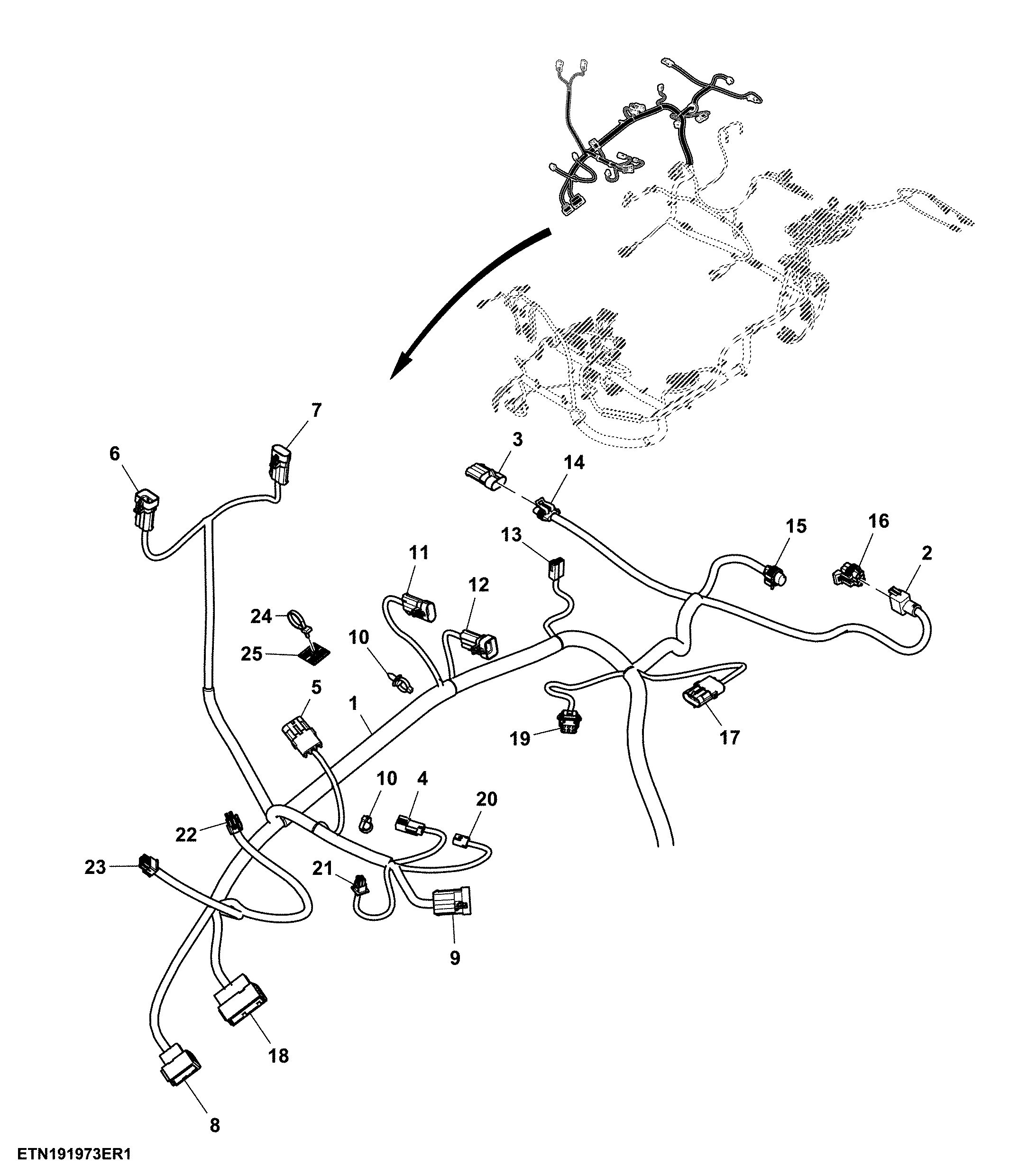

Cab Wiring Harness, PST Transmission, RH Console (3/10)
