Cab Wiring Harness, PST Transmission, RH Console (1/10)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ35200	1	Cab Wiring Harness	Front Control Support
2	R250370	1	Elec. Connector Housing	Key Switch, S01
2	57M7511	1	Elec. Connector Terminal	Cavity 6
2	57M9153	5	Elec.Connect Locking Device	-
2	Z70804	4	Elec. Connector Terminal	Cavity 1, 3, 4, 5
3	RE258807	4	Tie Band	-
4	57M7260	1	Elec. Connector Housing	Clutch Pot A / B, B13
4	57M7291	1	Electrical Connector Assy	-
4	57M7494	4	Elec. Connector Terminal	Cavity C, D, E, F
4	57M9214	4	Elec. Connector Seal	Cavity C, D, E, F
4	57M7259	2	Elec. Connector Seal	Cavity A, B
5	57M11650	1	Elec. Connector Housing	Front Wiper Motor, M05
5	57M8602	5	Elec. Connector Terminal	Cavity A, B, C, D, E
5	57M8603	5	Elec. Connector Seal	Cavity A, B, C, D, E
6	57M9786	1	Elec. Connector Housing	Hand Wheel Position Sensor, B237
6	57M9809	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
7	RE12364	1	Electrical Connector Assy	FCS to Cab Interconnect, X032B
7	R78060	3	Elec. Connector Terminal	Cavity A, B, C
7	57M9218	3	Elec. Connector Seal	Cavity A, B, C
8	57M11346	1	Elec. Connector Housing	FCS to Cab Interconnect, X031B
8	57M10113	9	Elec. Connector Terminal	Cavity A1, A12, B1, B2, B3, B4, B5, B6, B10
8	57M10111	6	Elec. Connector Terminal	Cavity A7, A8, A9, B7, B8, B9
9	57M12129	2	Clamp	-
10	CB01483609	4	Tie Band	-
11	T334263	1	Clamp	-
12	57M8871	1	Elec. Connector Terminal	Cavity 1
12	57M8873	1	Elec. Connector Terminal	Start Relay Out, XK18-2
13	57M10497	1	Elec. Connector Housing	Start Relay Signal, XK18-1
13	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
13	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
14	57M8873	1	Elec. Connector Terminal	Start Relay Batt, XK18-3
14	57M8871	1	Elec. Connector Terminal	Cavity 1
15	57M7256	1	Elec. Connector Housing	Audible Alarm, H18
15	57M9712	1	Elec. Connector Accessory	-
15	R104919	2	Elec. Connector Terminal	Cavity A, B
15	57M9215	2	Elec. Connector Seal	Cavity A, B
16	R78061	3	Elec. Connector Terminal	Cavity A, B, C
16	57M9218	3	Elec. Connector Seal	Cavity A, B, C
16	R78054	1	Electrical Connector Assy	Convenience Outlet 3, X038A
17	57M7716	1	Electrical Connector Assy	Primary Display, A17
17	57M7721	1	Electrical Connector Assy	-
17	57M7551	4	Elec. Connector Terminal	Cavity 3, 5, 8, 9
17	57M7550	1	Elec. Connector Terminal	Cavity 4
18	57M9776	1	Elec. Connector Housing	Control Area Network Terminator, A912
18	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
19	57M11134	1	Elec. Connector Housing	Control Area Network Terminator, A912-1
20	57M11336	1	Elec. Connector Accessory	Hand Wheel Position Sensor
21	57M8910	1	Clip	-
22	57M12128	2	Clamp	-

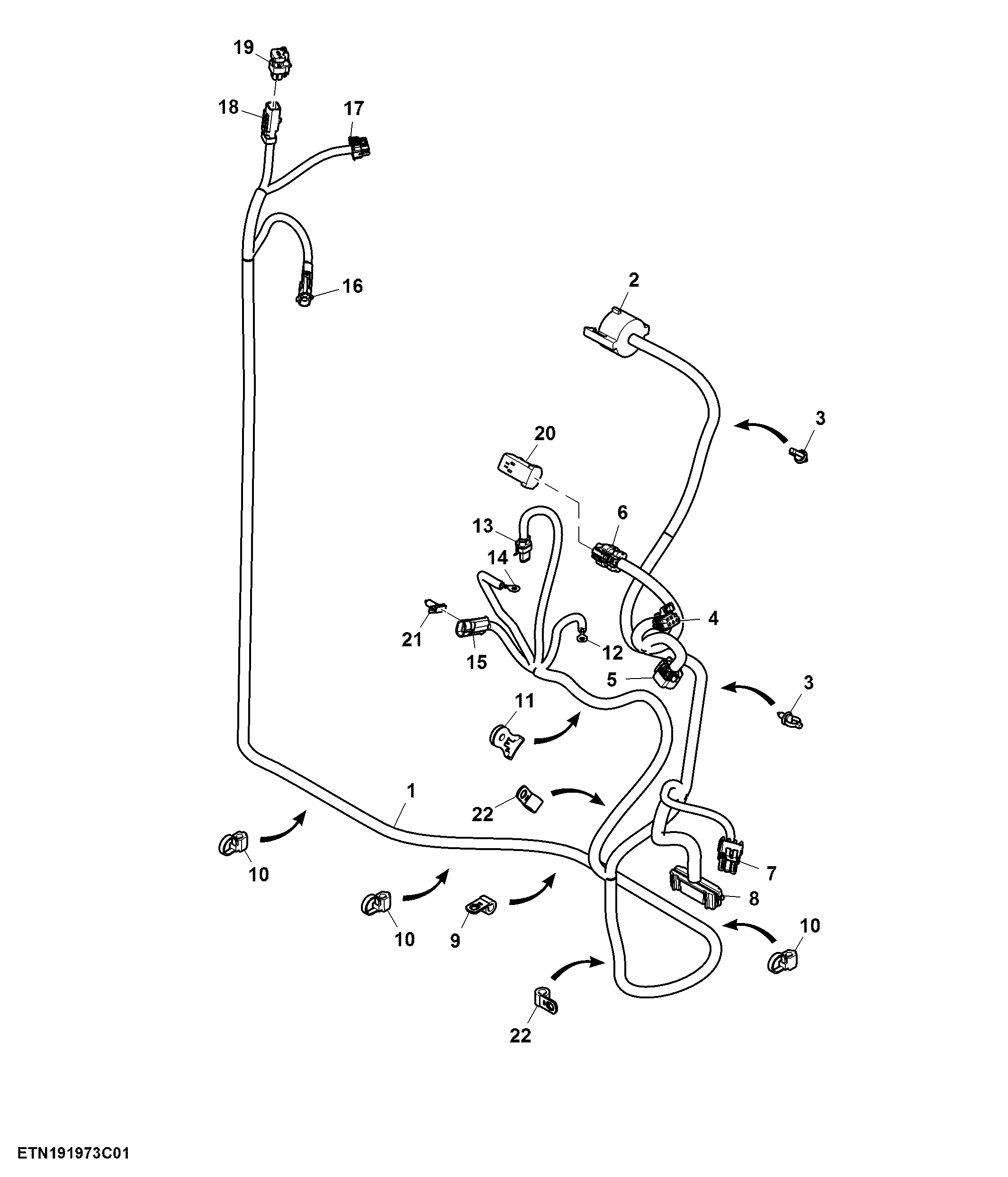

Cab Wiring Harness, PST Transmission, RH Console (1/10)
